Band - Overdrive

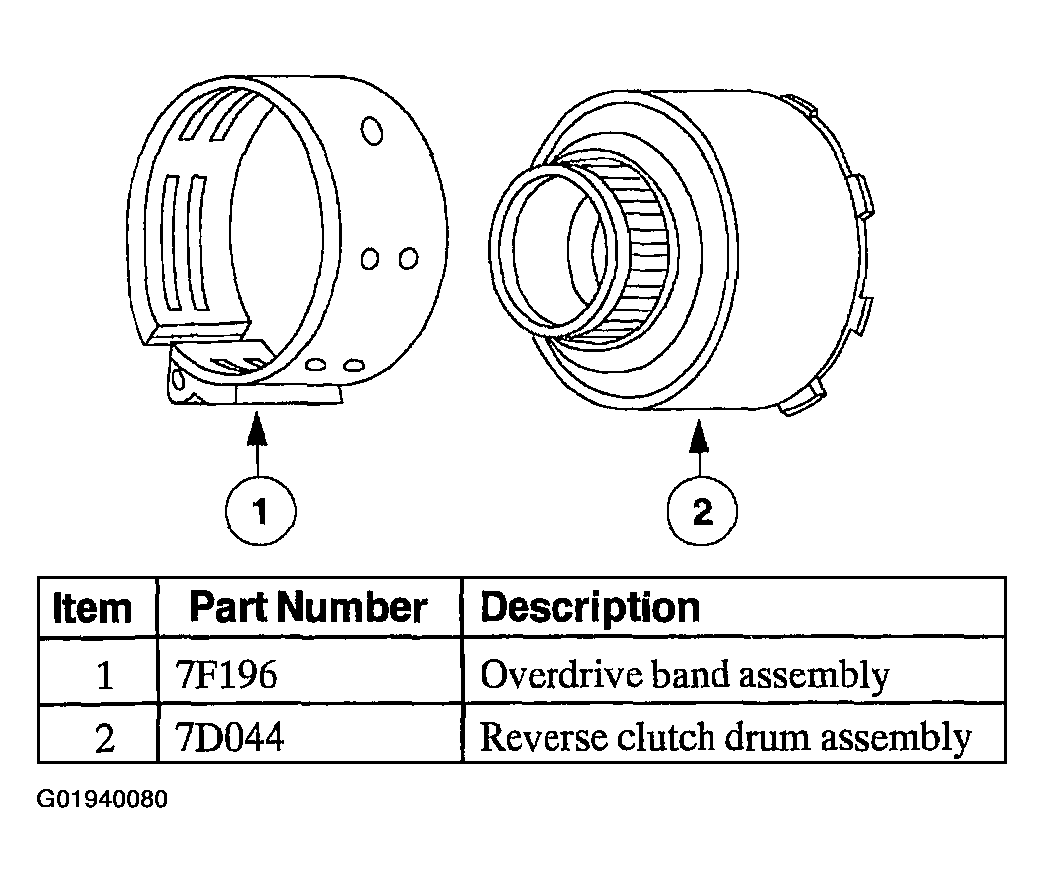

Fig 1: Identifying Band - Overdrive
G01940080Courtesy of FORD MOTOR CO.

The overdrive band holds the reverse clutch drum stationary in fourth gear and manual 2. This action causes the reverse sun gear to be held in these ranges.
