Clutch - Direct

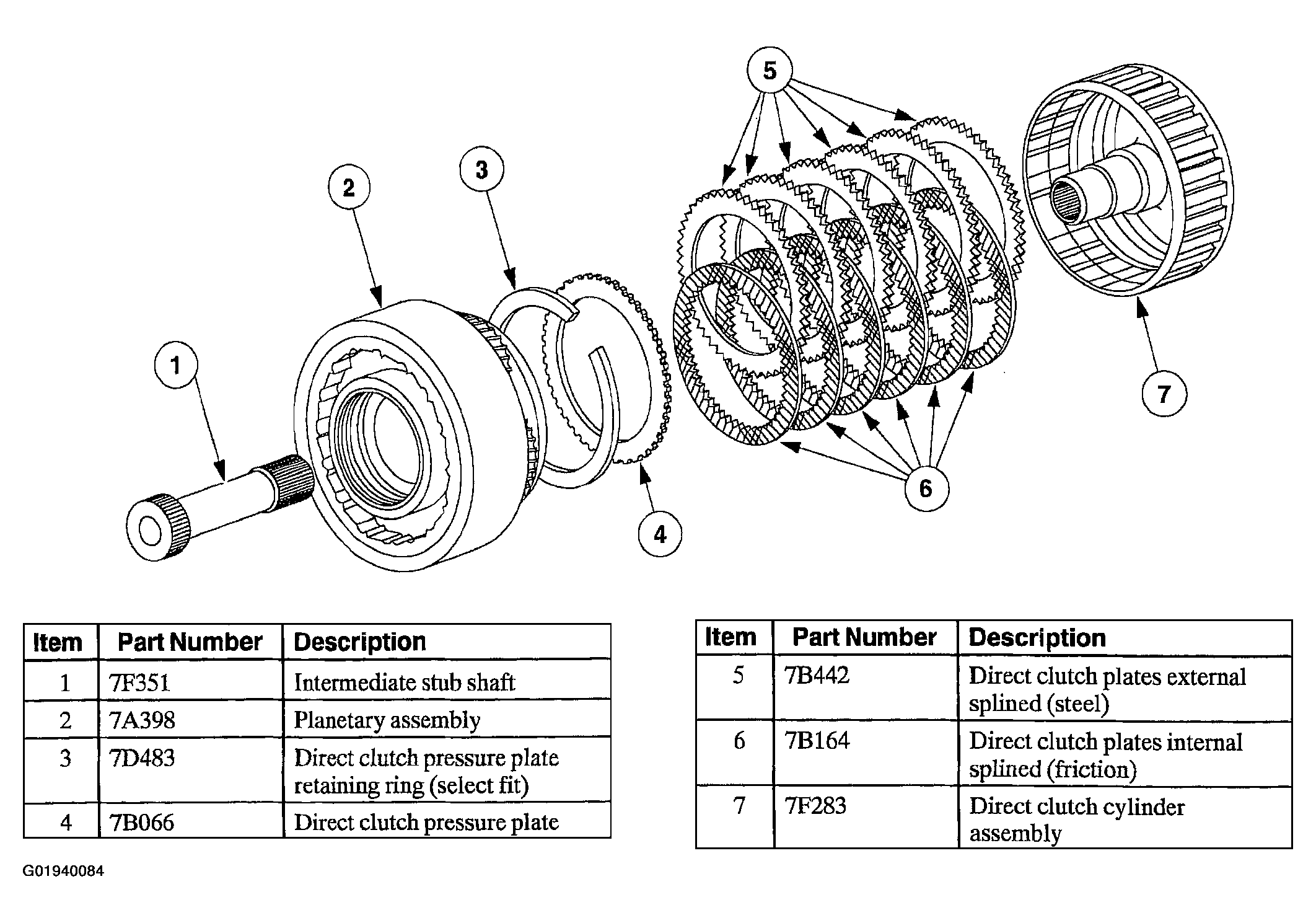

Fig 1: Identifying Clutch - Direct
G01940084Courtesy of FORD MOTOR CO.

The direct clutch couples the input shaft to the planet carrier through the stub shaft in third and fourth gears.
