Clutch - Reverse
Clutch - Reverse

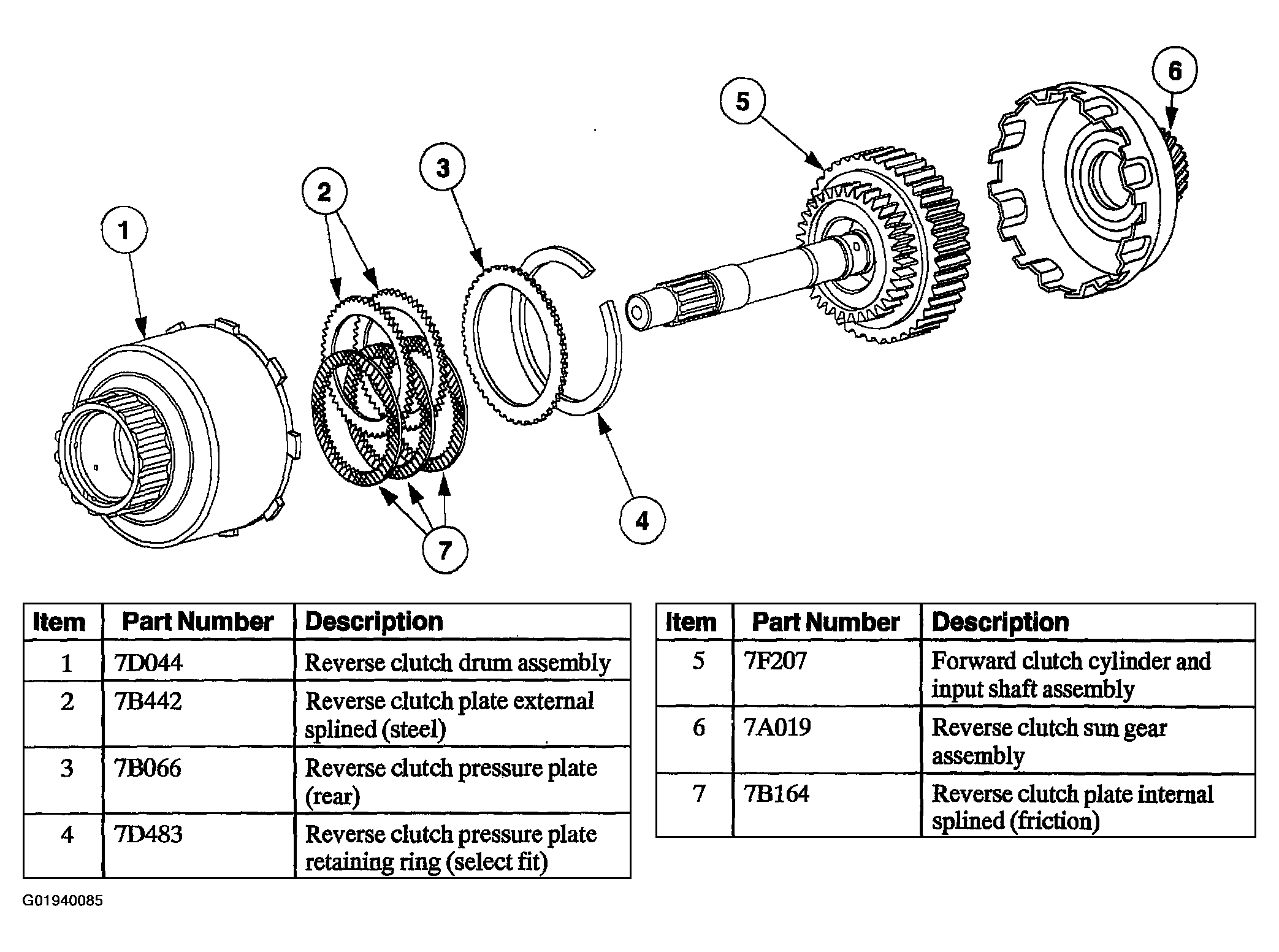

Fig 1: Identifying Clutch - Reverse
Courtesy of FORD MOTOR CO.
The reverse clutch couples the input shaft to the reverse sun gear, applied in reverse range only.
Courtesy of FORD MOTOR CO.
