One-Way Clutch - Intermediate

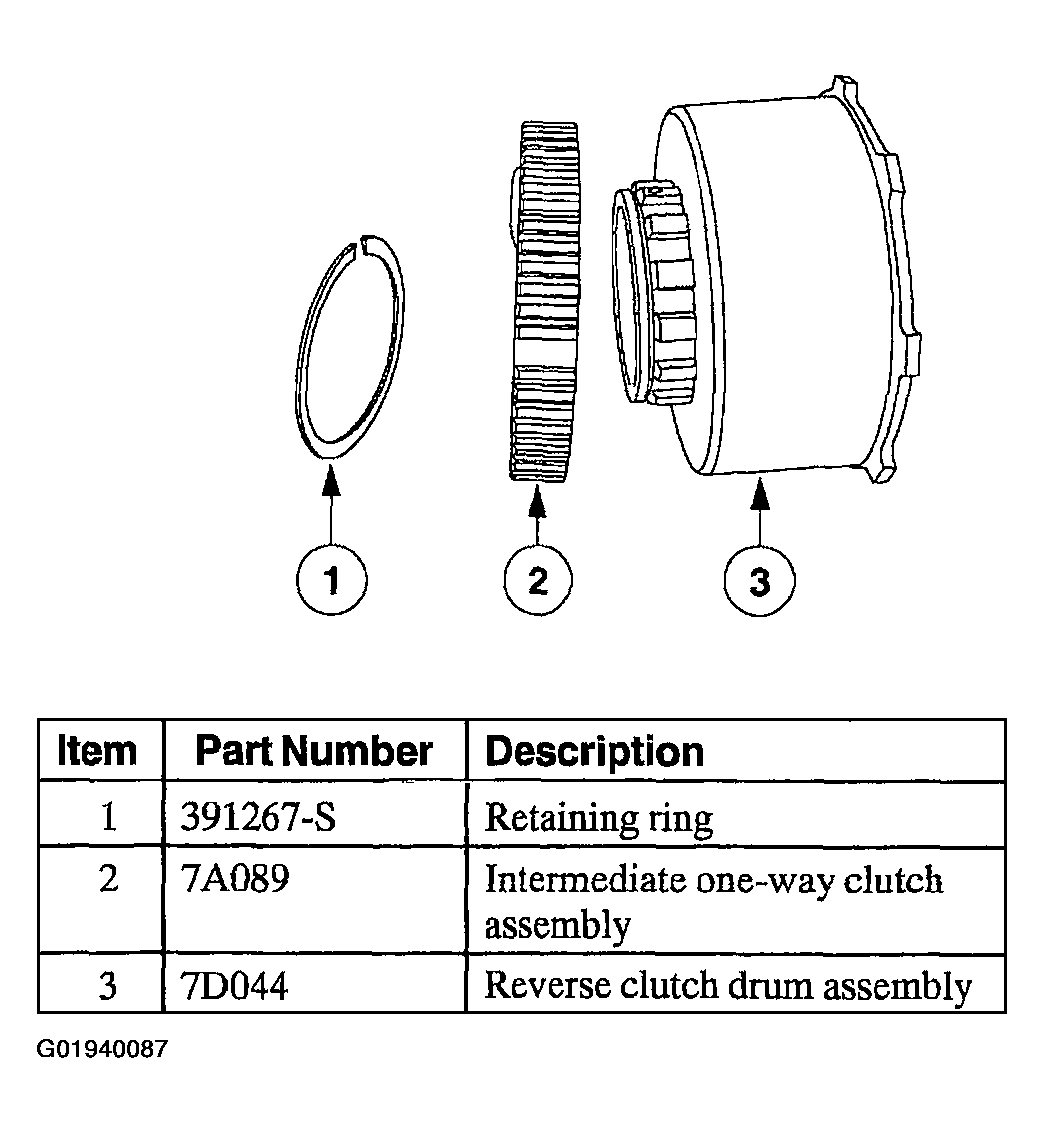

Fig 1: Identifying One-Way Clutch - Intermediate
G01940087Courtesy of FORD MOTOR CO.

The intermediate one-way clutch works with the intermediate friction clutch to hold the reverse clutch drum and reverse sun gear stationary in second gear during acceleration. The intermediate one-way clutch freewheels in third gear and during coasting in second gear, D and D ranges.
