Hydraulic System: Accumulators

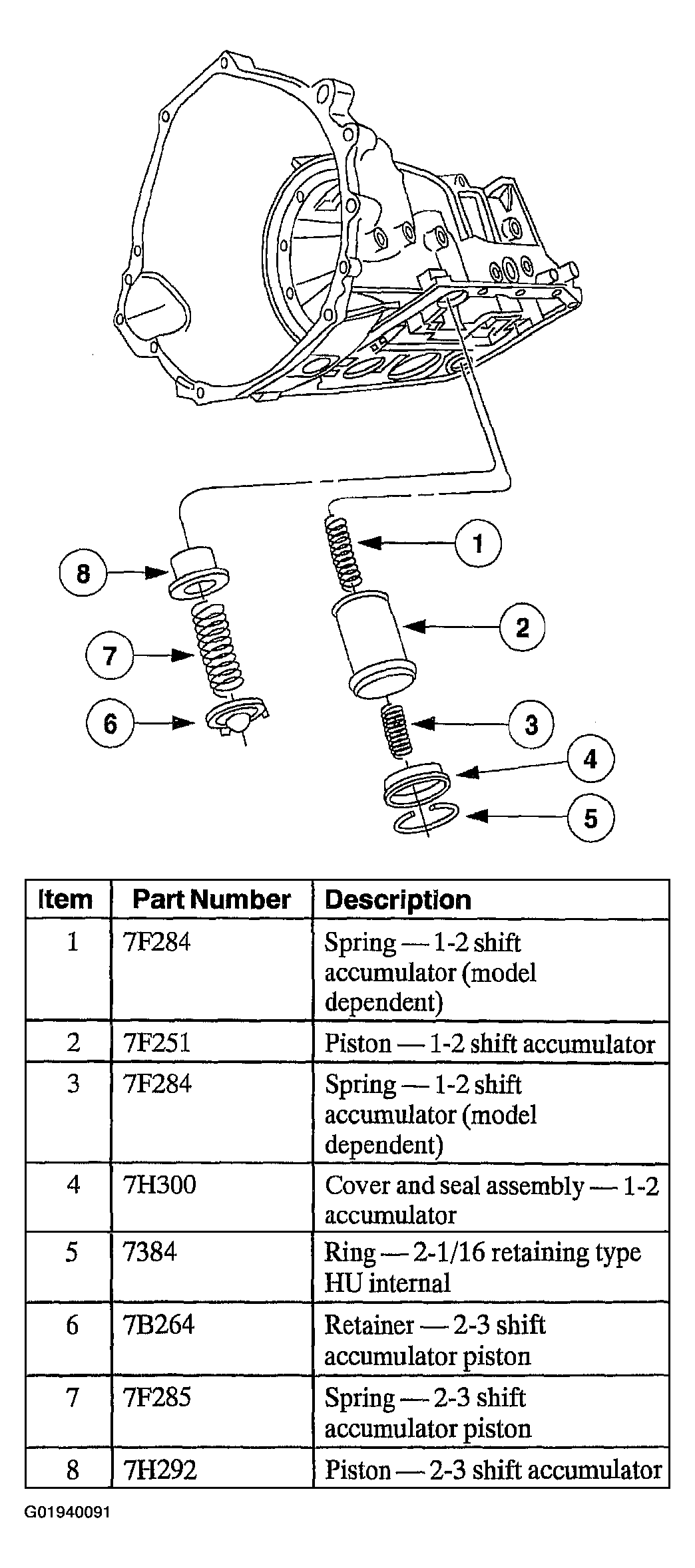

The transmission uses two accumulators:
- 1-2 Accumulator - The 1-2 accumulator is used to soften the 1-2 shift by absorbing some of the pressure directed to the intermediate clutch. Constant line pressure is applied to the middle section of the 1-2 accumulator piston, opposing the intermediate clutch pressure, until the pressure is high enough to overcome line pressure. The top of the piston is exhausted to the sump.
- 2-3 Accumulator - The 2-3 accumulator is used to soften the 2-3 shift by absorbing some of the direct clutch pressure. Forward clutch pressure is applied to the top side of the 2-3 accumulator piston, holding the piston down until clutch pressure is high enough to overcome it. The middle section of the piston is exhausted to the sump.
