Crown Victoria Base, 4.6 9
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
Diagnosis & Testing
>>
Road Testing Vehicle
>>
Shift Point Road Test
>>
4R70W Shift Speeds Axle Ratio 2.73:1
4R70W Shift Speeds Axle Ratio 2.73:1

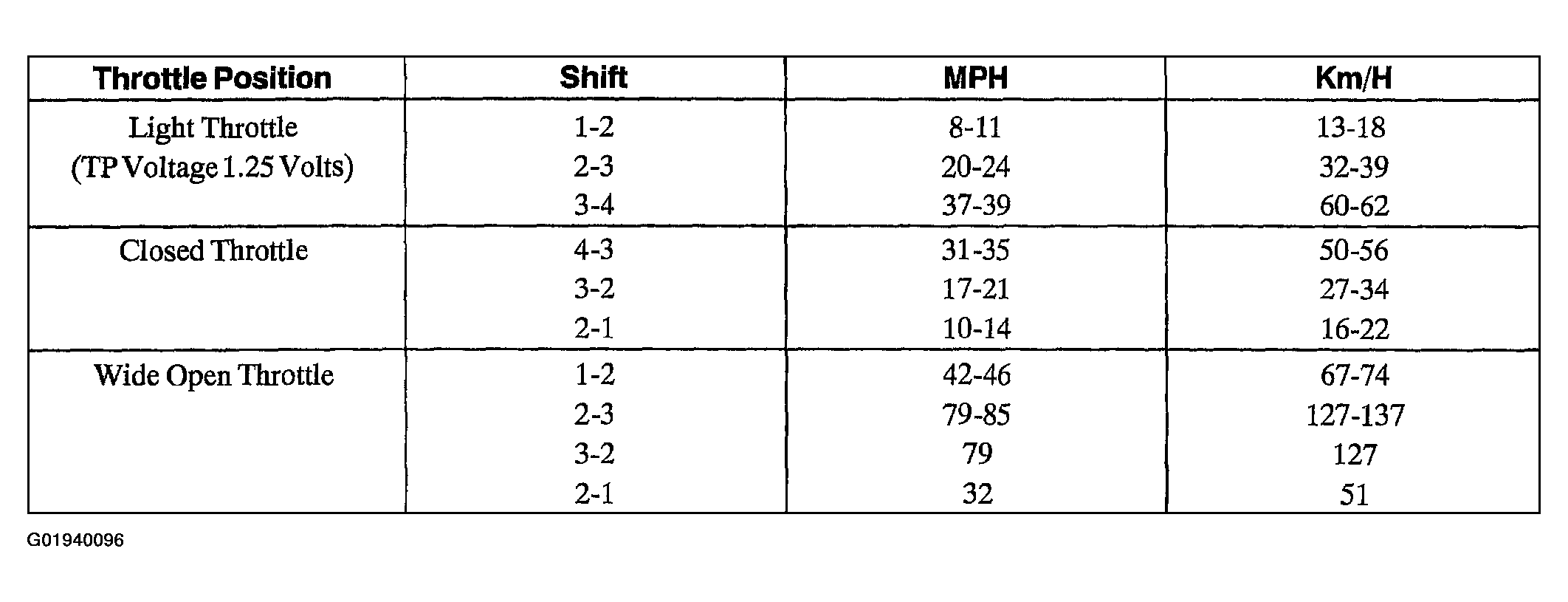

Fig 1: Identifying 4R70W Shift Speeds Axle Ratio 2.73:1
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
