Shift Solenoids Pre-Diagnosis

Use the following shift solenoid operation information when carrying out Pinpoint Test A.

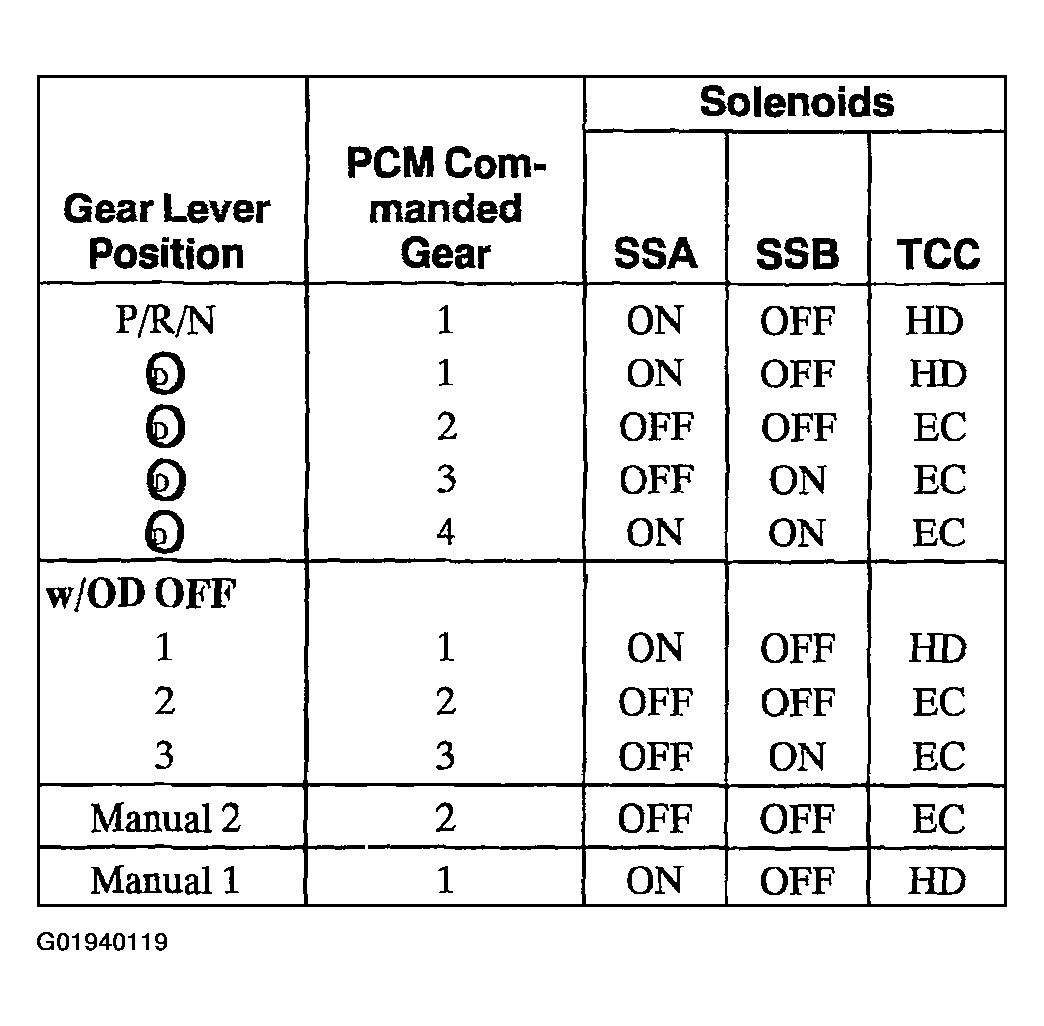

Fig 1: Solenoid Operation Chart (1 OF 2)

Courtesy of FORD MOTOR CO.

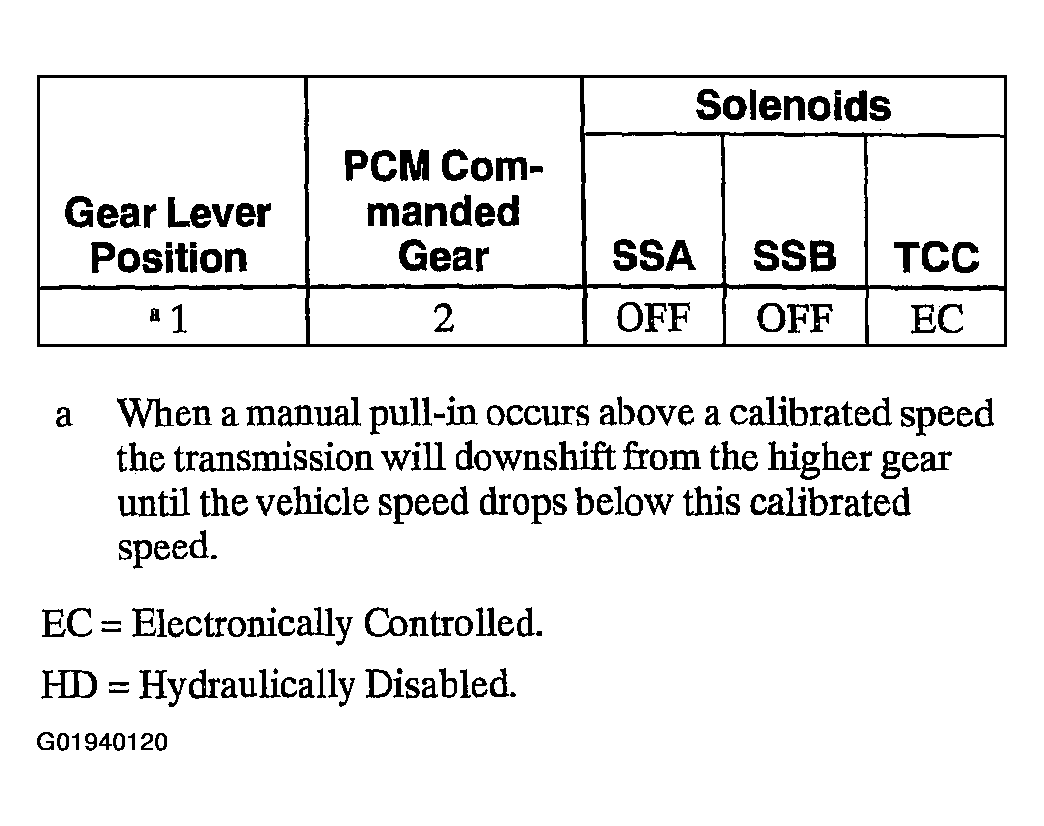

Fig 2: Solenoid Operation Chart (2 OF 2)

Courtesy of FORD MOTOR CO.
