Diagnosis By Symptom: Notes

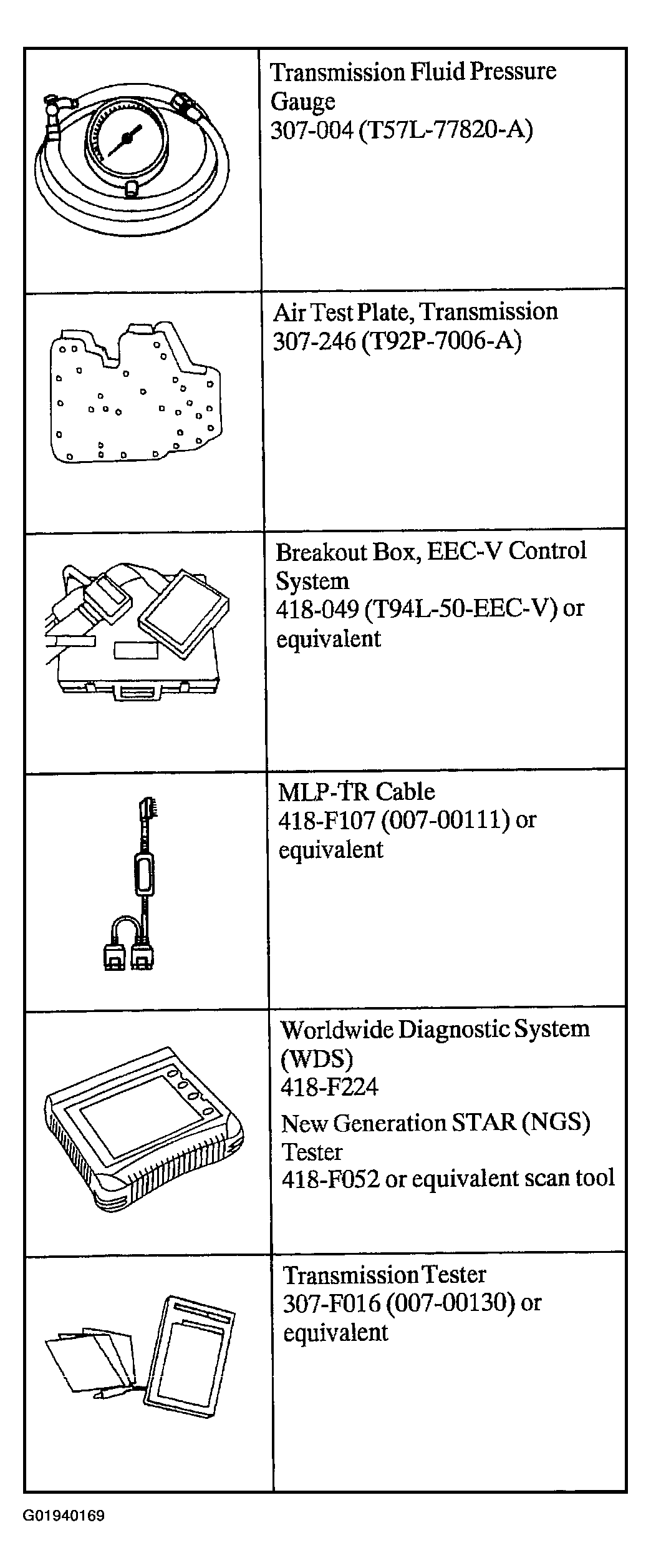

Fig 1: Identifying Special Tool(s) (1 Of 2)

Courtesy of FORD MOTOR CO.

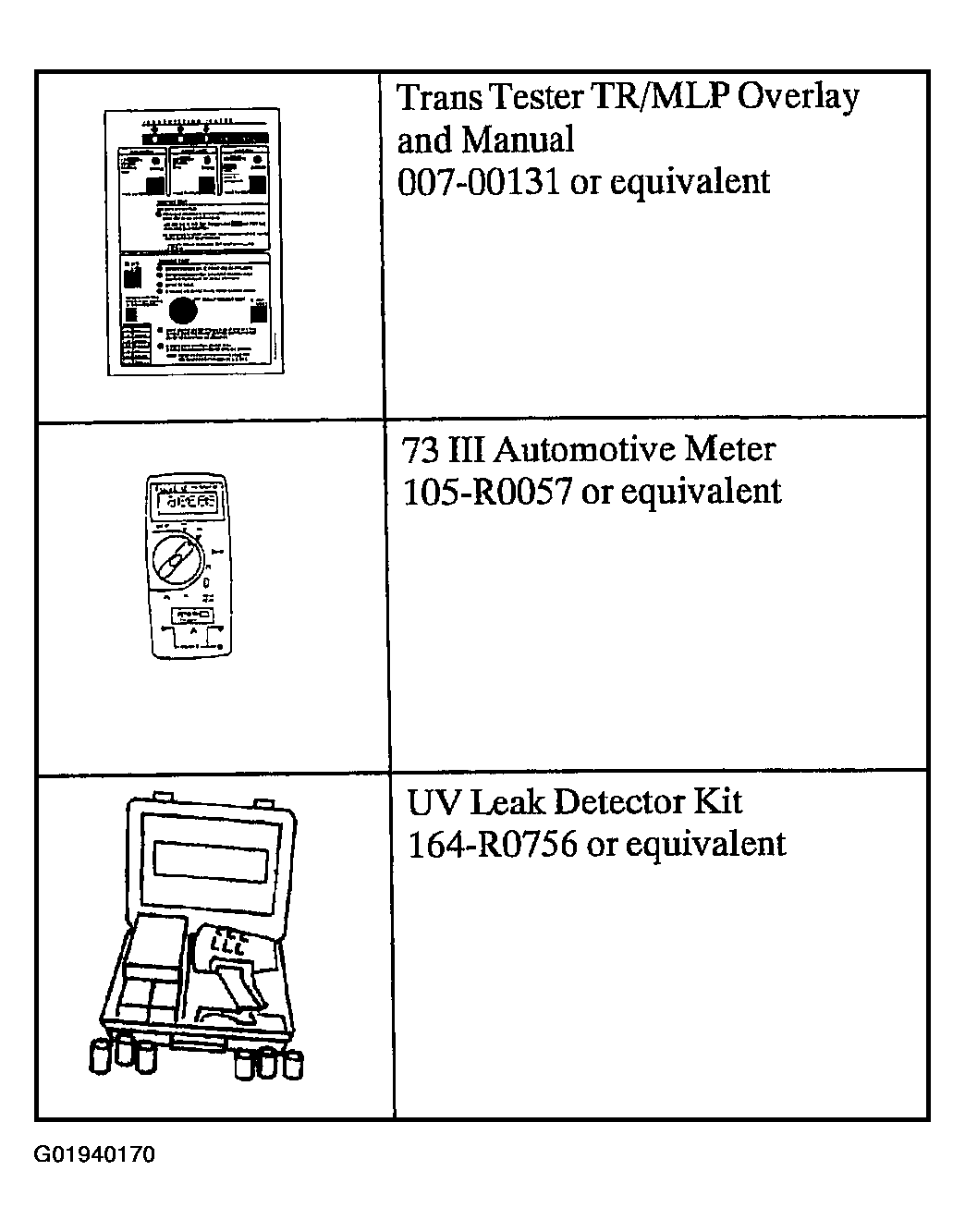

Fig 2: Identifying Special Tool(s) (2 Of 2)

Courtesy of FORD MOTOR CO.

Diagnosis by Symptom gives the technician diagnostic information, direction, and suggest possible components, using a symptom as a starting point.

Diagnosis by Symptom is divided into two categories: Electrical Routines and Hydraulic/Mechanical Routines. The Electrical Routines list the possible electrical components that could cause or contribute to the symptom described. The Hydraulic/Mechanical Routines list the possible hydraulic or mechanical components that could cause or contribute to the symptom described.
