Extension Housing Seal & Gasket: Removal

Drain the transmission fluid. For additional information, refer to FLUID PAN, GASKET & FILTER .

NOTE: The output shaft and drive shaft are a balanced assembly.

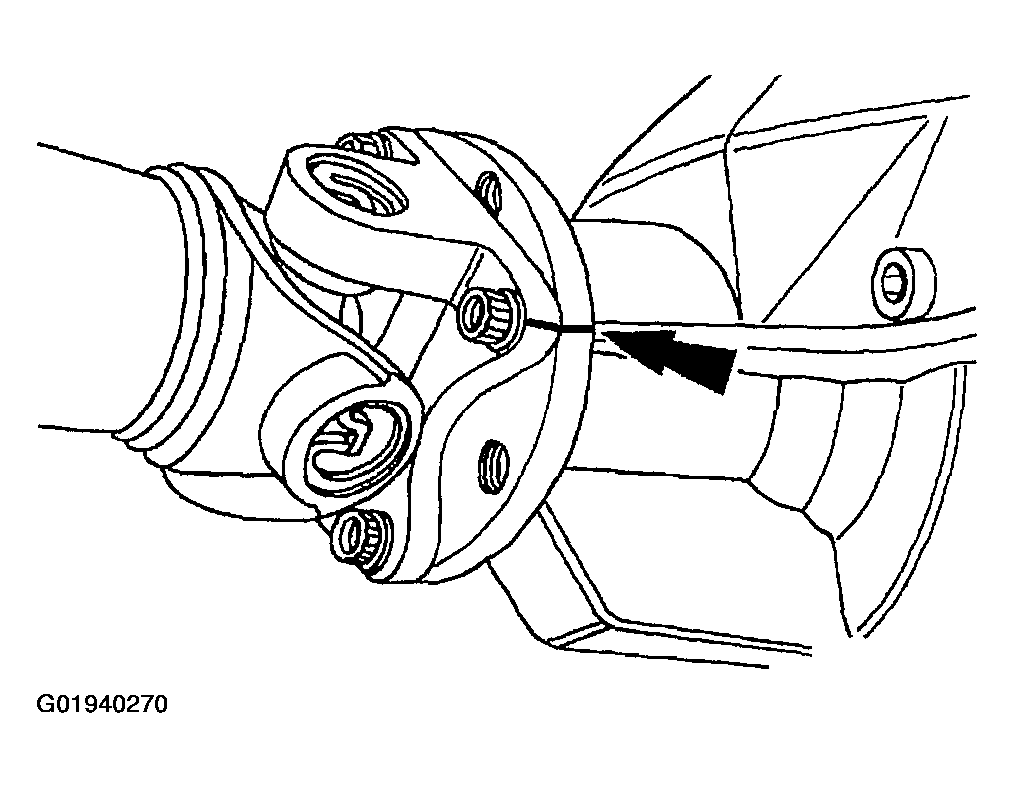

Fig 1: Marking Driveshaft Flange & Rear Companion Flange

Courtesy of FORD MOTOR CO.

Mark the driveshaft flange and the rear companion flange for correct alignment during assembly.
Remove the four driveshaft bolts.

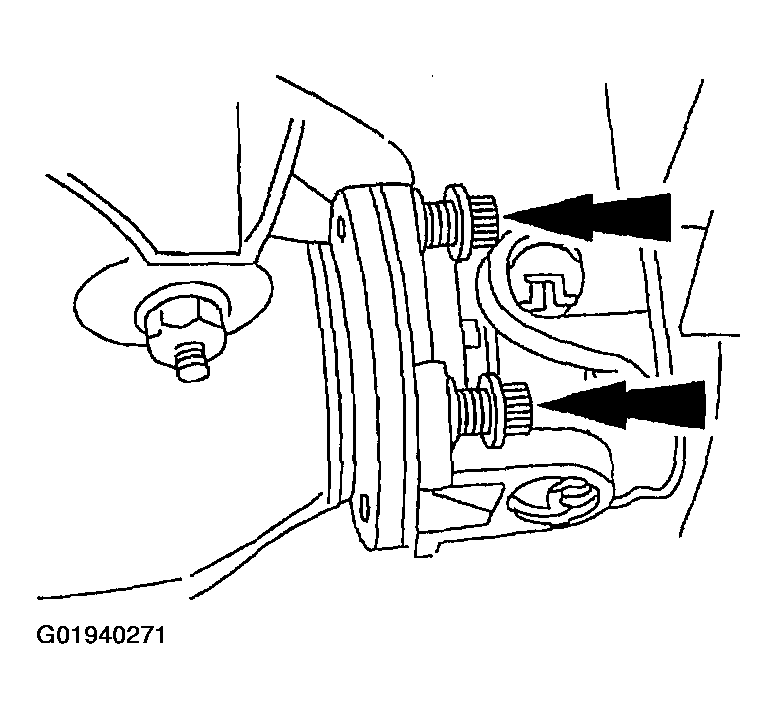

Fig 2: Identifying Driveshaft Bolts
Courtesy of FORD MOTOR CO.
Separate the driveshaft from the transmission.

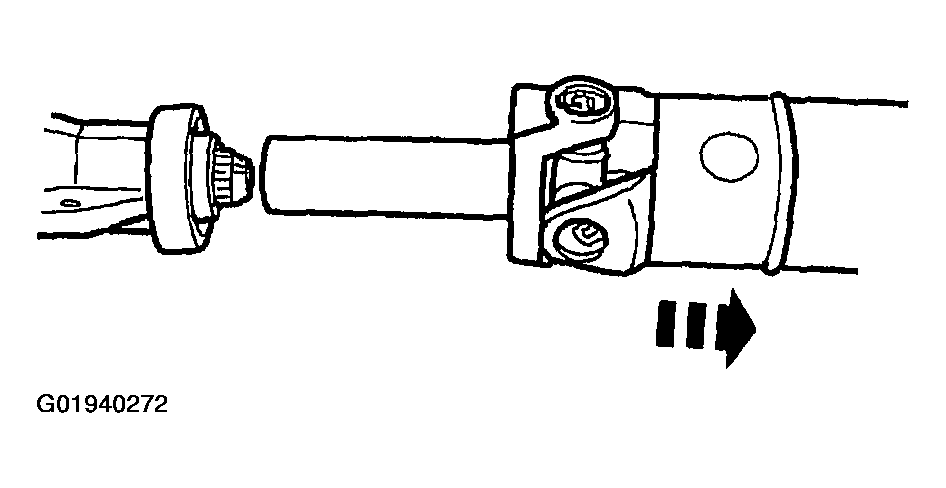

Fig 3: Removing Driveshaft From Transmission
Courtesy of FORD MOTOR CO.
Use a high-lift transmission jack to support the transmission.
Remove the two transmission mount nuts.

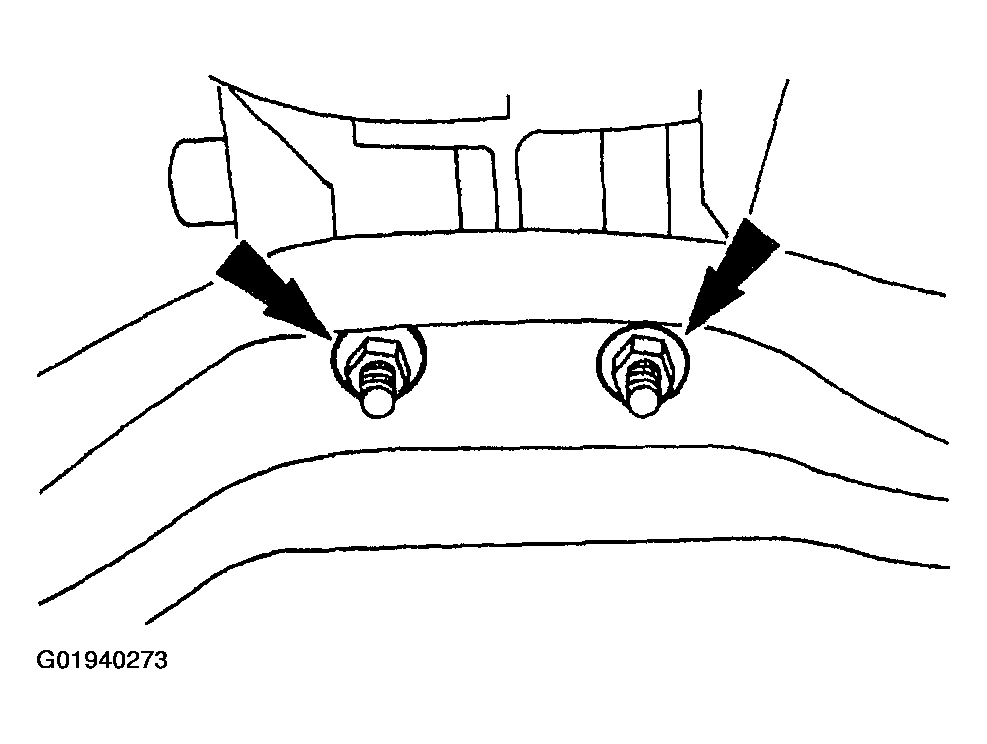

Fig 4: Identifying Transmission Mount Nuts
Courtesy of FORD MOTOR CO.
Remove the transmission crossmember.
- Remove the bolts.
- Remove the transmission crossmember.

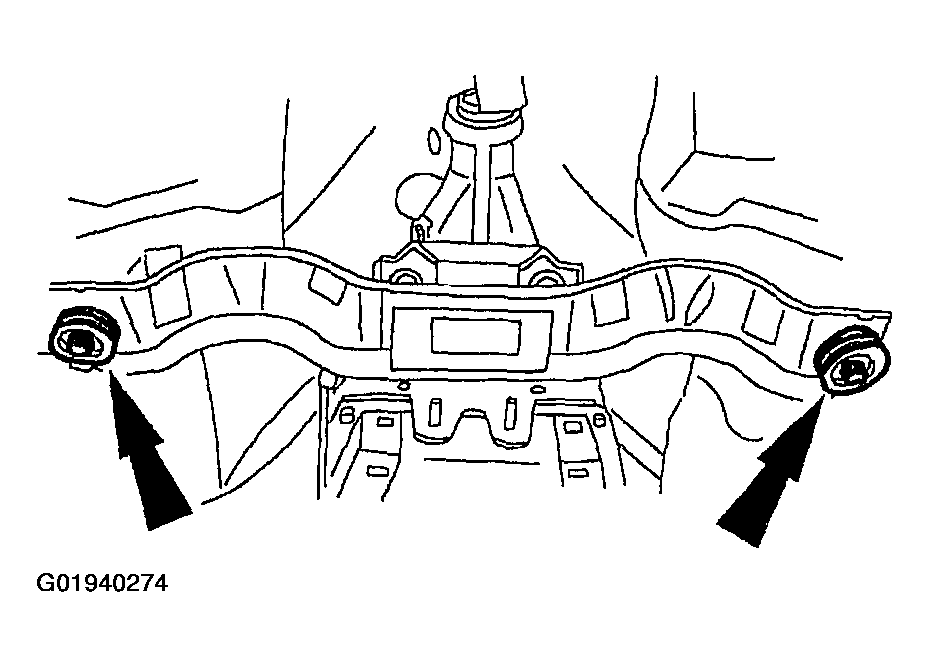

Fig 5: Identifying Transmission Crossmember Bolts
Courtesy of FORD MOTOR CO.
Lower the transmission to access the extension housing bolts.
Using the special tools, remove the extension housing seal.

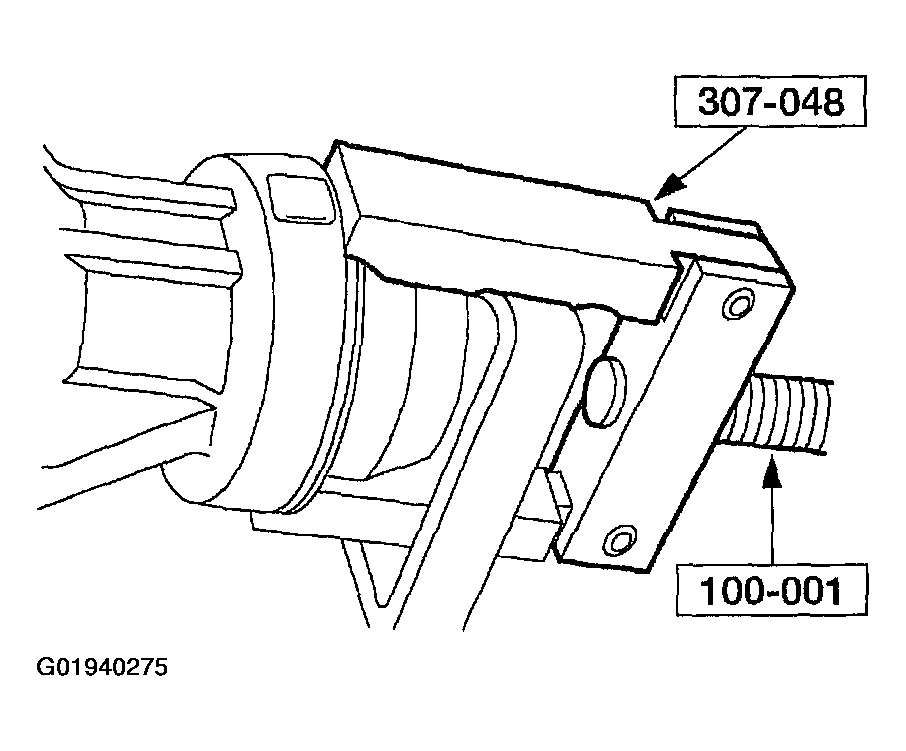

Fig 6: Identifying Transmission Fluid Seal Remover & Slide Hammer
Courtesy of FORD MOTOR CO.
Remove the vehicle speed sensor (VSS).
1. Disconnect the connector.
2. Remove the bolt.
3. Remove the vehicle speed sensor (VSS).

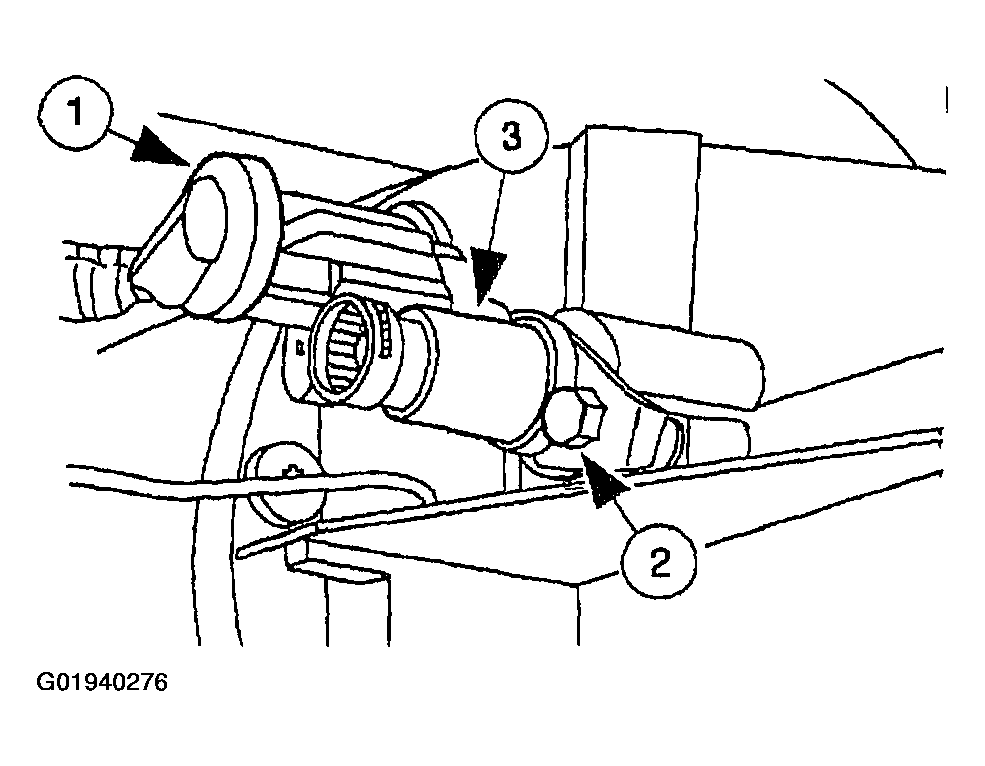

Fig 7: Removing Vehicle Speed Sensor (VSS)
Courtesy of FORD MOTOR CO.
Remove the extension housing and gasket.
1. Remove the bolts and the nuts.
2. Remove the extension housing and gasket.

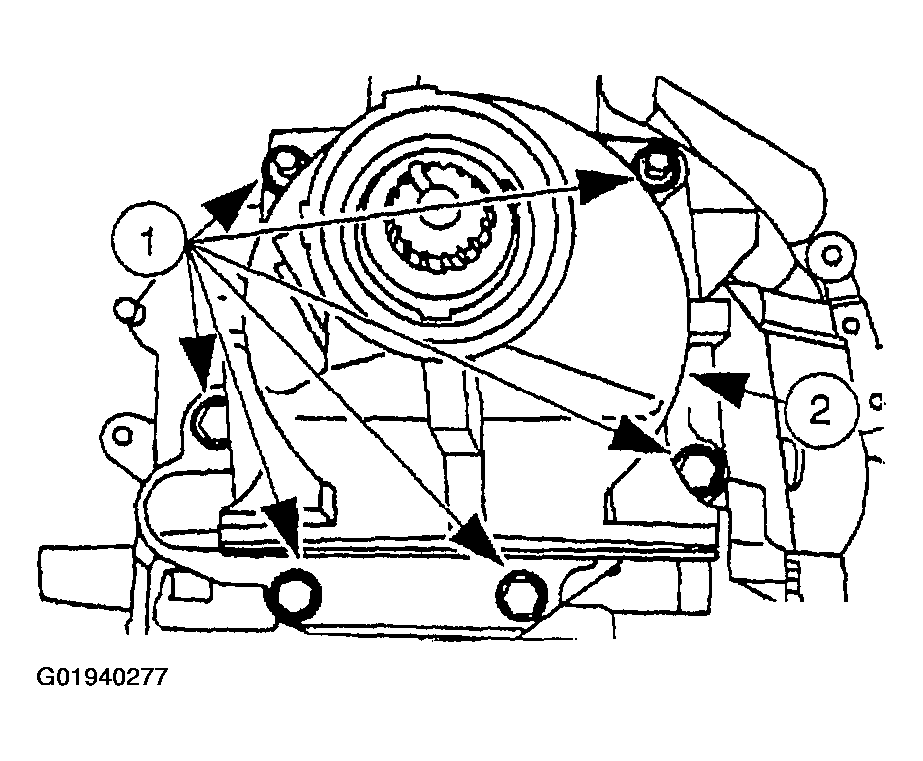

Fig 8: Identifying Extension Housing Bolts & Nuts
Courtesy of FORD MOTOR CO.
