Extension Housing Seal & Gasket: Installation

Install the extension housing and gasket.
1. Position the extension housing gasket and the extension housing.
2. Install the bolts and the nuts.

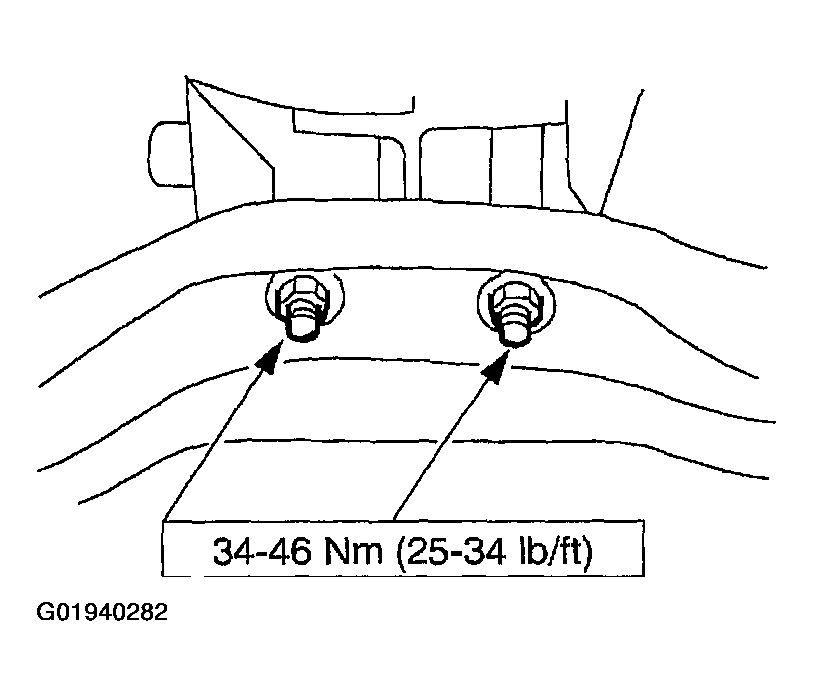

Fig 1: Tightening Extension Housing Bolts & Nuts
Courtesy of FORD MOTOR CO.
Install the vehicle speed sensor (VSS).
1. Install the vehicle speed sensor (VSS).
2. Install the bolt.
3. Connect the connector.

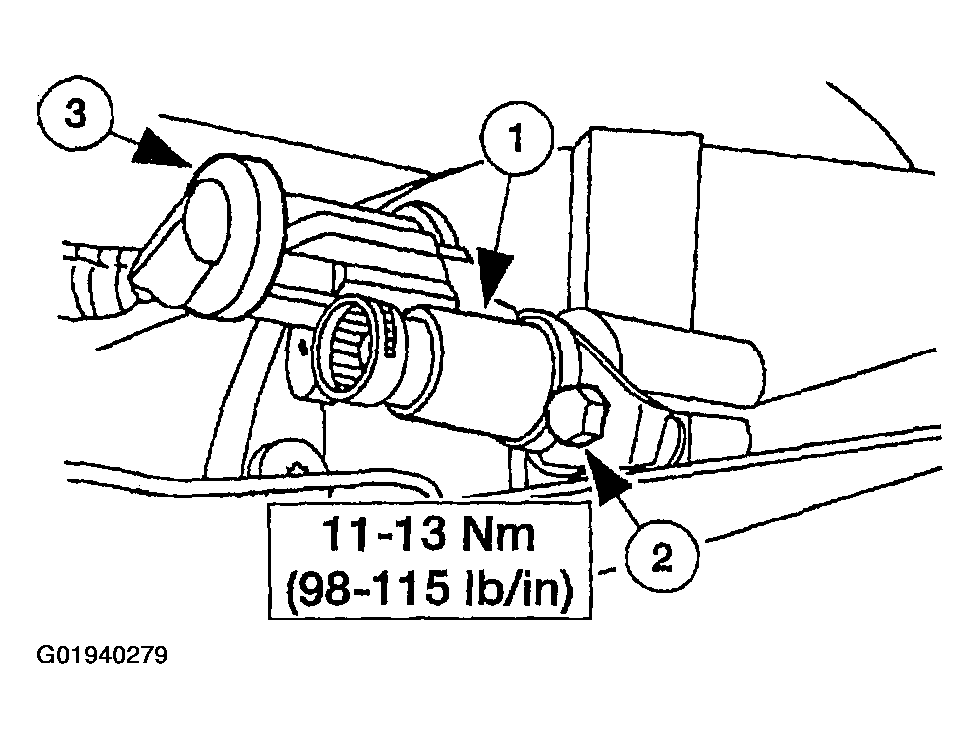

Fig 2: Installing Vehicle Speed Sensor (VSS)
Courtesy of FORD MOTOR CO.
Using the special tool, install a new extension housing seal.

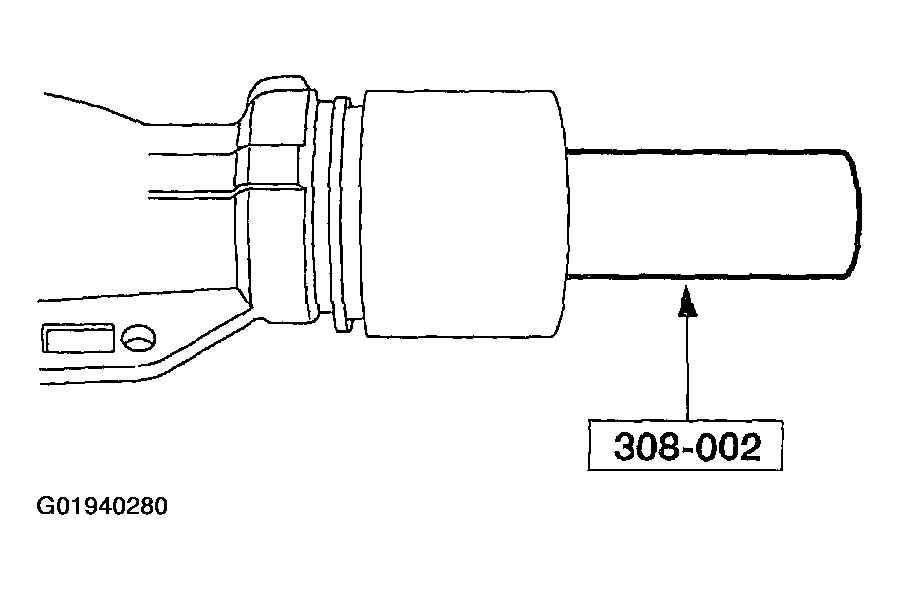

Fig 3: Identifying Transmission Extension Housing Fluid Seal Installer
Courtesy of FORD MOTOR CO.
Raise and position the transmission.
Install the transmission crossmember.
1. Position the transmission crossmember.
2. Install the bolts.

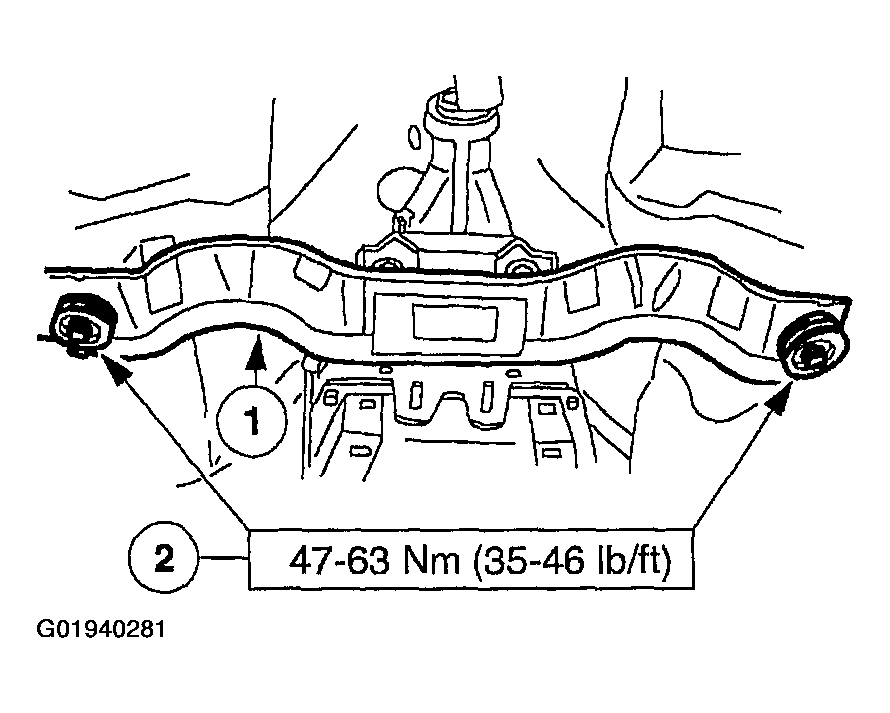

Fig 4: Tightening Transmission Crossmember Bolts
Courtesy of FORD MOTOR CO.
Remove the high-lift transmission jack.
Install the two transmission mount nuts.

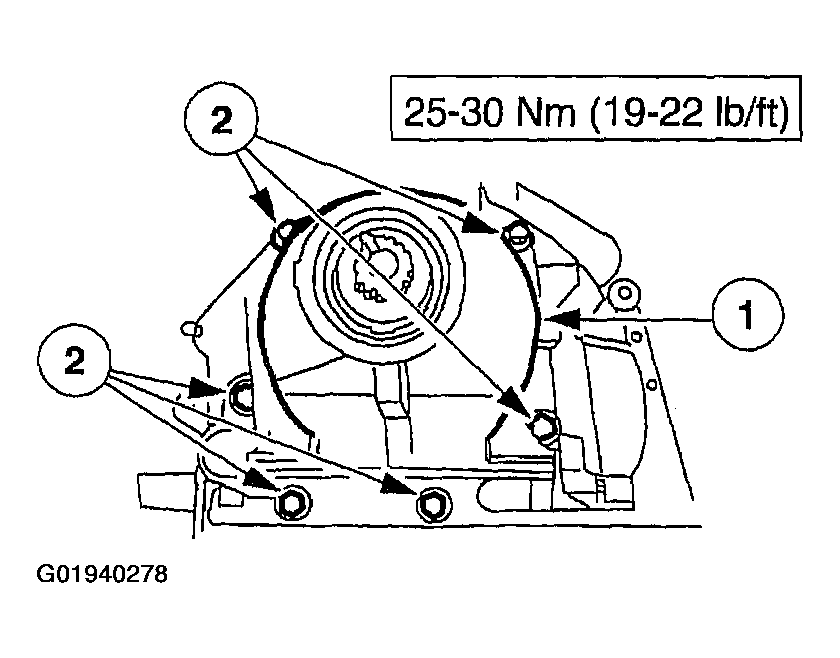

Fig 5: Tightening Transmission Mount Nuts
Courtesy of FORD MOTOR CO.

NOTE: The output shaft and the driveshaft are a balanced assembly.

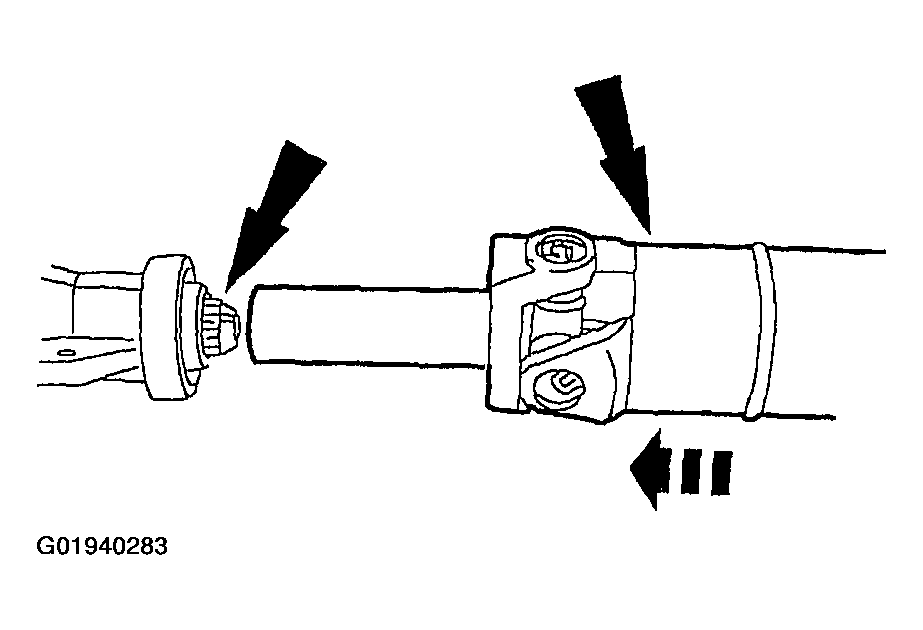

Fig 6: Installing Driveshaft

Courtesy of FORD MOTOR CO.

Install the driveshaft.
- Align the index marks and position the driveshaft on the transmission.
- Install the driveshaft.

NOTE: To maintain driveshaft balance, install the driveshaft yoke and flange in its original position that was marked during removal.

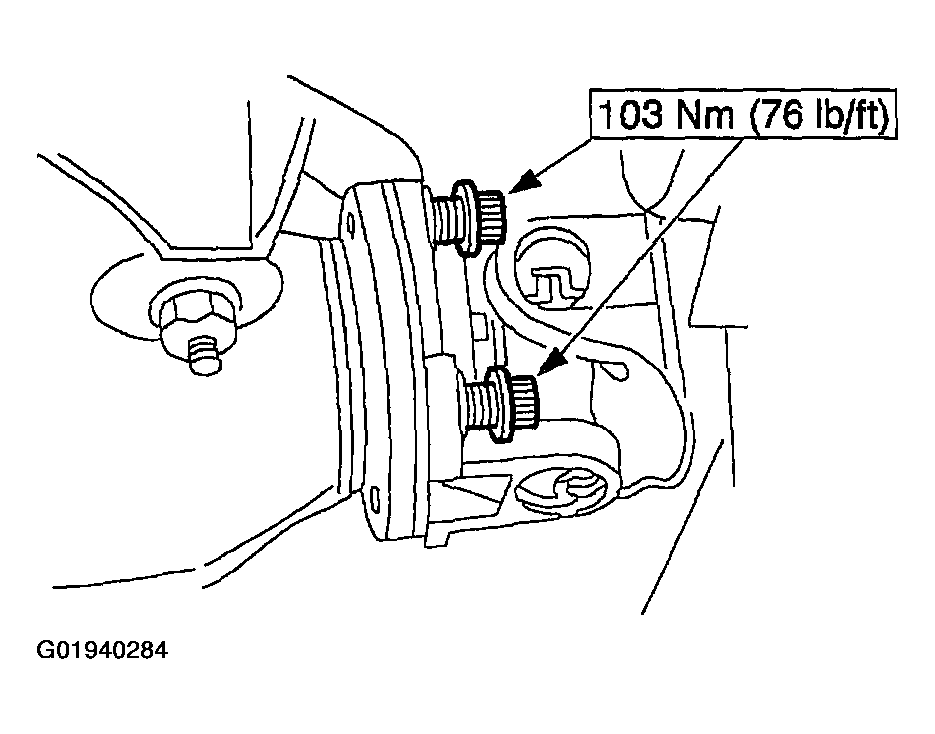

Fig 7: Tightening Driveshaft Bolts

Courtesy of FORD MOTOR CO.

Install the four retaining bolts.
Install the filter and transmission fluid pan. For additional information, refer to FLUID PAN, GASKET & FILTER .
