Manual Control Lever Shaft & Seal: Removal

Drain the transmission fluid and remove the fluid pan and filter. For additional information, refer to FLUID PAN, GASKET & FILTER .

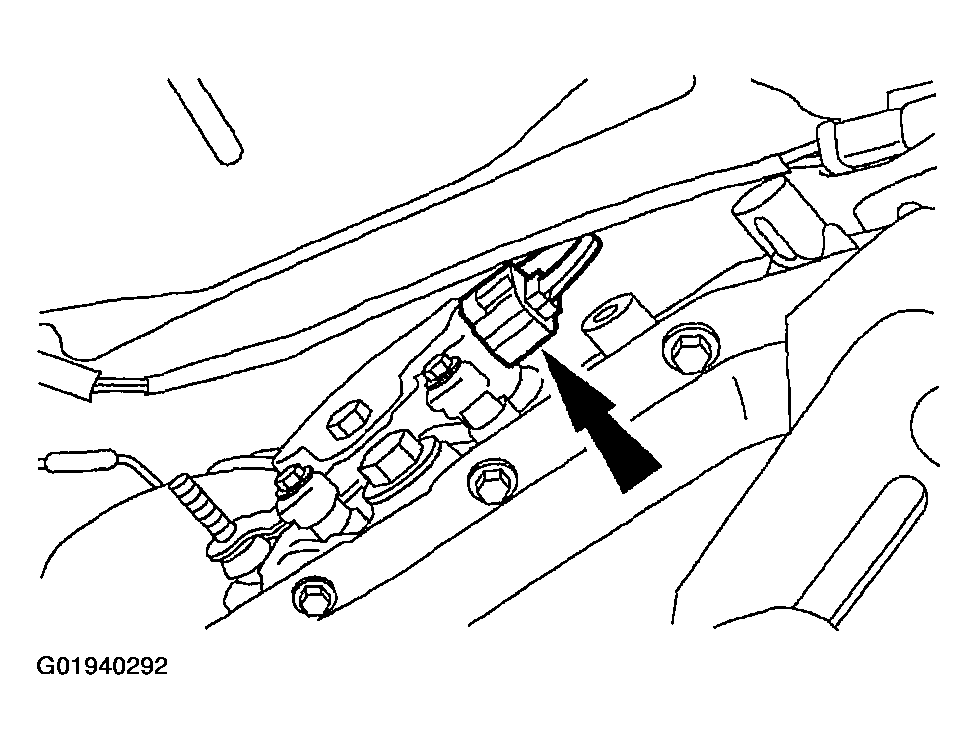

Disconnect the digital TR sensor electrical connector.

Fig 1: Identifying Digital TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

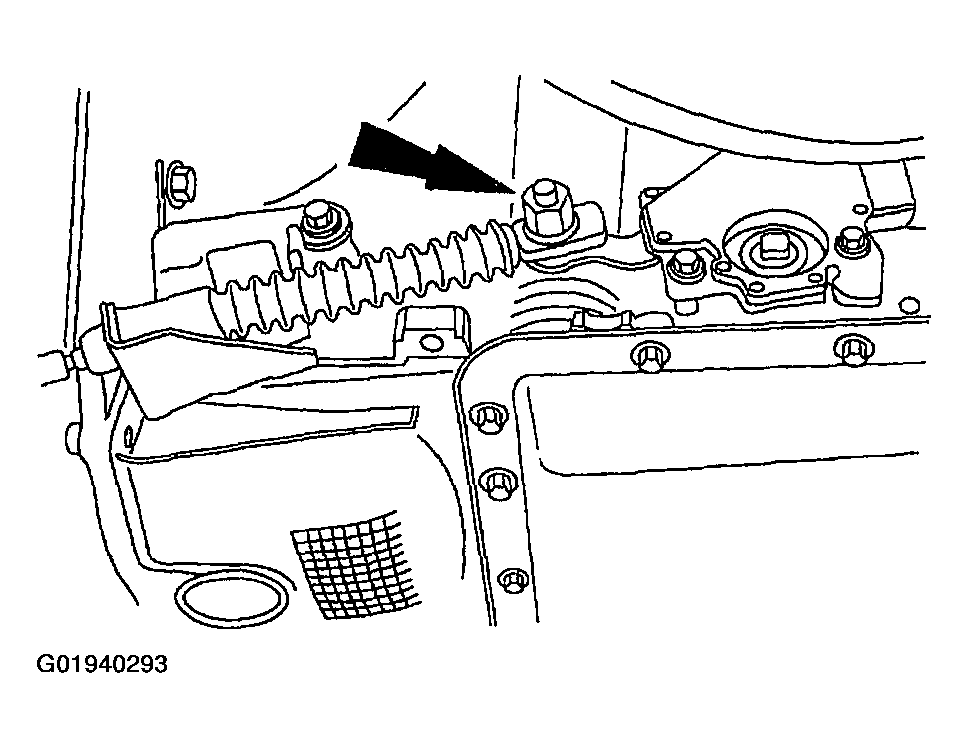

Disconnect the transmission shift linkage.

Fig 2: Identifying Transmission Shift Linkage Nut
Courtesy of FORD MOTOR CO.

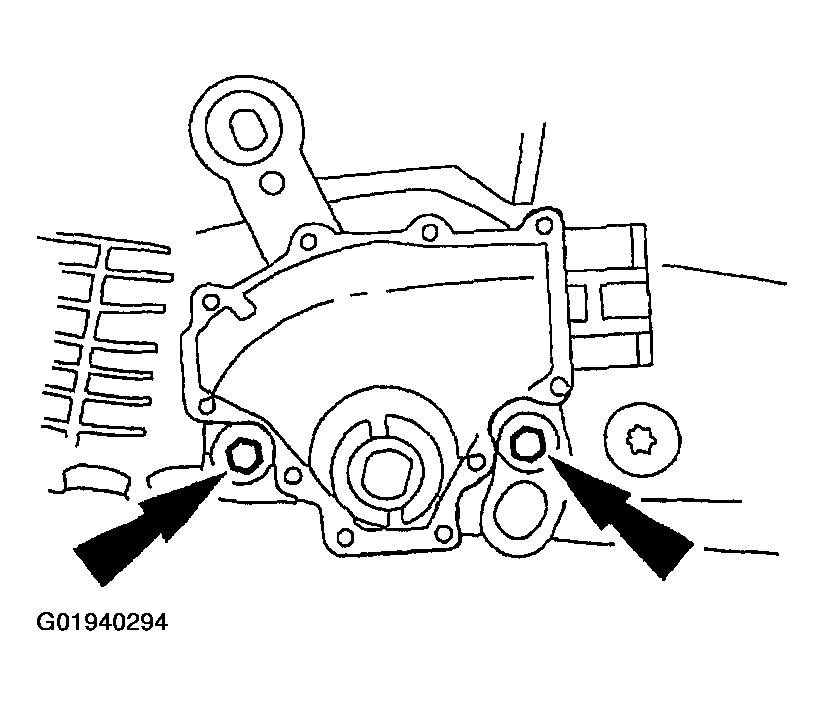

Remove the digital TR sensor.
- Remove the bolts.
- Remove the digital TR sensor.
Fig 3: Identifying Digital TR Sensor Bolts
Courtesy of FORD MOTOR CO.

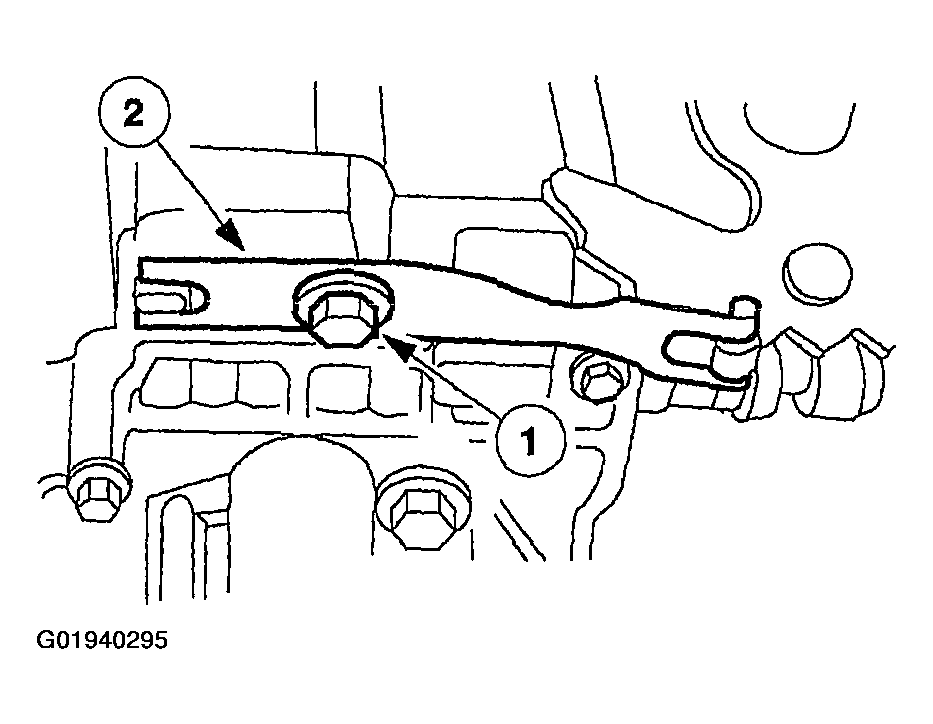

Remove the manual control valve detent lever spring.
1. Remove the bolt.
2. Remove the manual control valve detent lever spring.
Fig 4: Identifying Manual Control Valve Detent Lever Spring Bolt
Courtesy of FORD MOTOR CO.

NOTE: Use a shop cloth to protect the transmission case surface.

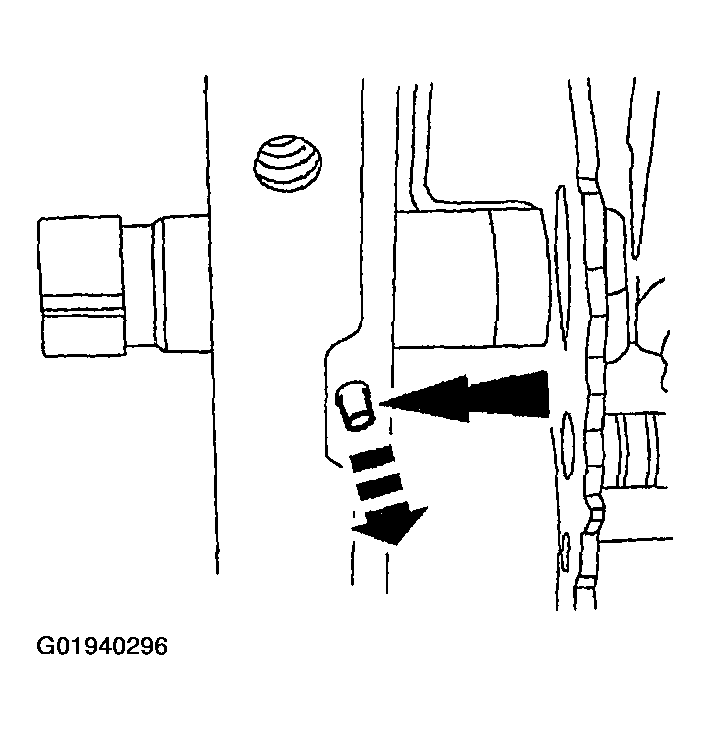

Fig 5: Identifying Manual Lever Shaft Retaining Pin

Courtesy of FORD MOTOR CO.

Remove the manual lever shaft retaining pin.

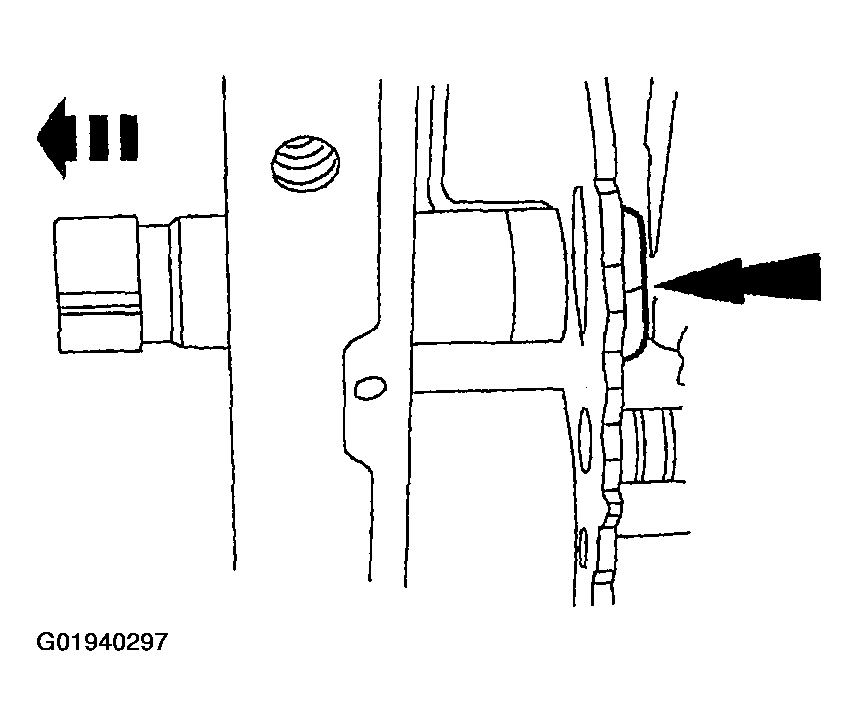

Remove the nut and slide the manual control lever shaft out of the case.

Fig 6: Identifying Manual Control Lever Shaft Nut
Courtesy of FORD MOTOR CO.

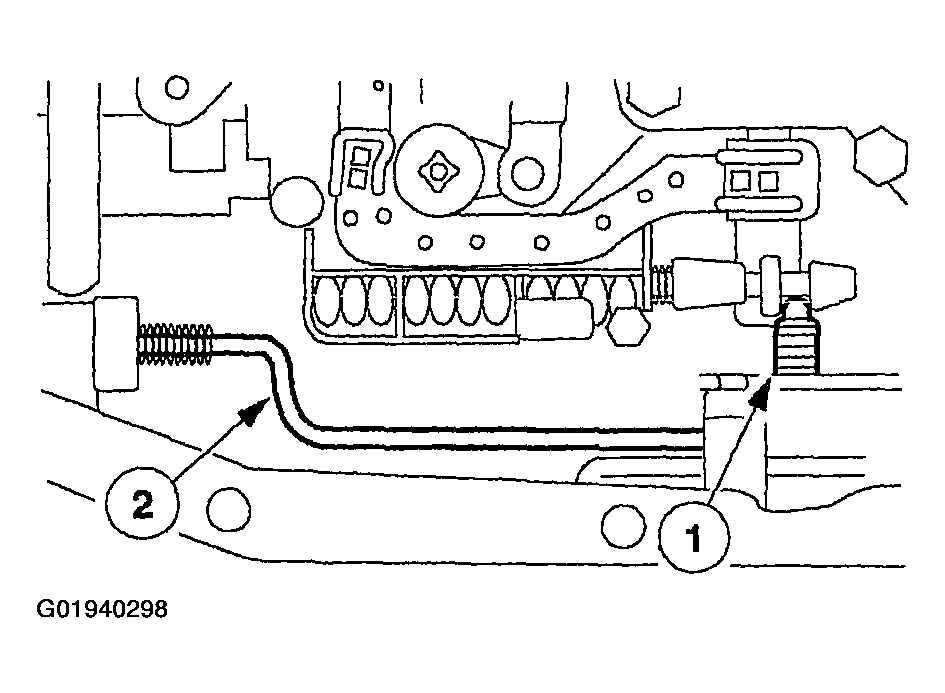

Remove the parking lever actuating rod.
1. Remove the manual valve detent lever.
2. Remove the parking lever actuating rod.
Fig 7: Identifying Manual Valve Detent Lever & Parking Lever Actuating Rod
Courtesy of FORD MOTOR CO.

CAUTION: Use care not to damage the manual control lever shaft bore. New seal may leak due to damage to the bore.

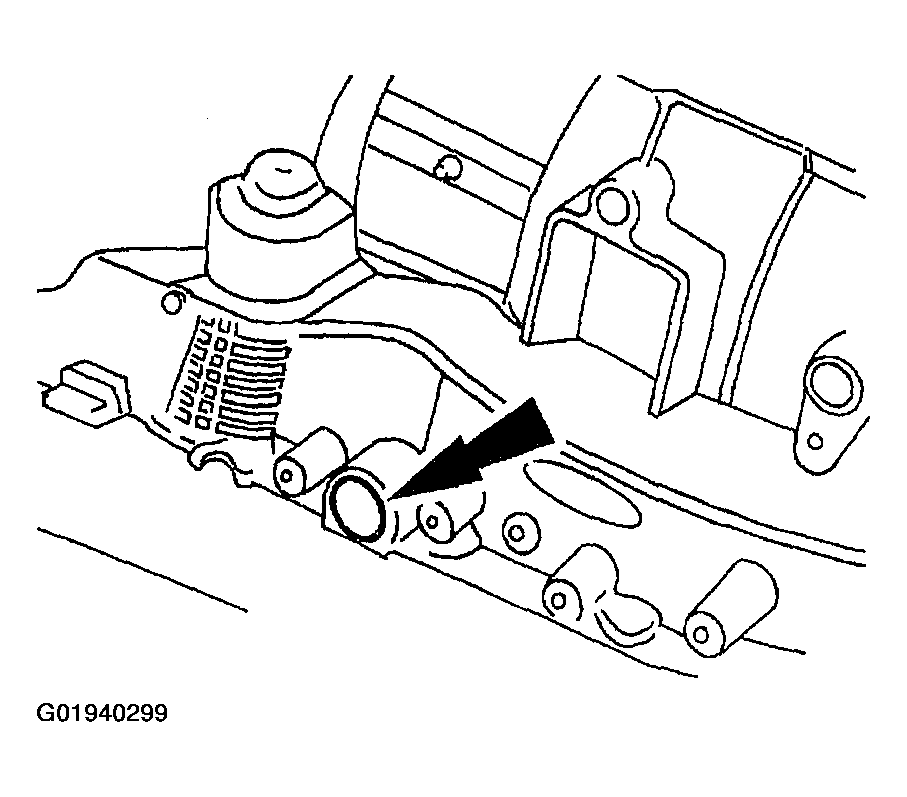

Fig 8: Identifying Manual Control Lever Shaft Seal

Courtesy of FORD MOTOR CO.
