1-2 Accumulator: Removal

  1. Compress the 1-2 accumulator cover and remove the accumulator piston retaining ring.

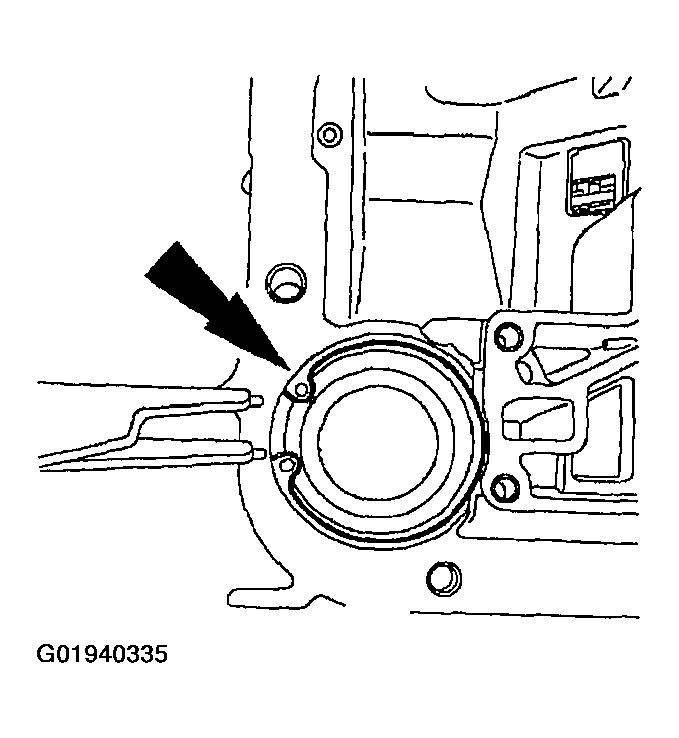

    Fig 1: Identifying Accumulator Piston Retaining Ring
    G01940335Courtesy of FORD MOTOR CO.
    2. NOTE: Note the location of the 1-2 accumulator springs for reference during assembly.

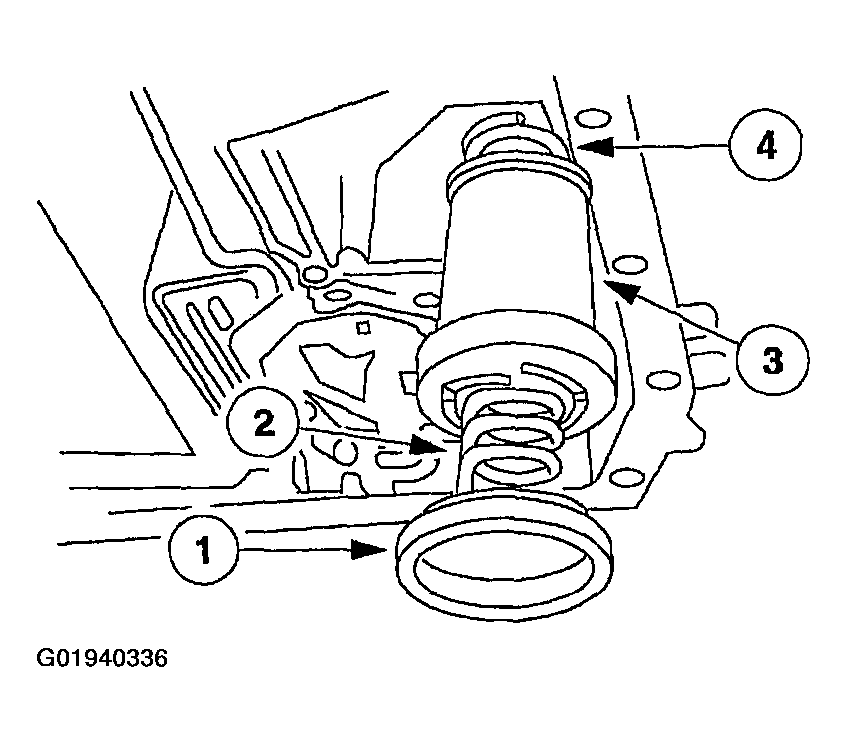

    Fig 2: Identifying 1-2 Accumulator Cover, Lower 1-2 Accumulator Spring, Accumulator Piston & Upper 1-2 Accumulator Spring
    G01940336Courtesy of FORD MOTOR CO.
  2. Remove the 1-2 accumulator.
    1. Remove the 1-2 accumulator cover.
    2. Remove the lower 1-2 accumulator spring.
    3. Remove the accumulator piston.
    4. Remove the upper 1-2 accumulator spring.
