Home >> Ford >> 2002 >> Crown Victoria Base, 4.6 9 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> In-Vehicle Repair >> Transmission Support CROSSMEMBER >> Installation

Transmission Support CROSSMEMBER: Installation

  1. To install, reverse the removal procedure.

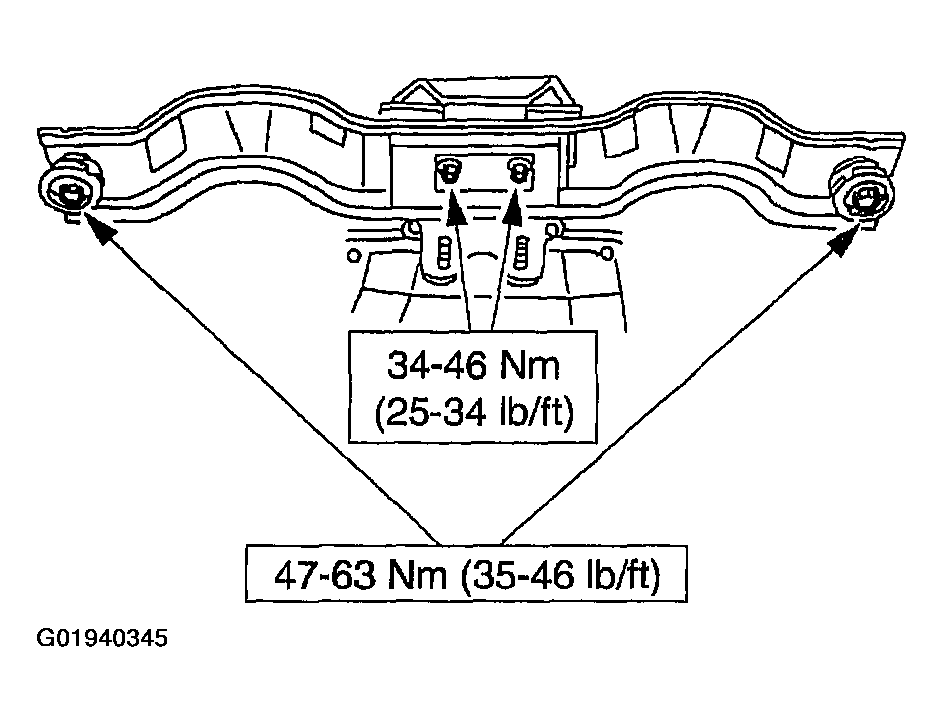

    Fig 1: Tightening Transmission Support Insulator Nuts & Transmission Support Crossmember Bolts
    G01940345Courtesy of FORD MOTOR CO.
