Special Tool(s)

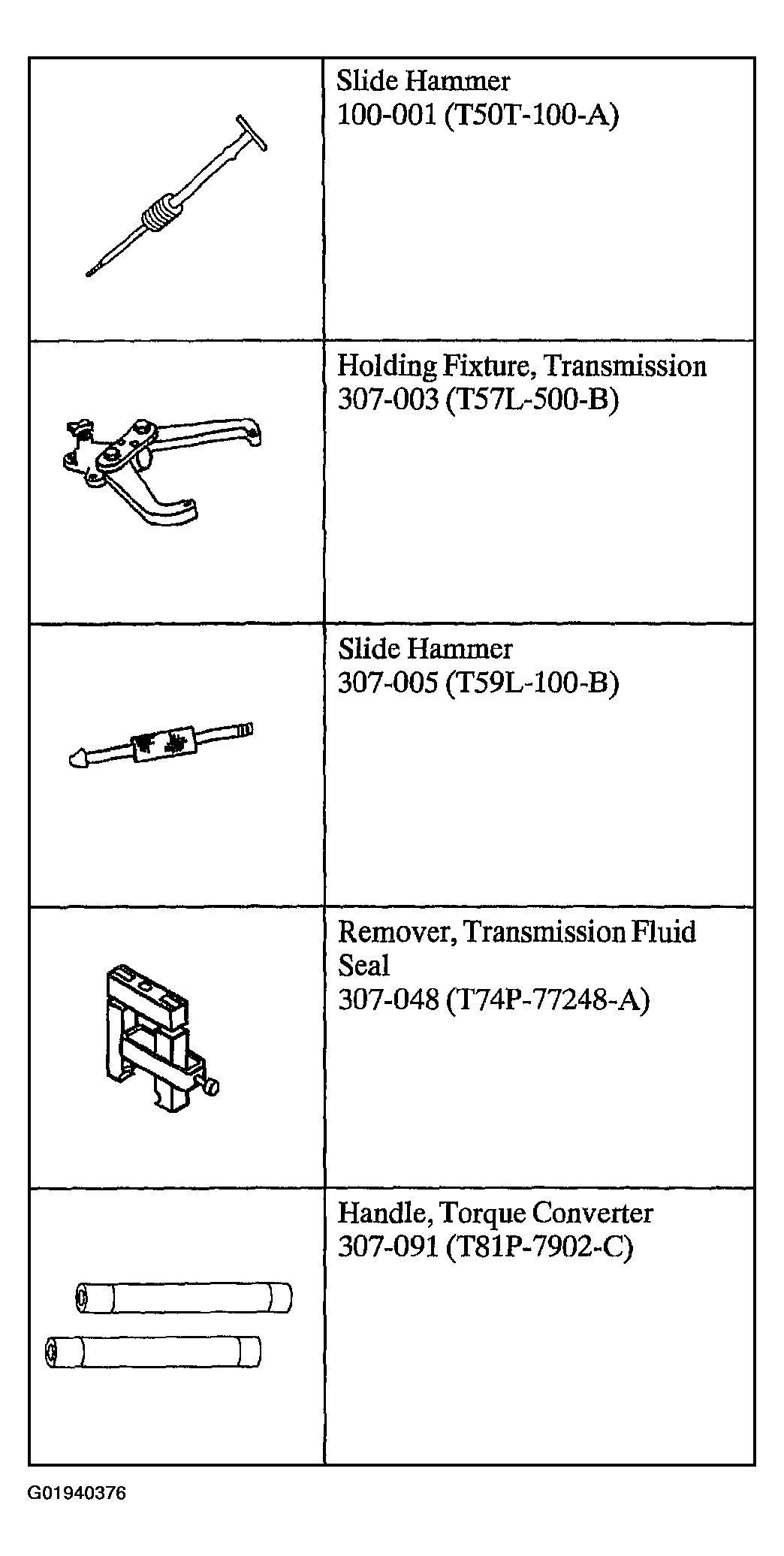

Fig 1: Identifying Transmission Disassembly Special Tool(s) (1 Of 2)
G01940376Courtesy of FORD MOTOR CO.

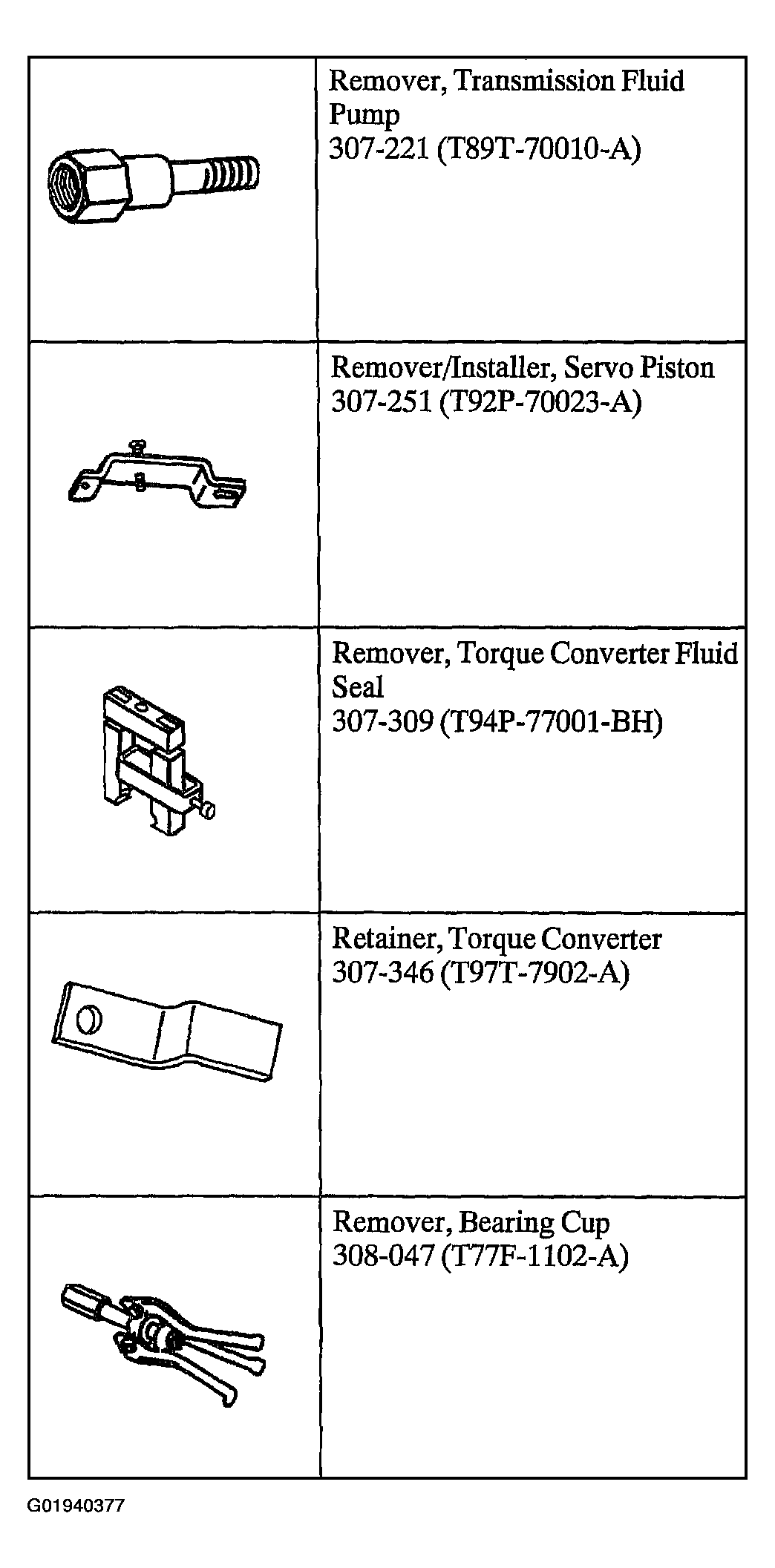

Fig 2: Identifying Transmission Disassembly Special Tool(s) (2 Of 2)
G01940377Courtesy of FORD MOTOR CO.
