Notes
Planetary Gear Support Assembly & Planetary One-Way Clutch: Notes

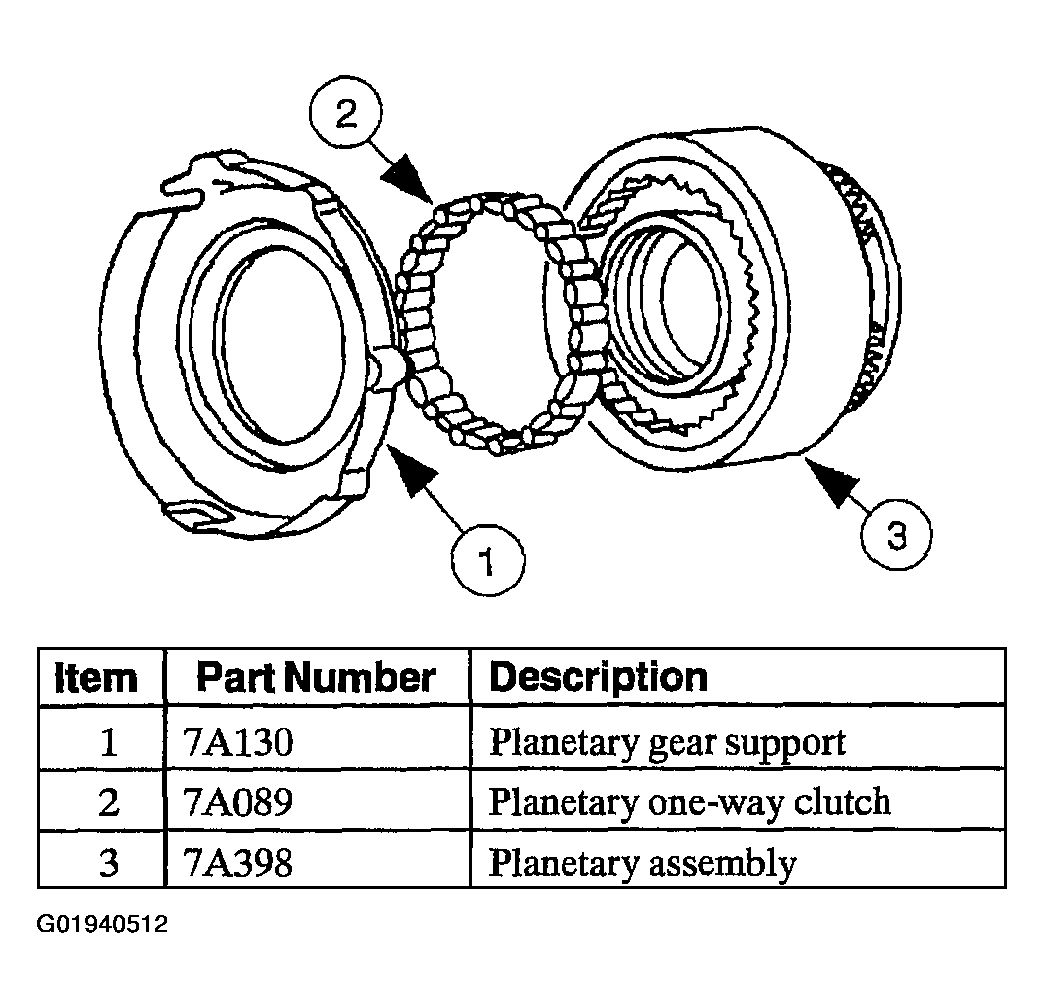

Fig 1: Identifying Planetary Gear Support Assembly & Planetary One-Way Clutch
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
