Output Shaft, Direct Clutch Cylinder & Ring Gear - Disassembled View

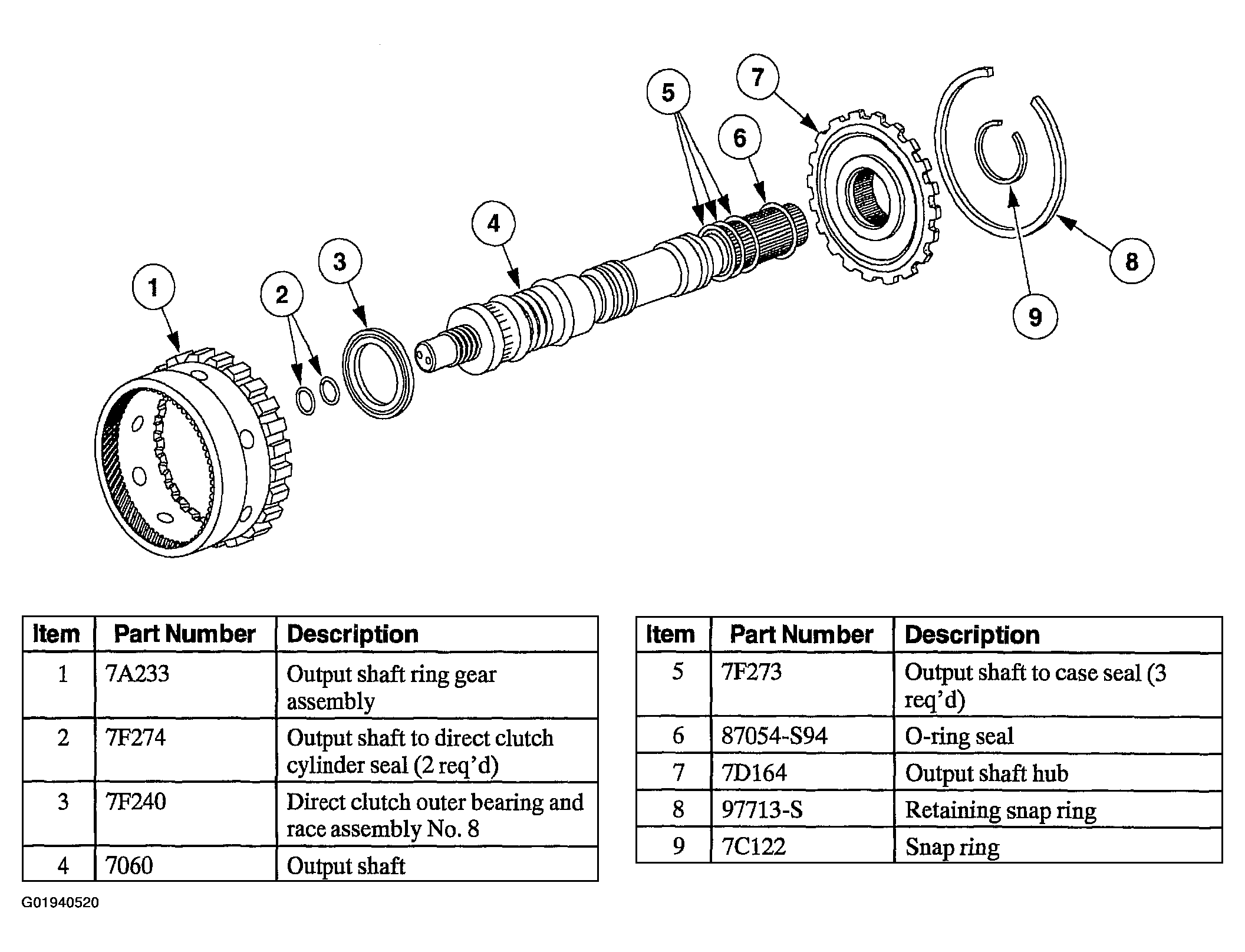

Fig 1: Identifying Output Shaft, Direct Clutch Cylinder & Ring Gear - Disassembled View

G01940520

Courtesy of FORD MOTOR CO.
