Direct Clutch - Disassembled View
Direct Clutch - Disassembled View

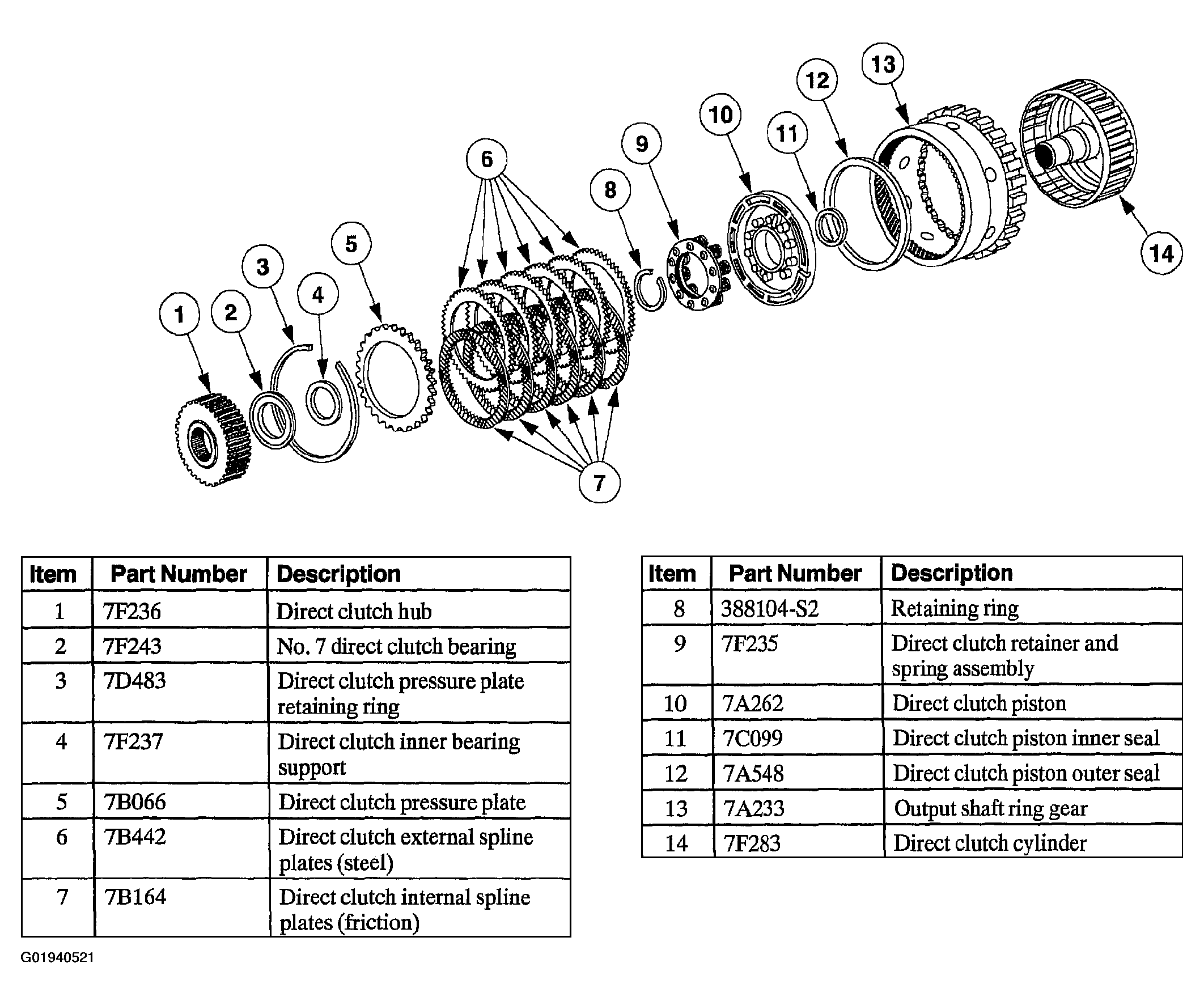

Fig 1: Identifying Direct Clutch - Disassembled View
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
