Special Tool(s)

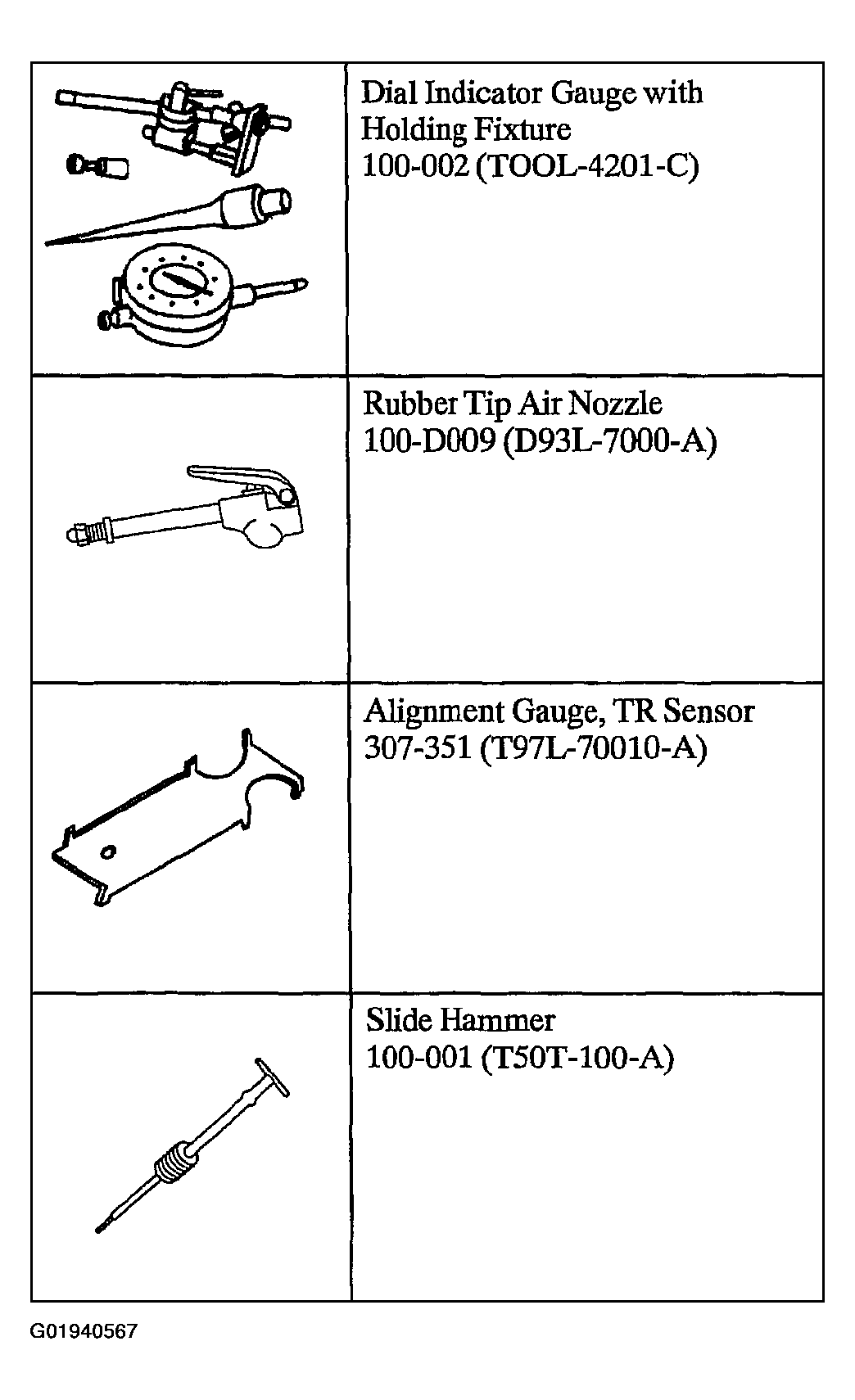

Fig 1: Identifying Transmission Assembly Special Tool(s) (1 Of 4)
G01940567Courtesy of FORD MOTOR CO.

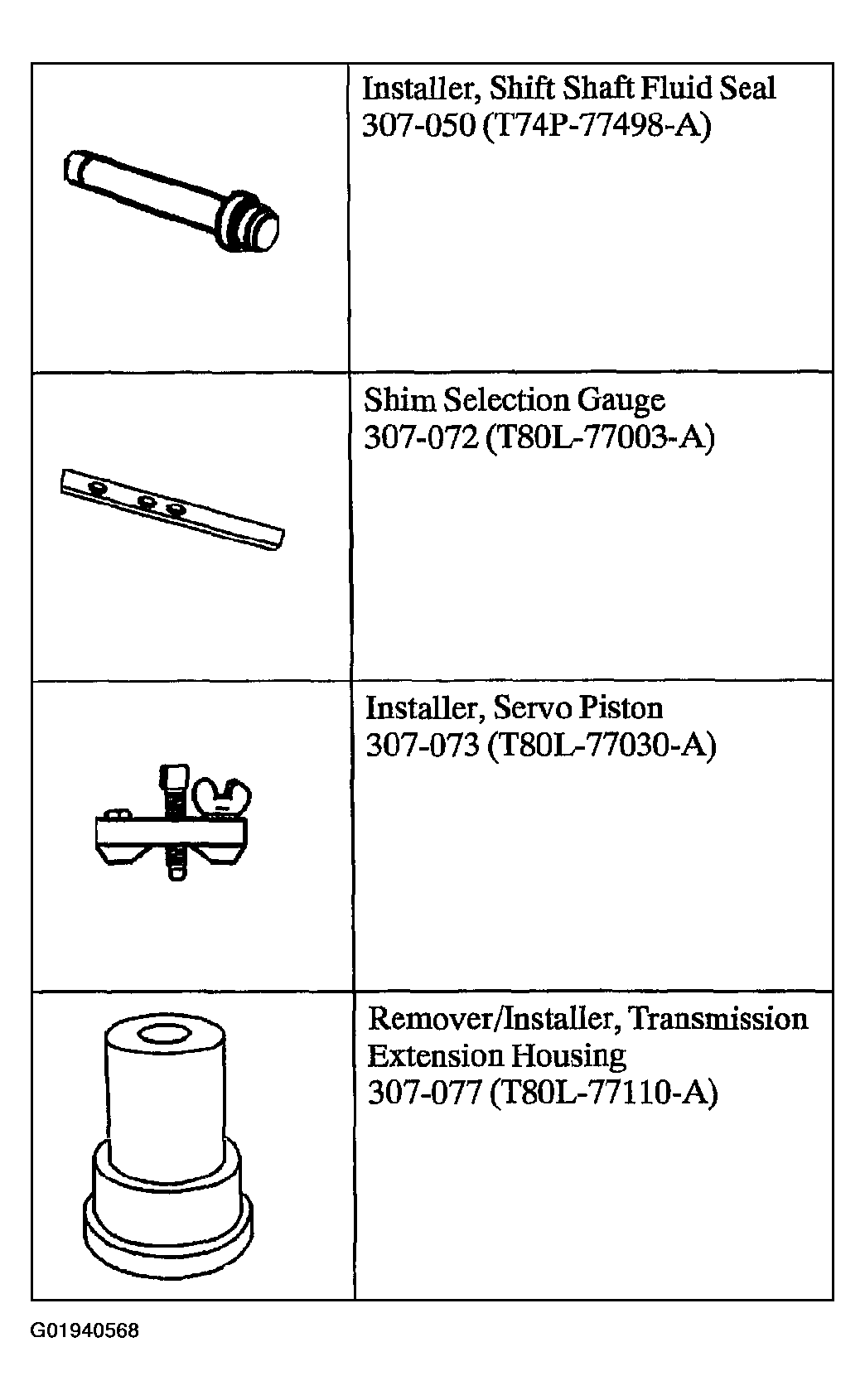

Fig 2: Identifying Transmission Assembly Special Tool(s) (2 Of 4)
G01940568Courtesy of FORD MOTOR CO.

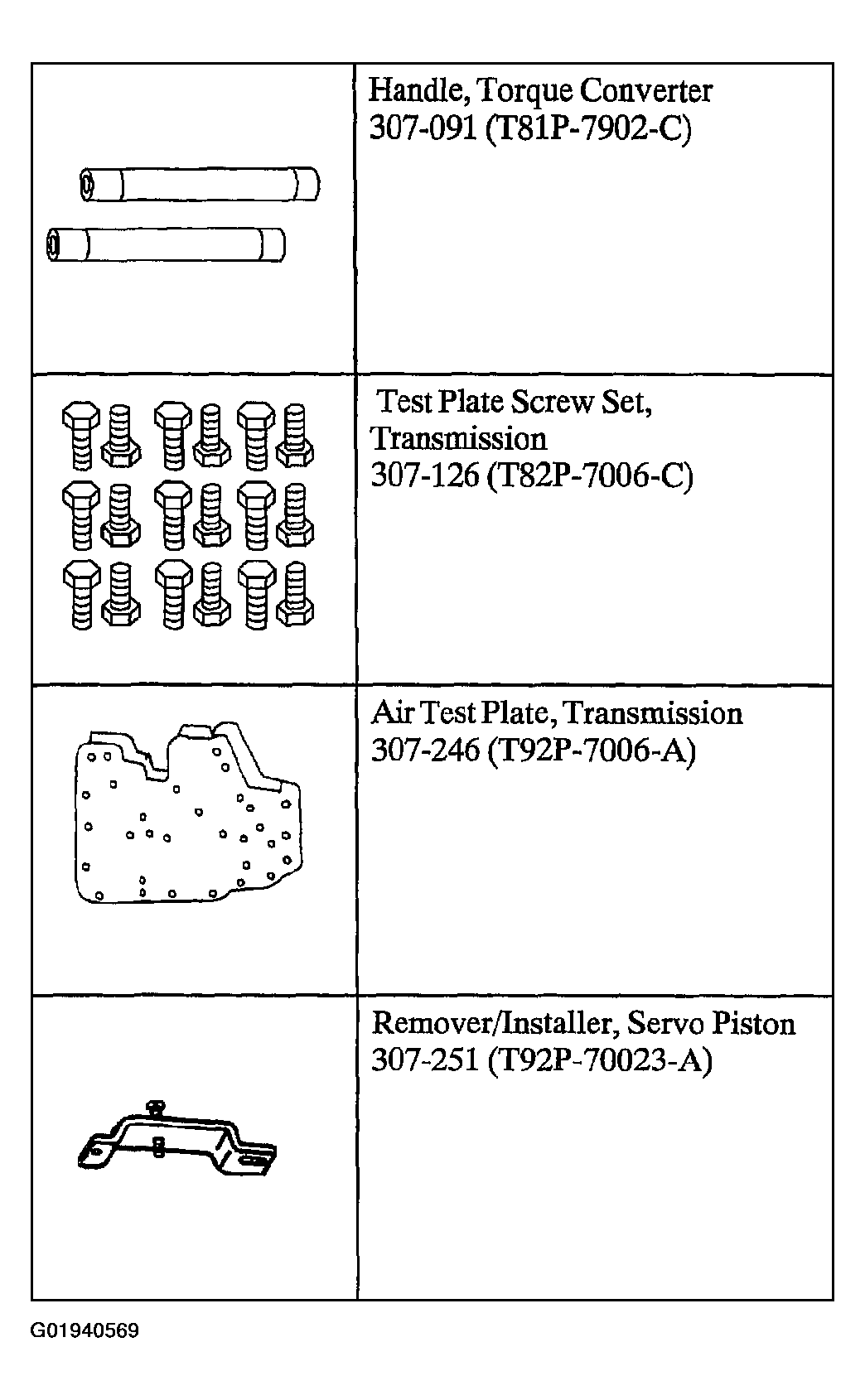

Fig 3: Identifying Transmission Assembly Special Tool(s) (3 Of 4)
G01940569Courtesy of FORD MOTOR CO.

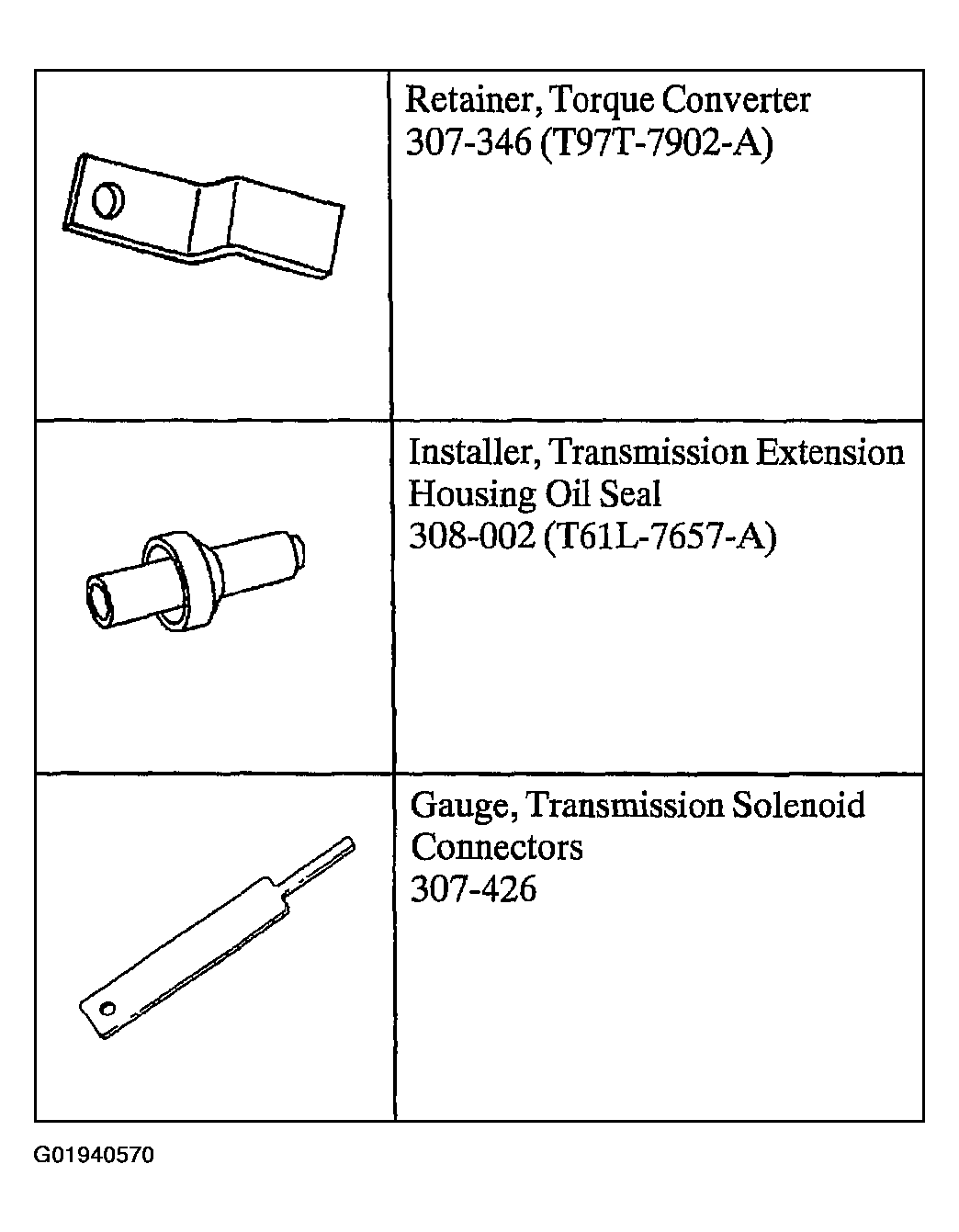

Fig 4: Identifying Transmission Assembly Special Tool(s) (4 Of 4)
G01940570Courtesy of FORD MOTOR CO.
