Pinpoint Test A: The Courtesy Lamps Are Inoperative

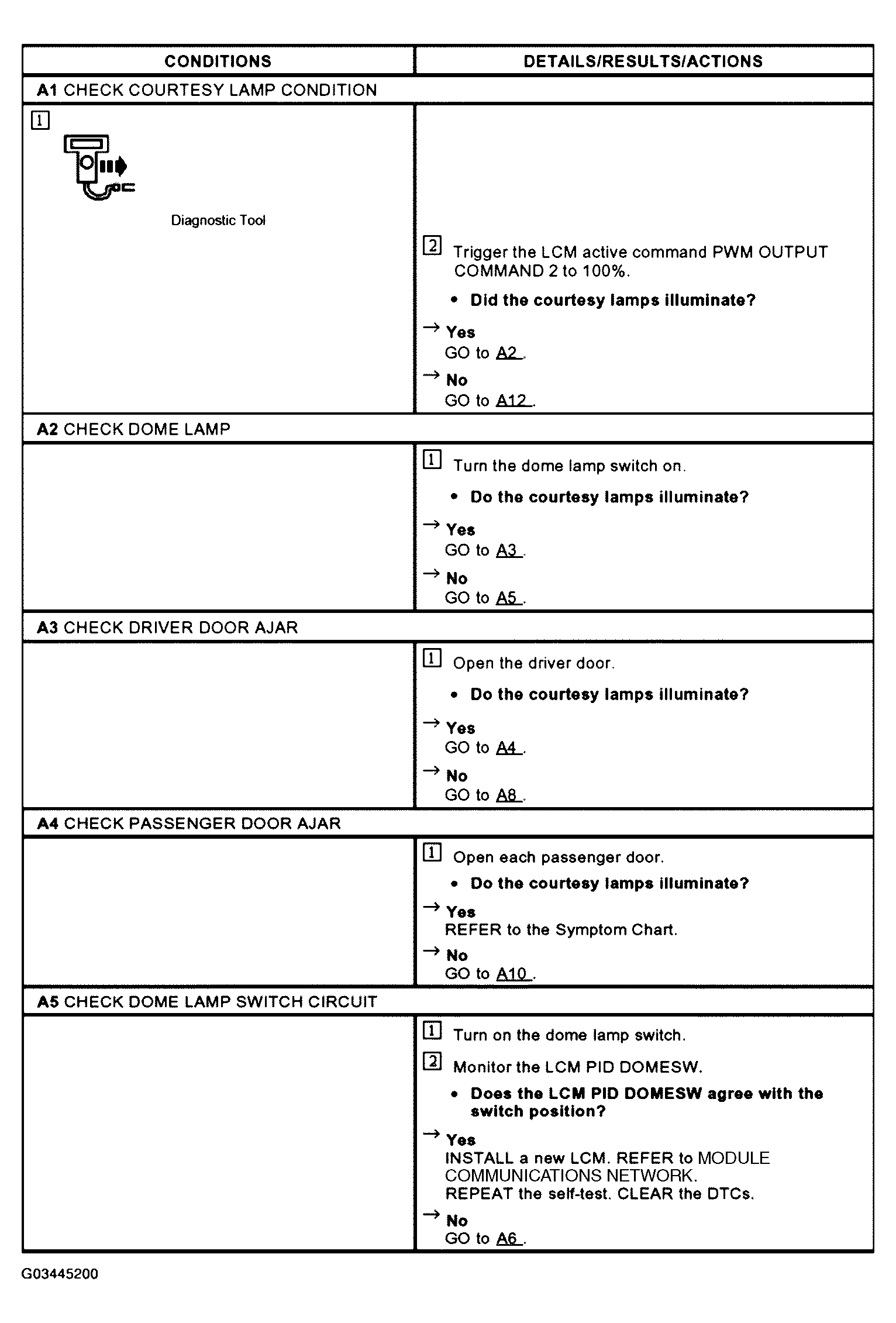

Fig 1: Pinpoint Test A: Courtesy Lamps Are Inoperative (A1 - A5)

Courtesy of FORD MOTOR CO.

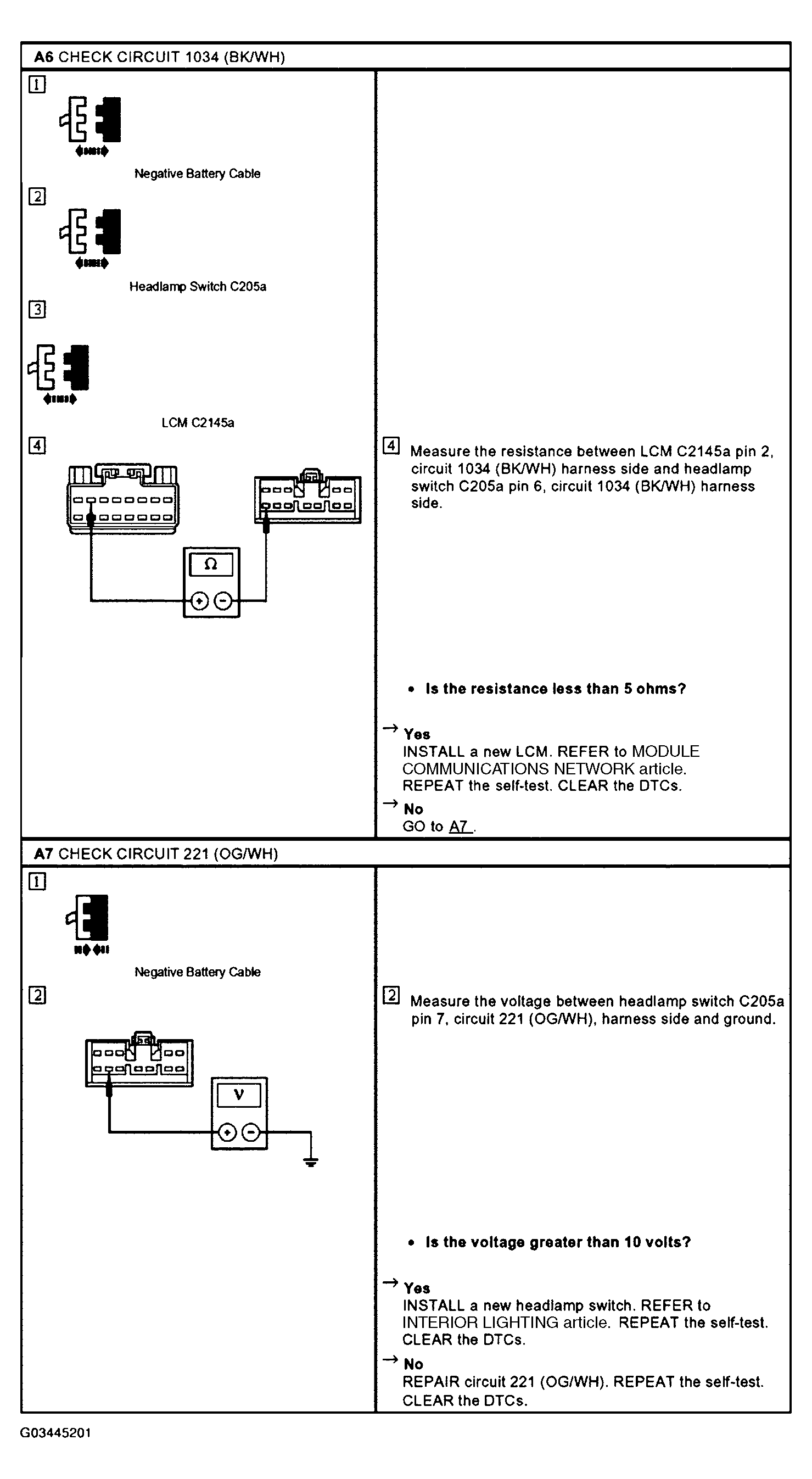

Fig 2: Pinpoint Test A: Courtesy Lamps Are Inoperative (A6 - A7)

Courtesy of FORD MOTOR CO.

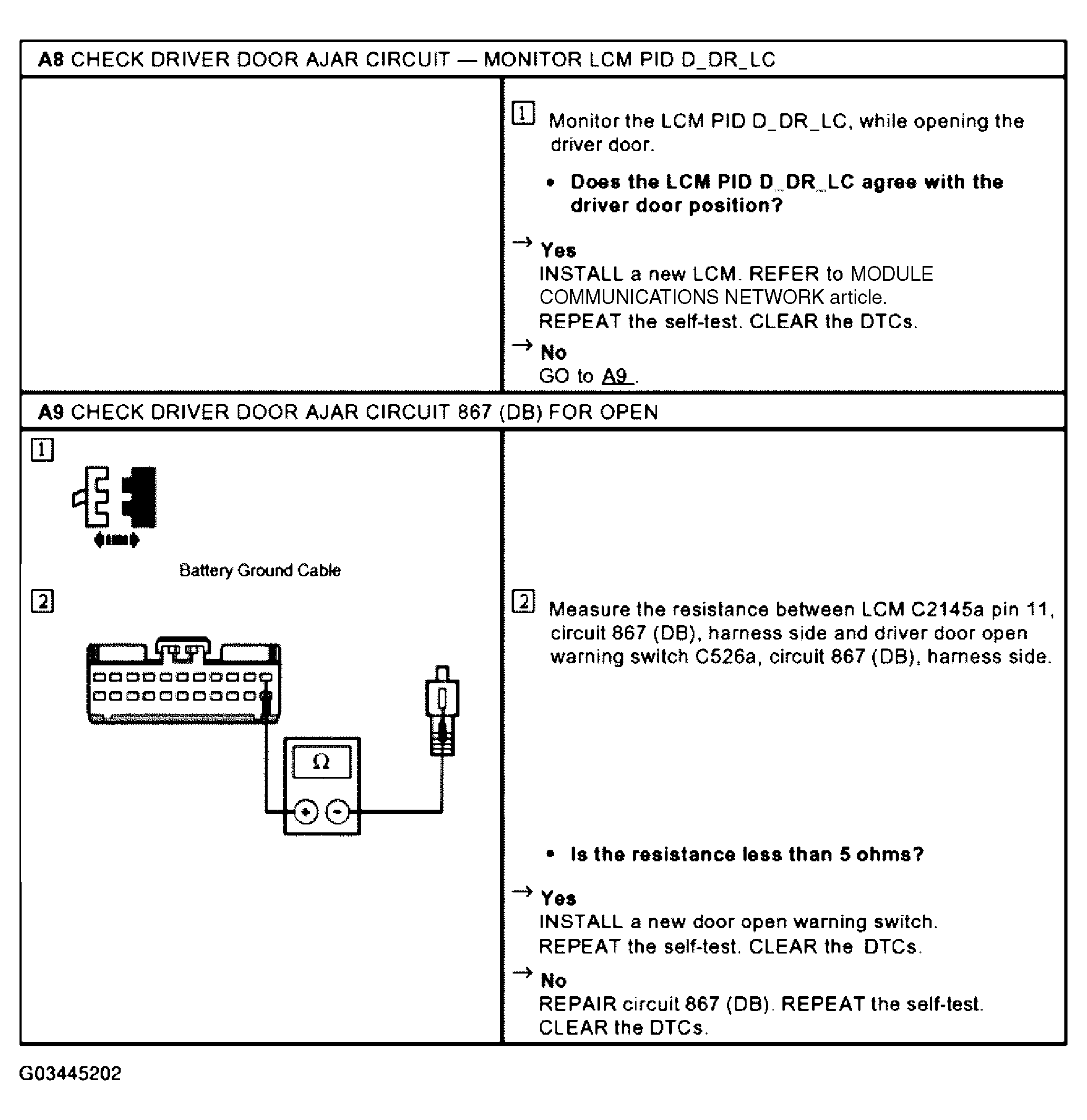

Fig 3: Pinpoint Test A: Courtesy Lamps Are Inoperative (A8 - A9)

Courtesy of FORD MOTOR CO.

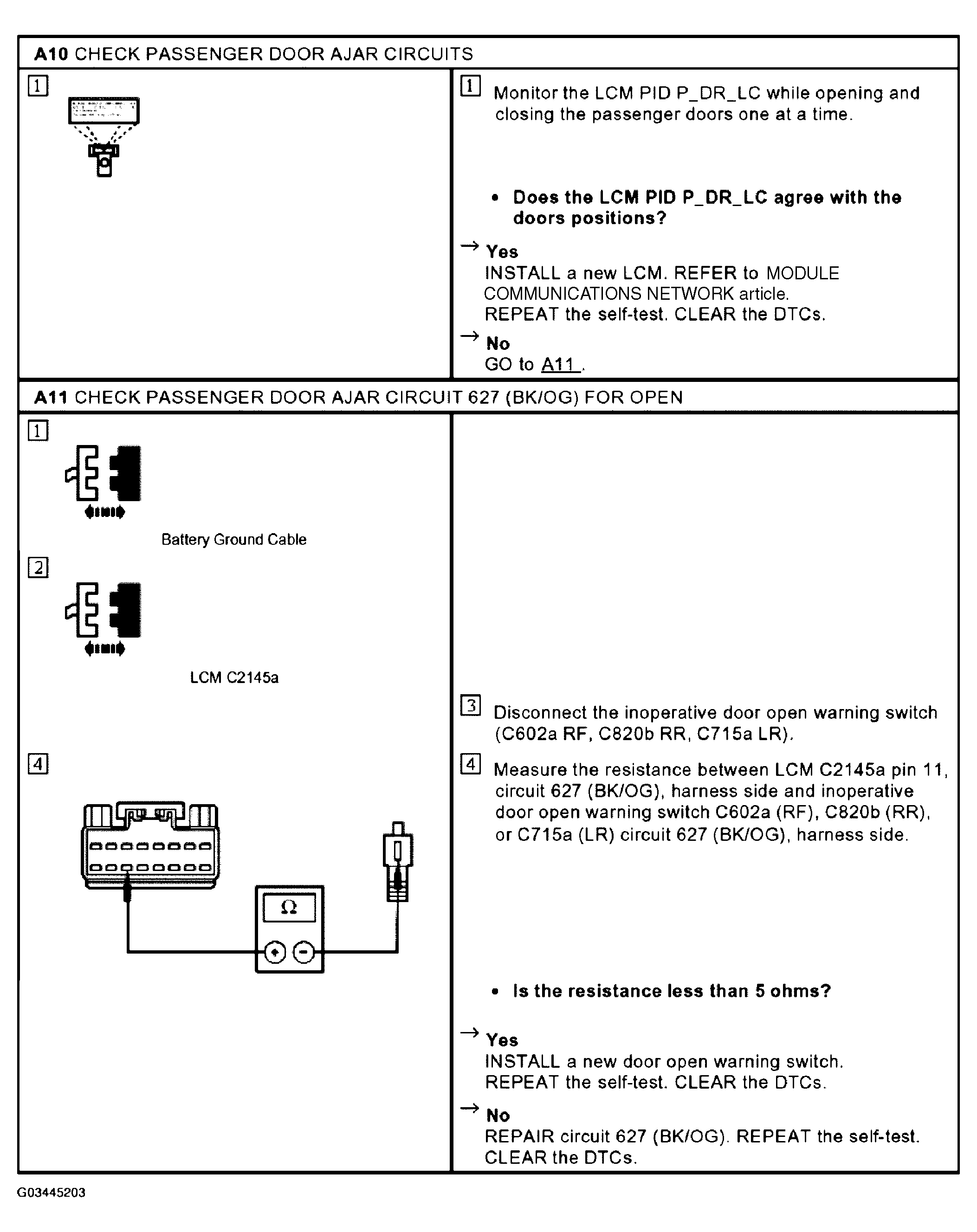

Fig 4: Pinpoint Test A: Courtesy Lamps Are Inoperative (A10 - A11)

Courtesy of FORD MOTOR CO.

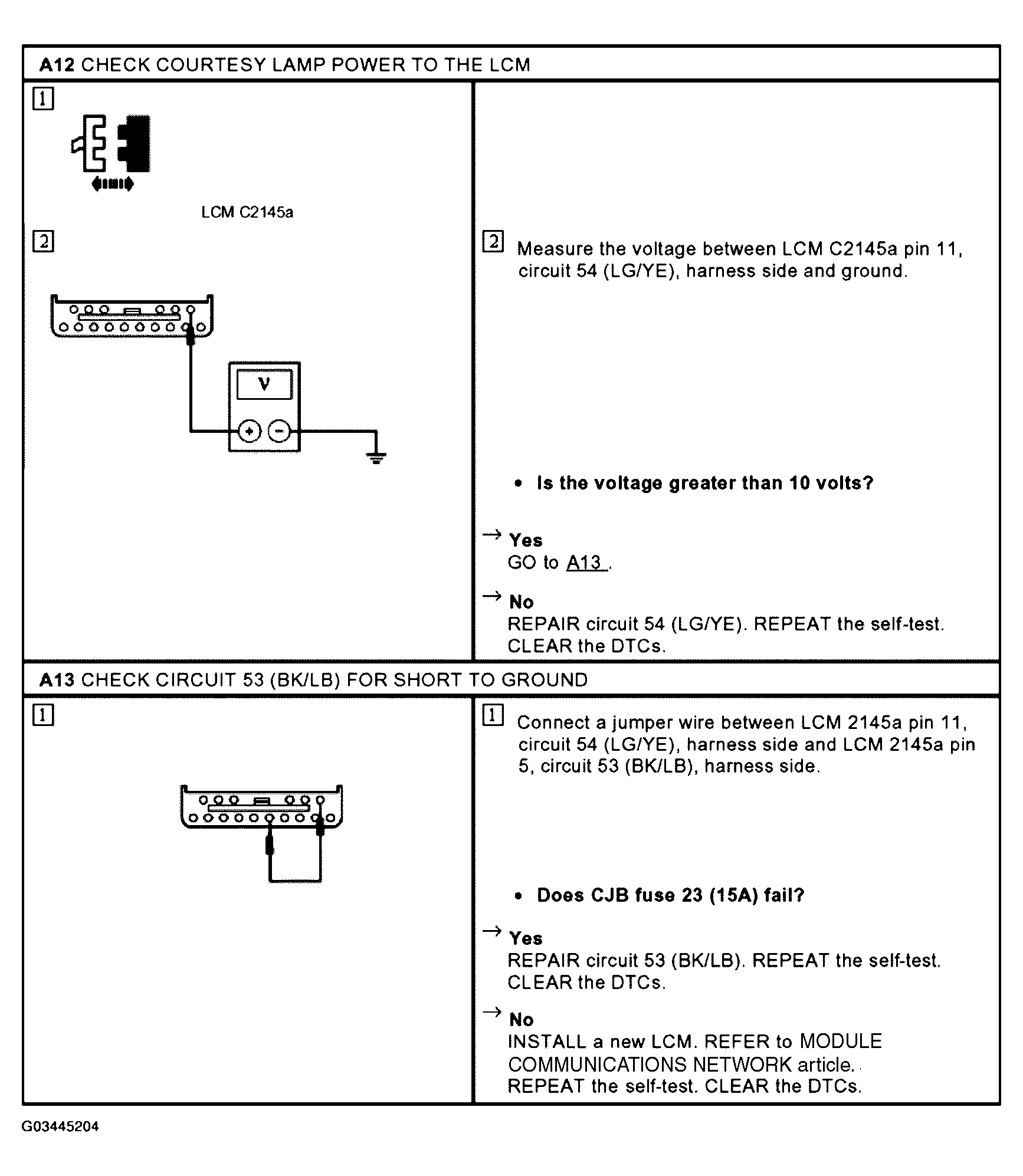

Fig 5: Pinpoint Test A: Courtesy Lamps Are Inoperative (A12 - A13)

Courtesy of FORD MOTOR CO.
