Pinpoint Test E: DTC 40, Compressor Relay Control Circuit Failure
Pinpoint Test E: DTC 40, Compressor Relay Control Circuit Failure

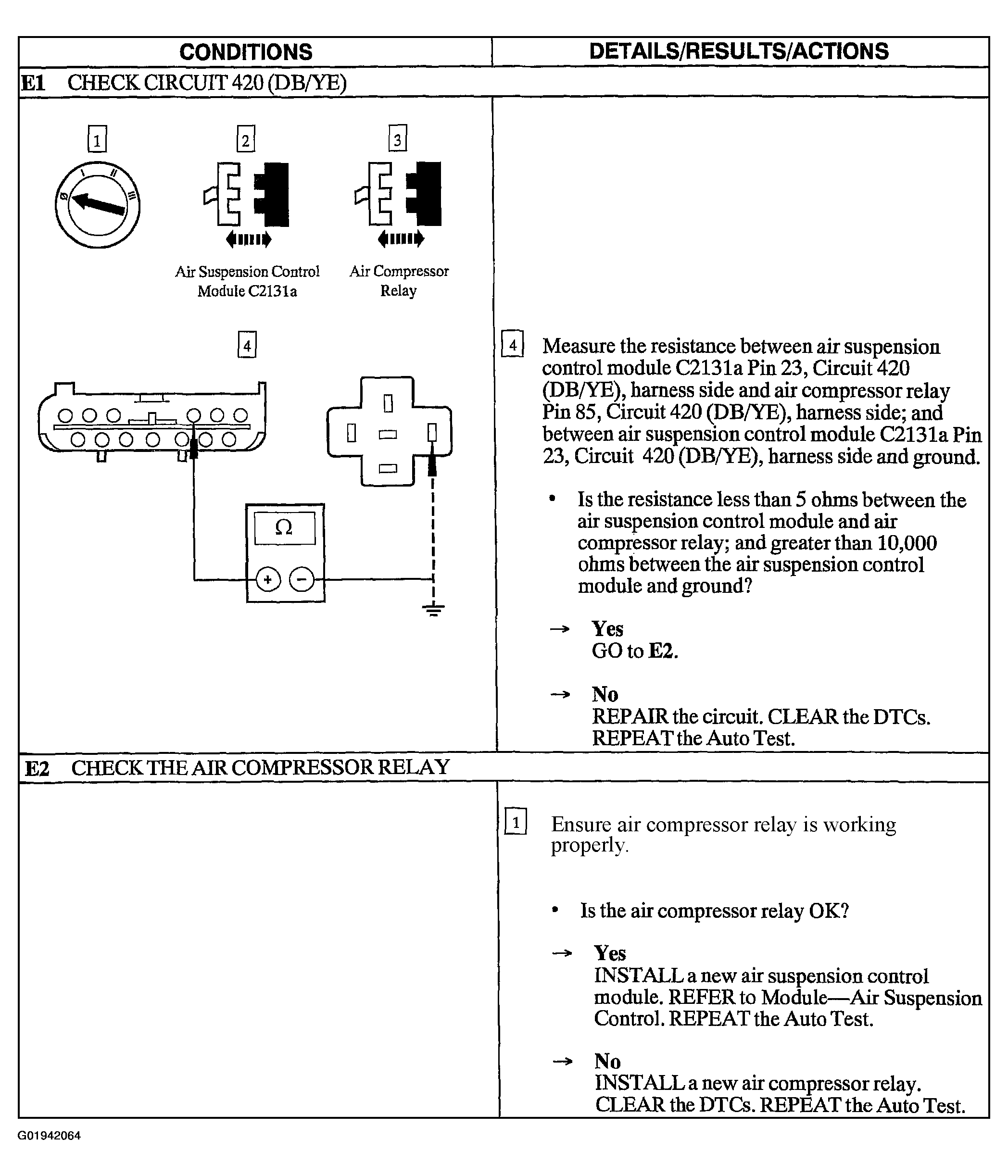

Fig 1: Pinpoint Test E: DTC 40, Compressor Relay Control Circuit Failure (Steps E1-E2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
