Pinpoint Test G: DTC 43, Air Spring Solenoid Circuit Short To Power

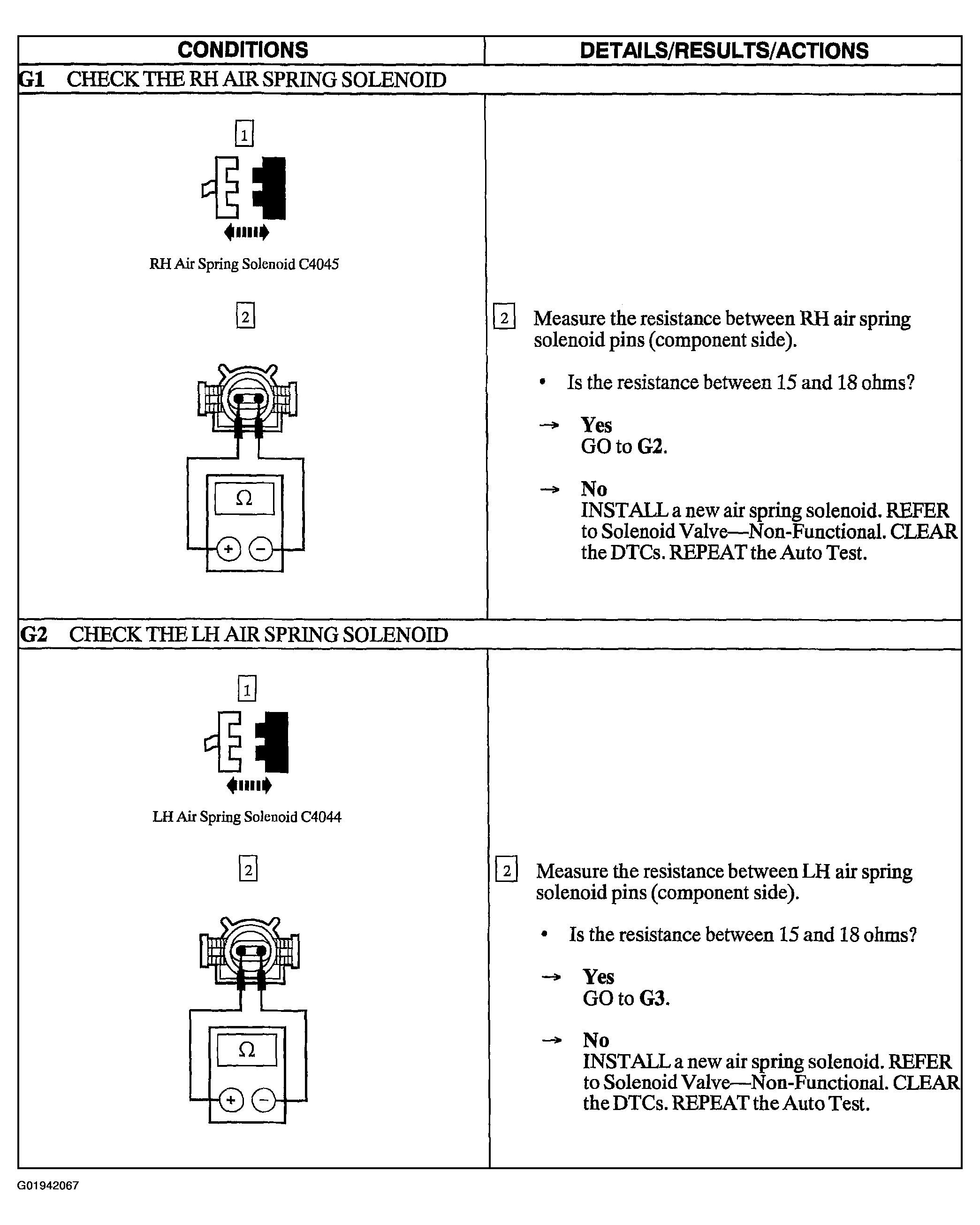

Fig 1: Pinpoint Test G: DTC 43, Air Spring Solenoid Circuit Short To Power (Steps G1-G2)

Courtesy of FORD MOTOR CO.

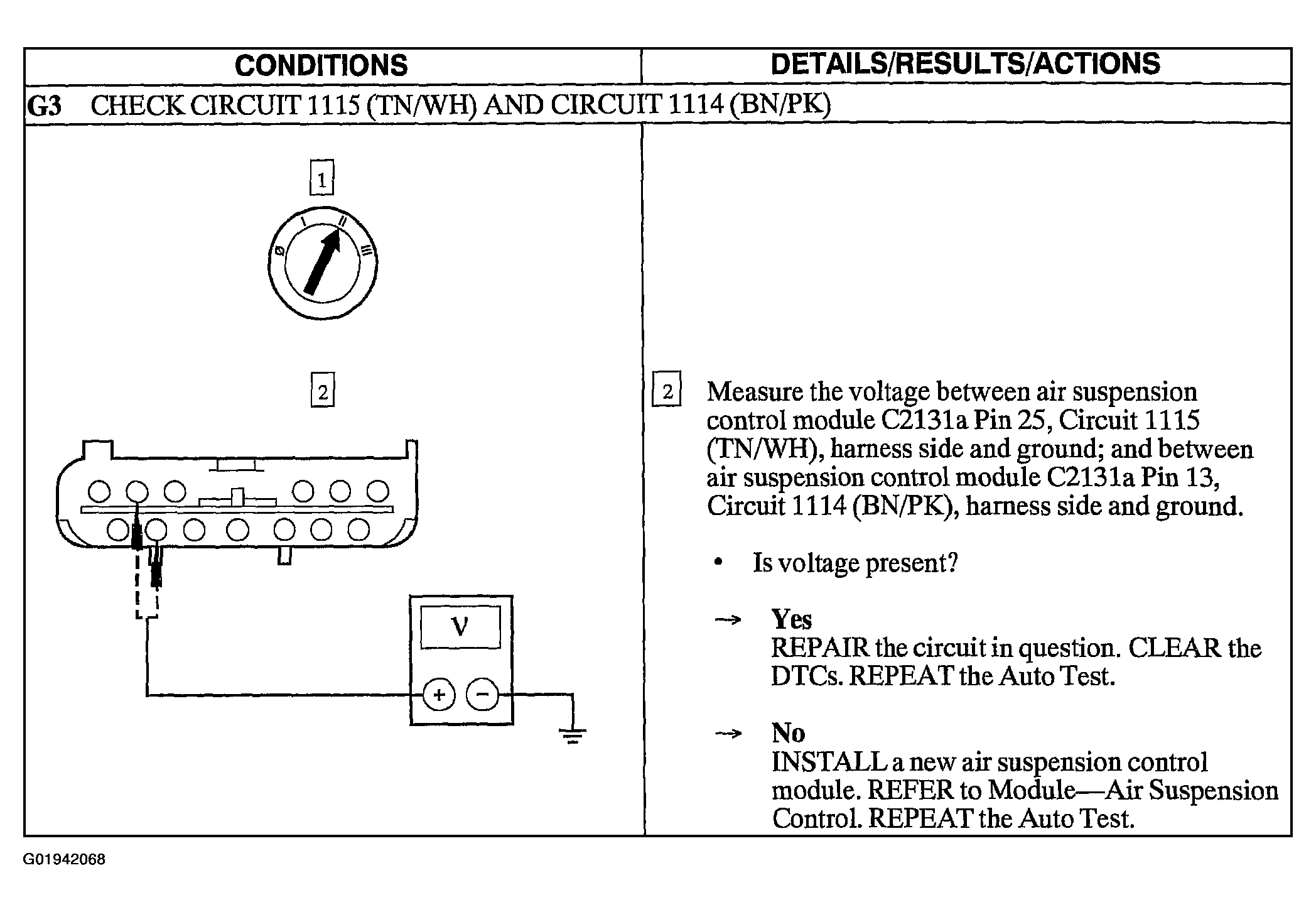

Fig 2: Pinpoint Test G: DTC 43, Air Spring Solenoid Circuit Short To Power (Step G3)

Courtesy of FORD MOTOR CO.
