Pinpoint Test H: DTC 44, Vent Solenoid Circuit Short To Power

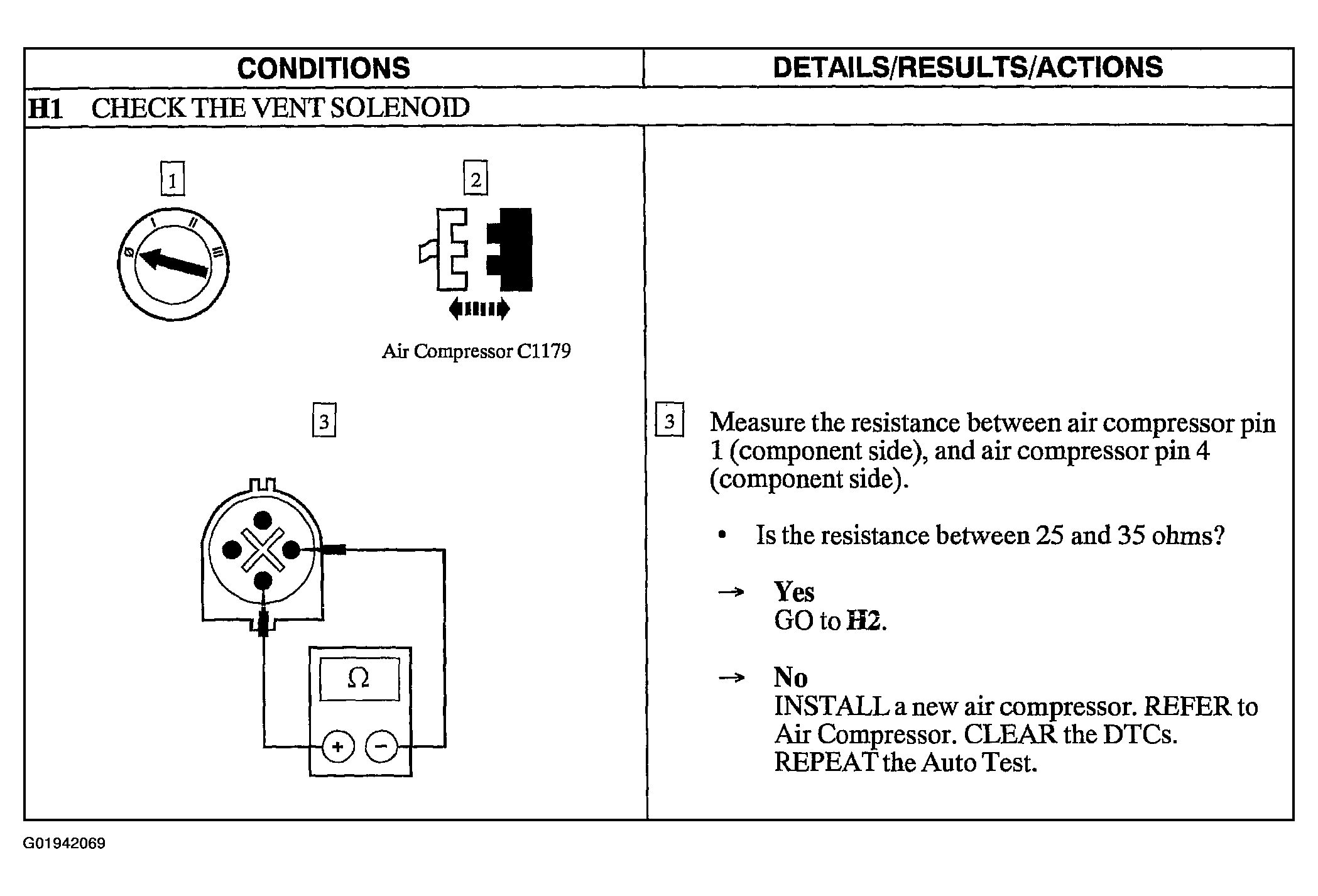

Fig 1: Pinpoint Test H: DTC 44, Vent Solenoid Circuit Short To Power (Step H1)

Courtesy of FORD MOTOR CO.

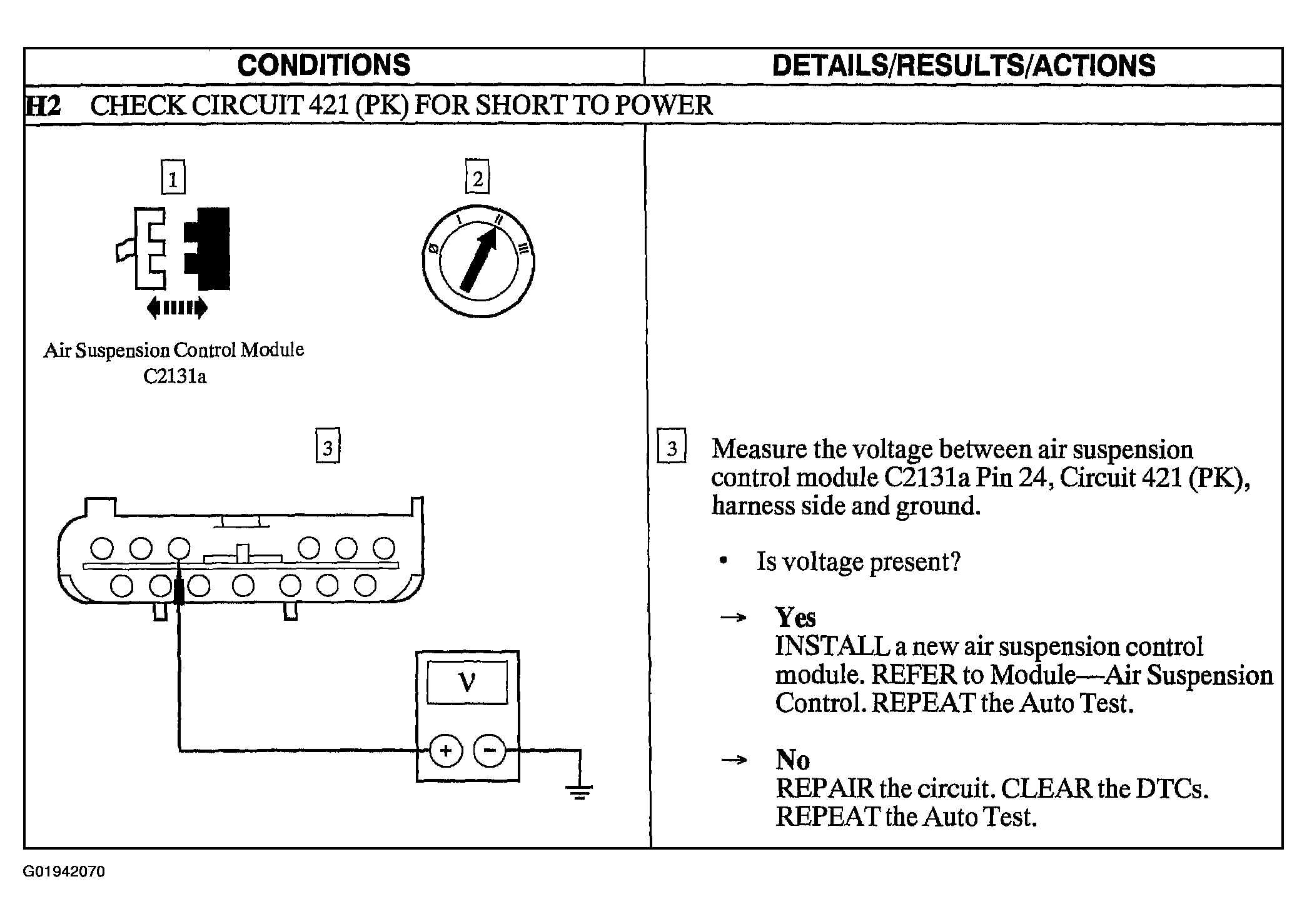

Fig 2: Pinpoint Test H: DTC 44, Vent Solenoid Circuit Short To Power (Step H2)

Courtesy of FORD MOTOR CO.
