Pinpoint Test J: DTC 46, Air Suspension Height Sensor Supply Circuit Failure

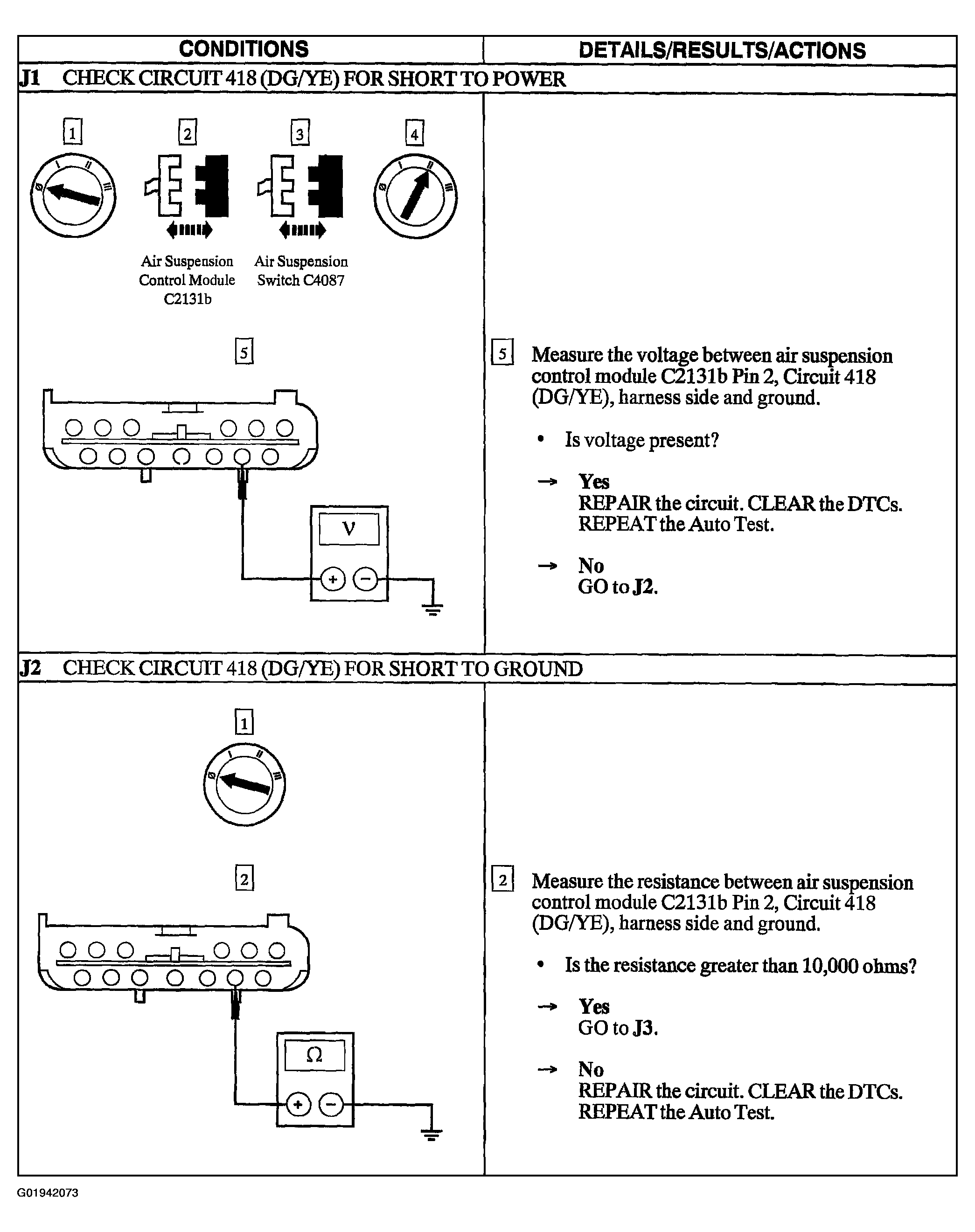

Fig 1: Pinpoint Test J: DTC 46, Air Suspension Height Sensor Supply Circuit Failure (Steps J1-J2)

Courtesy of FORD MOTOR CO.

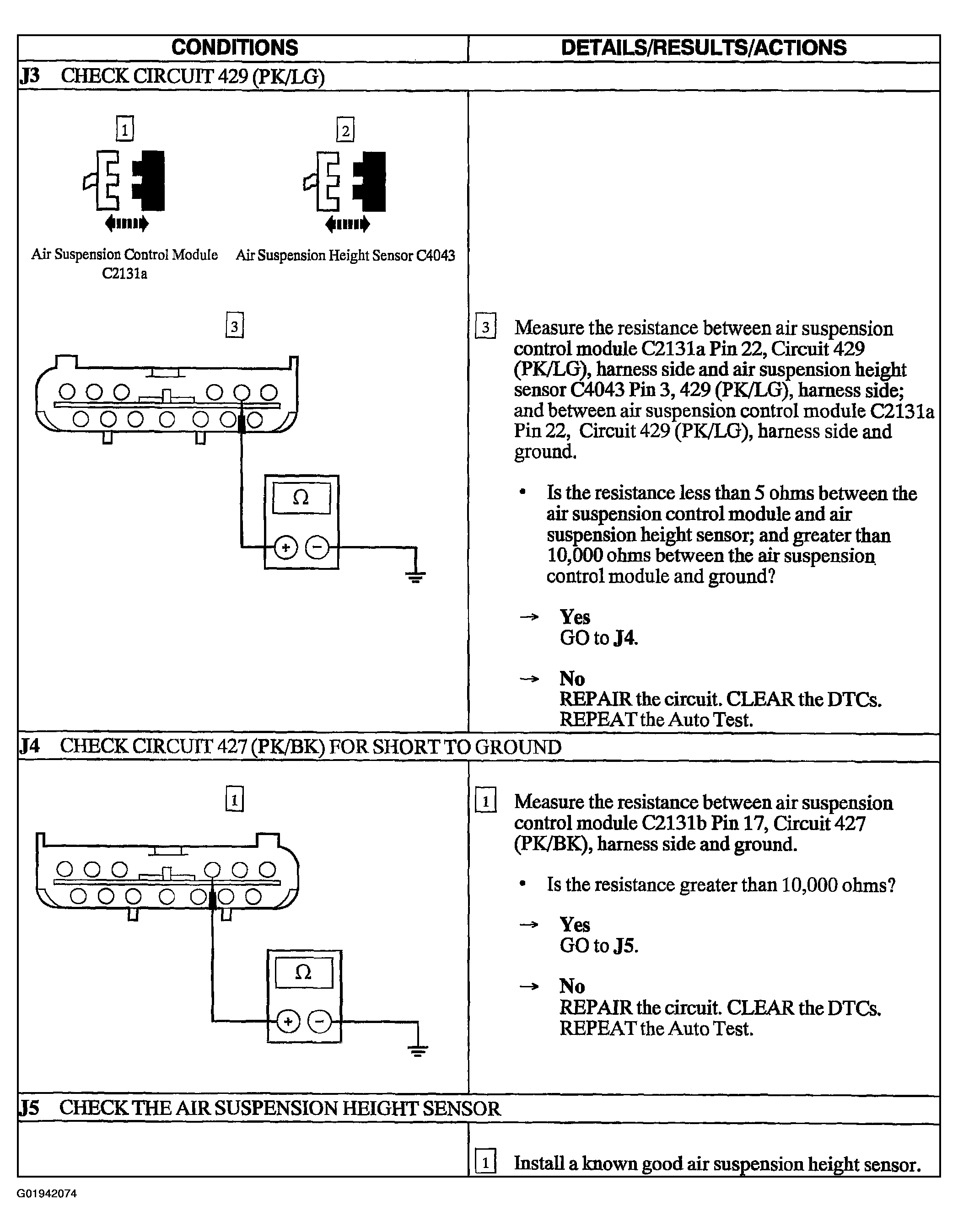

Fig 2: Pinpoint Test J: DTC 46, Air Suspension Height Sensor Supply Circuit Failure (Steps J3-J5)

Courtesy of FORD MOTOR CO.

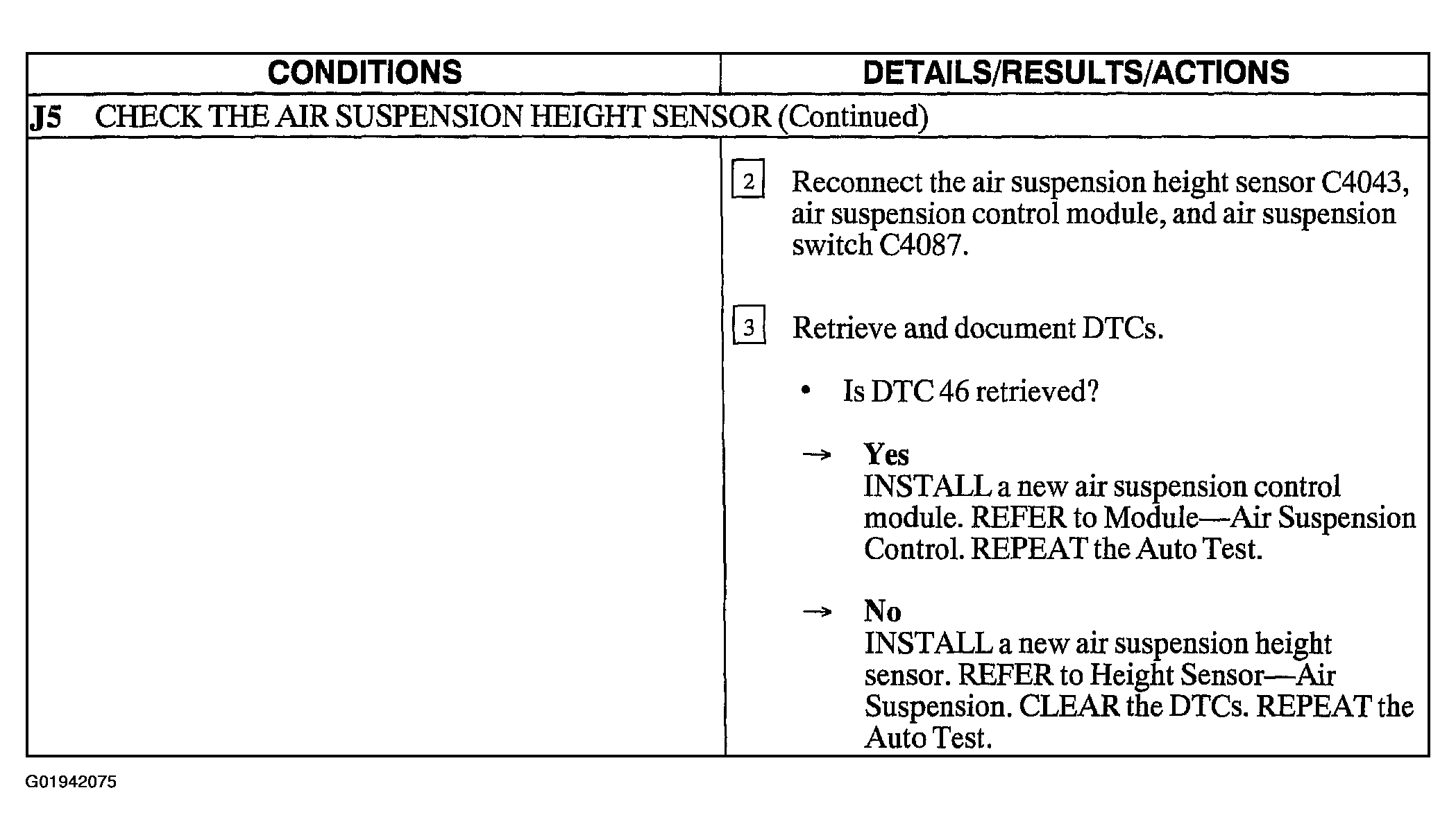

Fig 3: Pinpoint Test J: DTC 46, Air Suspension Height Sensor Supply Circuit Failure (Step J5 Cont.)

Courtesy of FORD MOTOR CO.
