Pinpoint Test L: DTC 54, Unable To Detect Raising Of Rear

NOTE: REPAIR all other DTCs first.

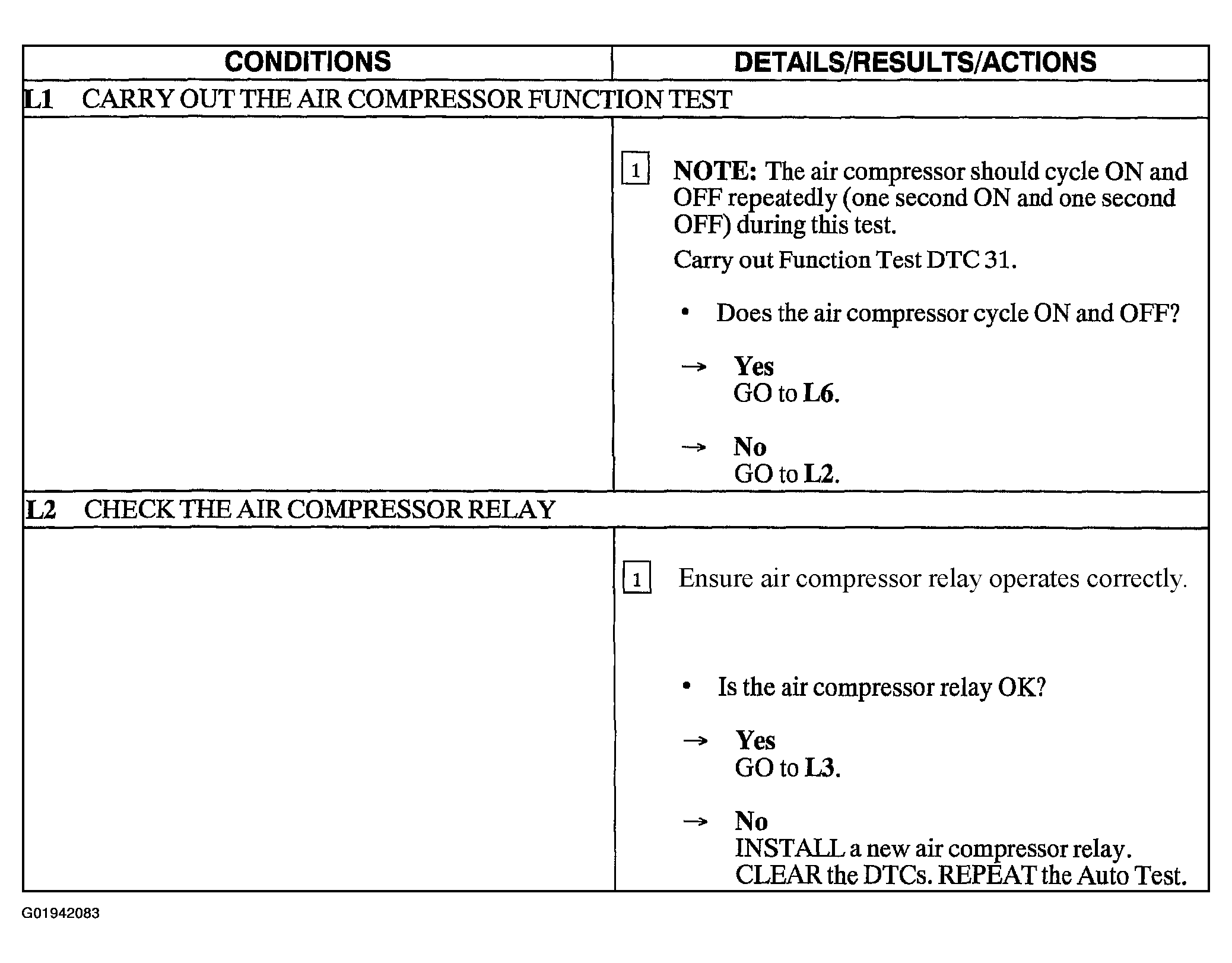

Fig 1: Pinpoint Test L: DTC 54, Unable To Detect Raising Of Rear (Steps L1-L2)

Courtesy of FORD MOTOR CO.

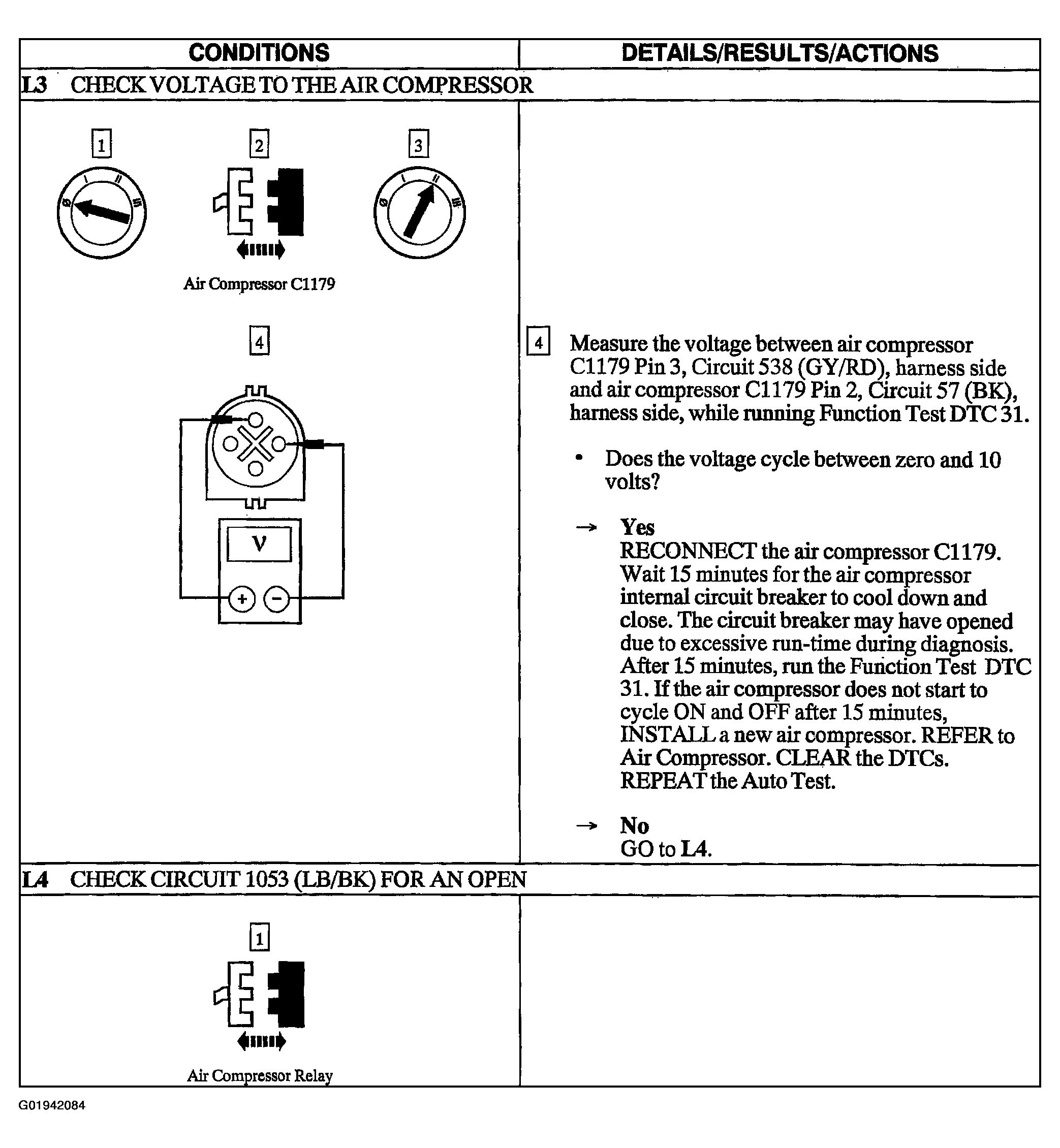

Fig 2: Pinpoint Test L: DTC 54, Unable To Detect Raising Of Rear (Steps L3-L4)

Courtesy of FORD MOTOR CO.

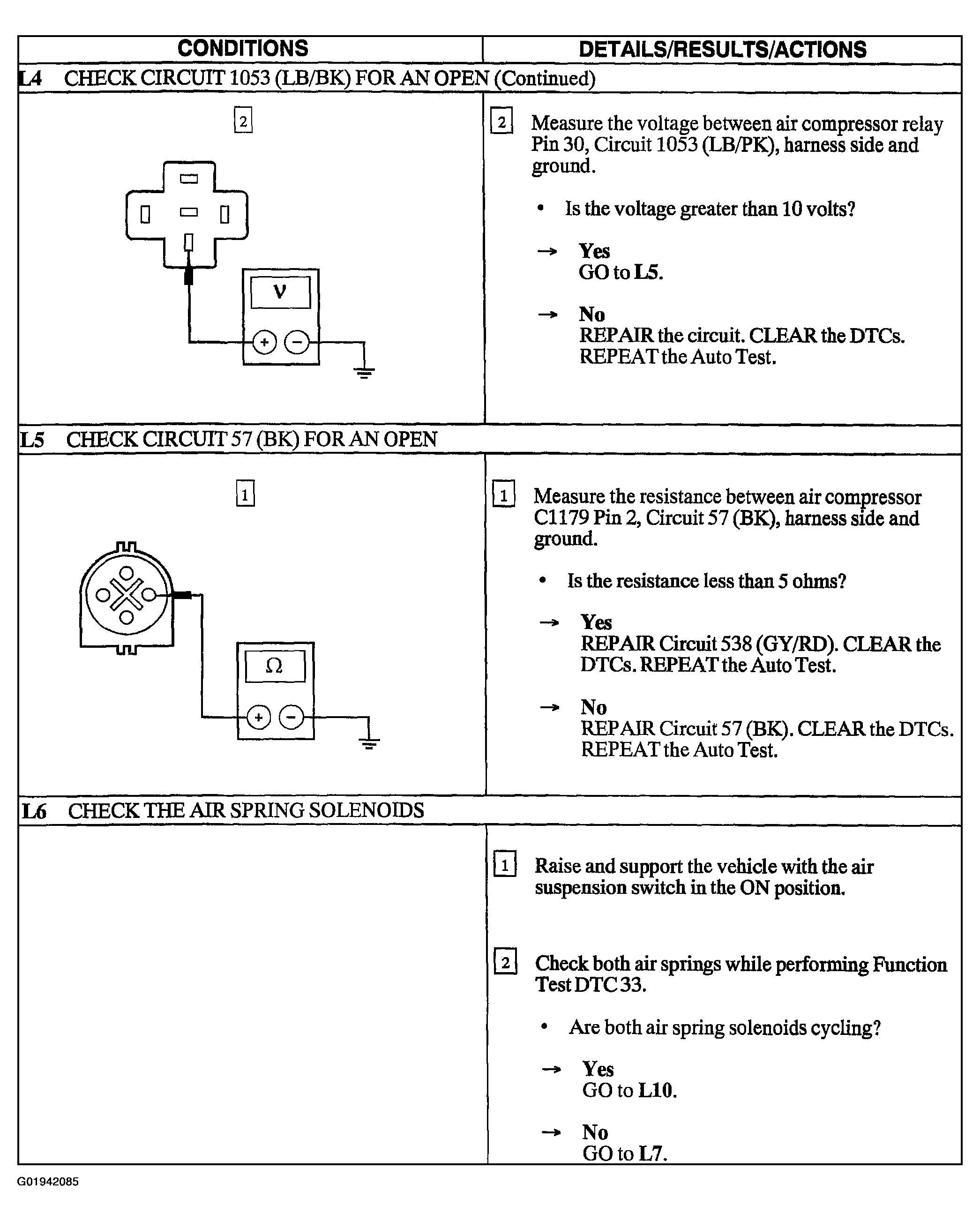

Fig 3: Pinpoint Test L: DTC 54, Unable To Detect Raising Of Rear (Steps L4 Cont.-L6)

Courtesy of FORD MOTOR CO.

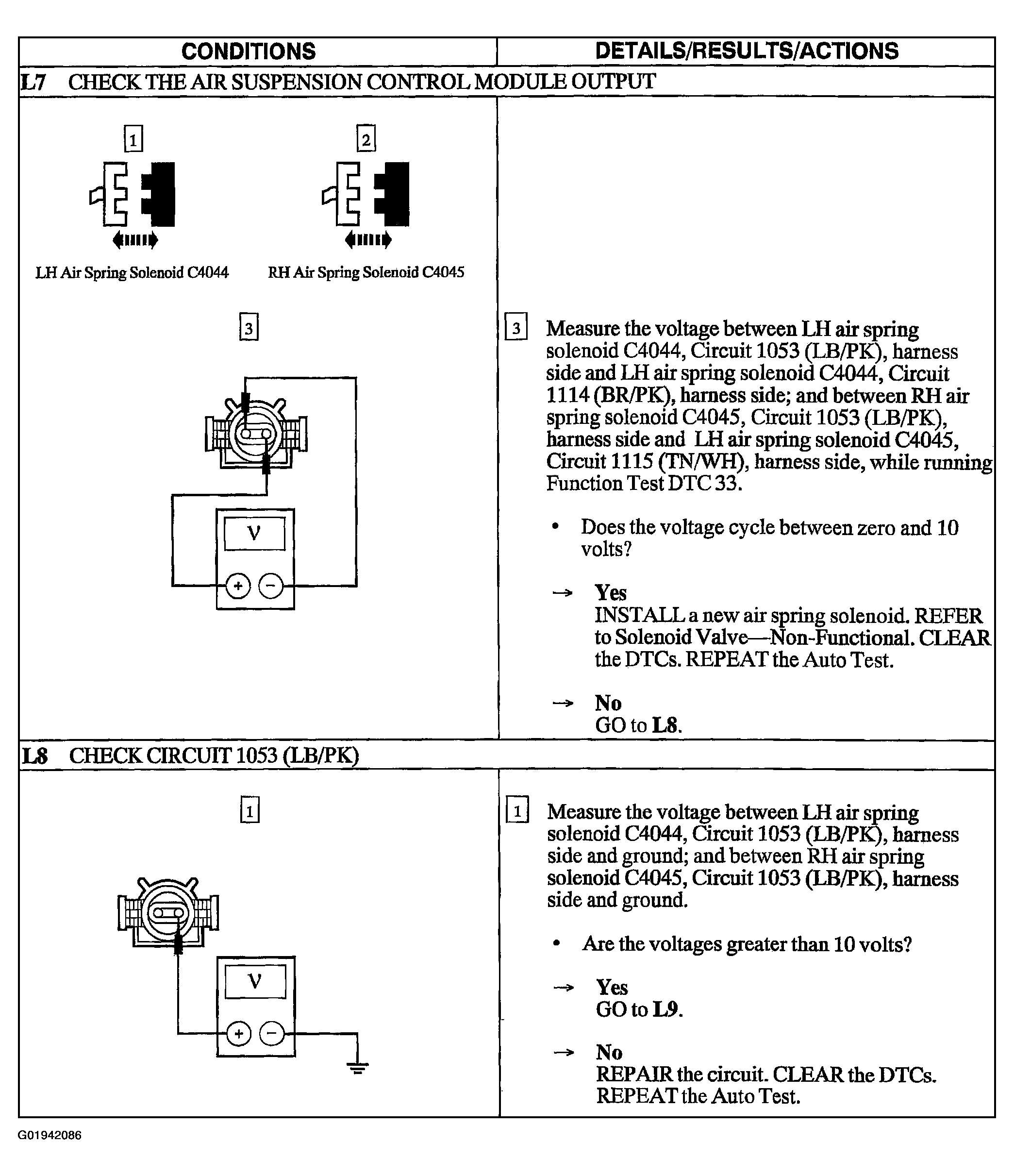

Fig 4: Pinpoint Test L: DTC 54, Unable To Detect Raising Of Rear (Steps L7-L8)

Courtesy of FORD MOTOR CO.

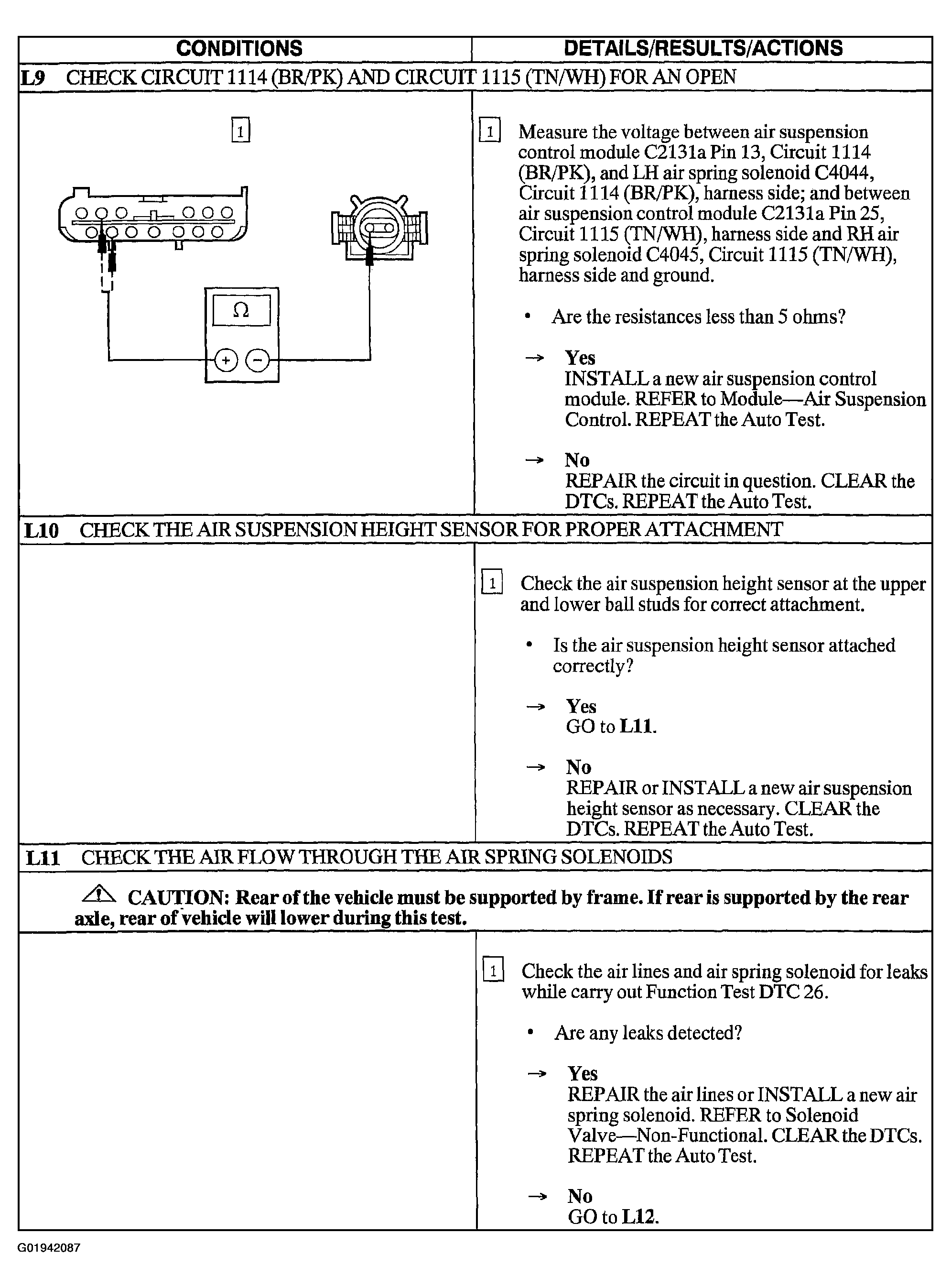

Fig 5: Pinpoint Test L: DTC 54, Unable To Detect Raising Of Rear (Steps L9-L11)

Courtesy of FORD MOTOR CO.

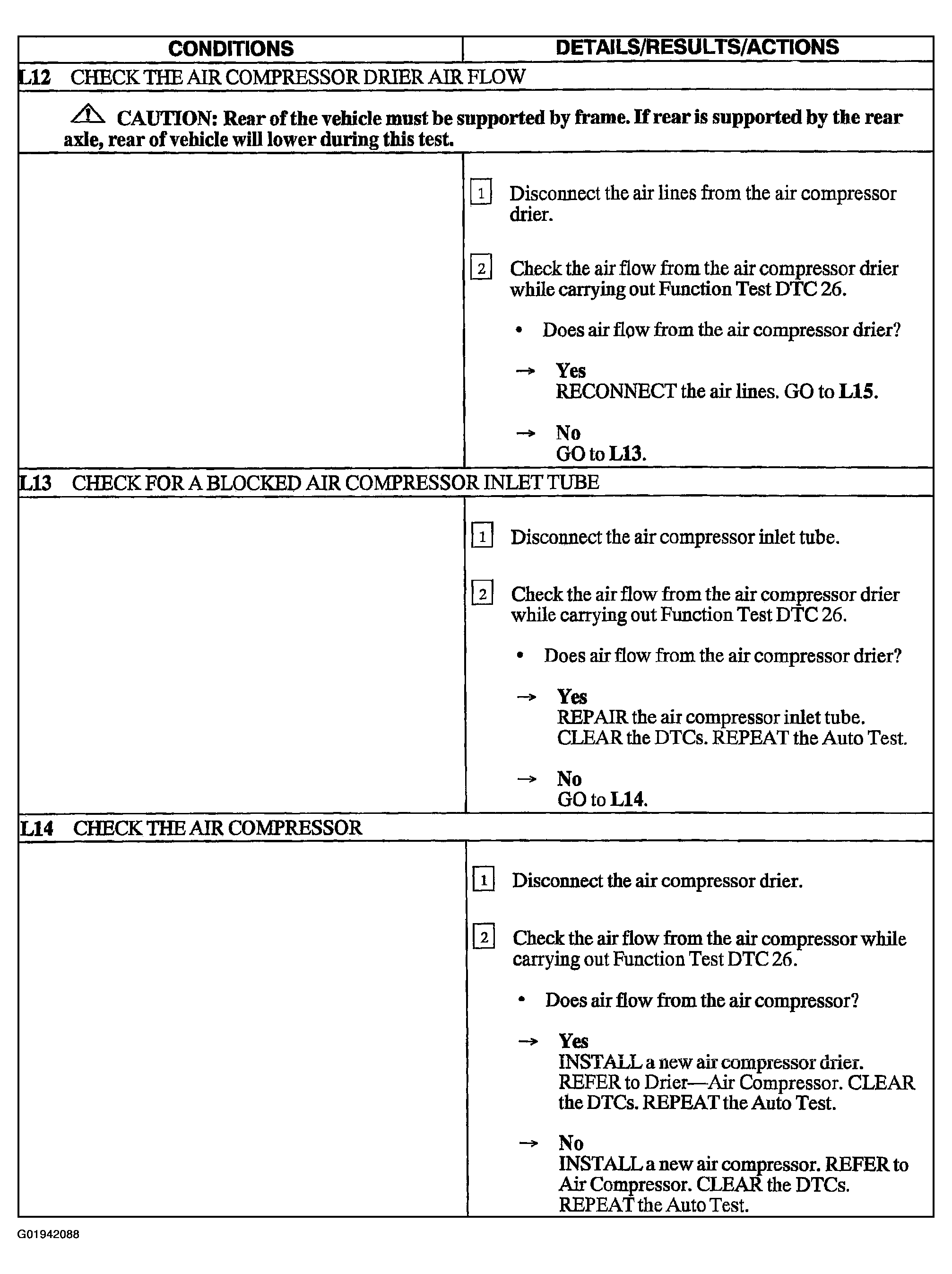

Fig 6: Pinpoint Test L: DTC 54, Unable To Detect Raising Of Rear (Steps L12-L14)

Courtesy of FORD MOTOR CO.

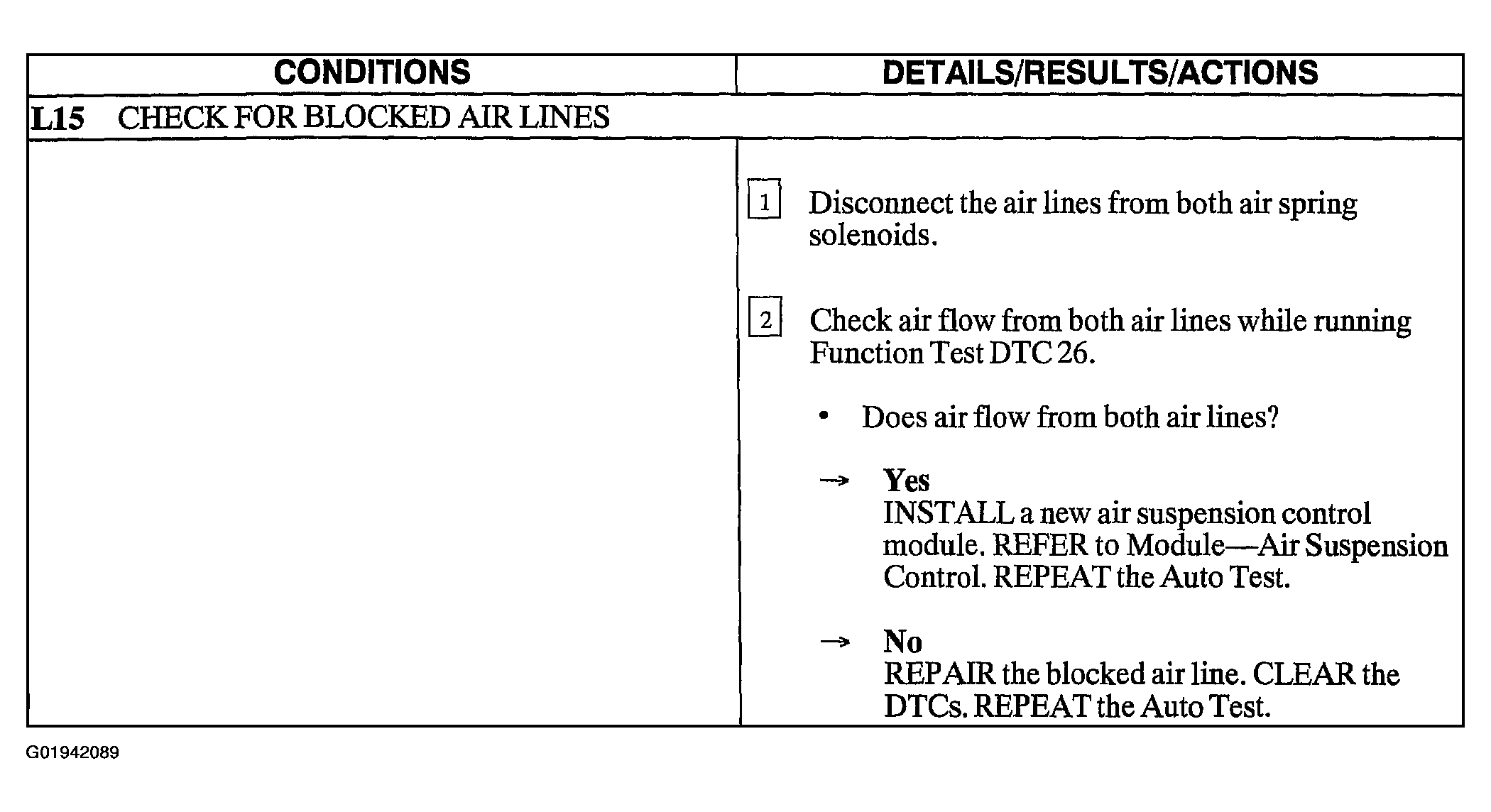

Fig 7: Pinpoint Test L: DTC 54, Unable To Detect Raising Of Rear (Step L15)

Courtesy of FORD MOTOR CO.
