Pinpoint Test M: DTC 55, Unable To Detect Vehicle Speed Greater Than 24 Km/H (15 mph)

NOTE: Vehicle must be driven over 24 km/h (15 mph) before proceeding.

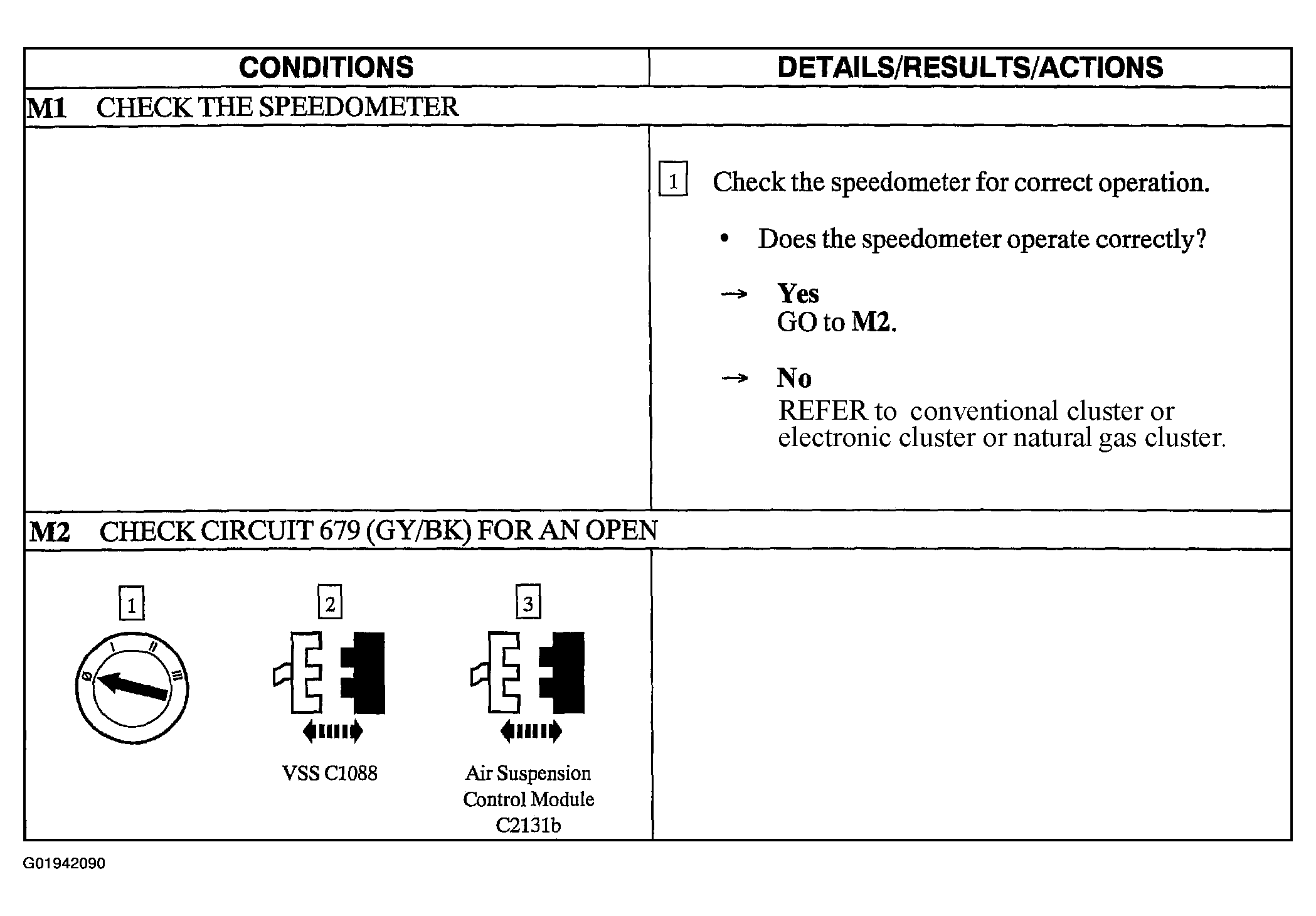

Fig 1: Pinpoint Test M: DTC 55, Unable To Detect Vehicle Speed Greater Than 24 Km/H (15 mph) (Steps M1-M2)

Courtesy of FORD MOTOR CO.

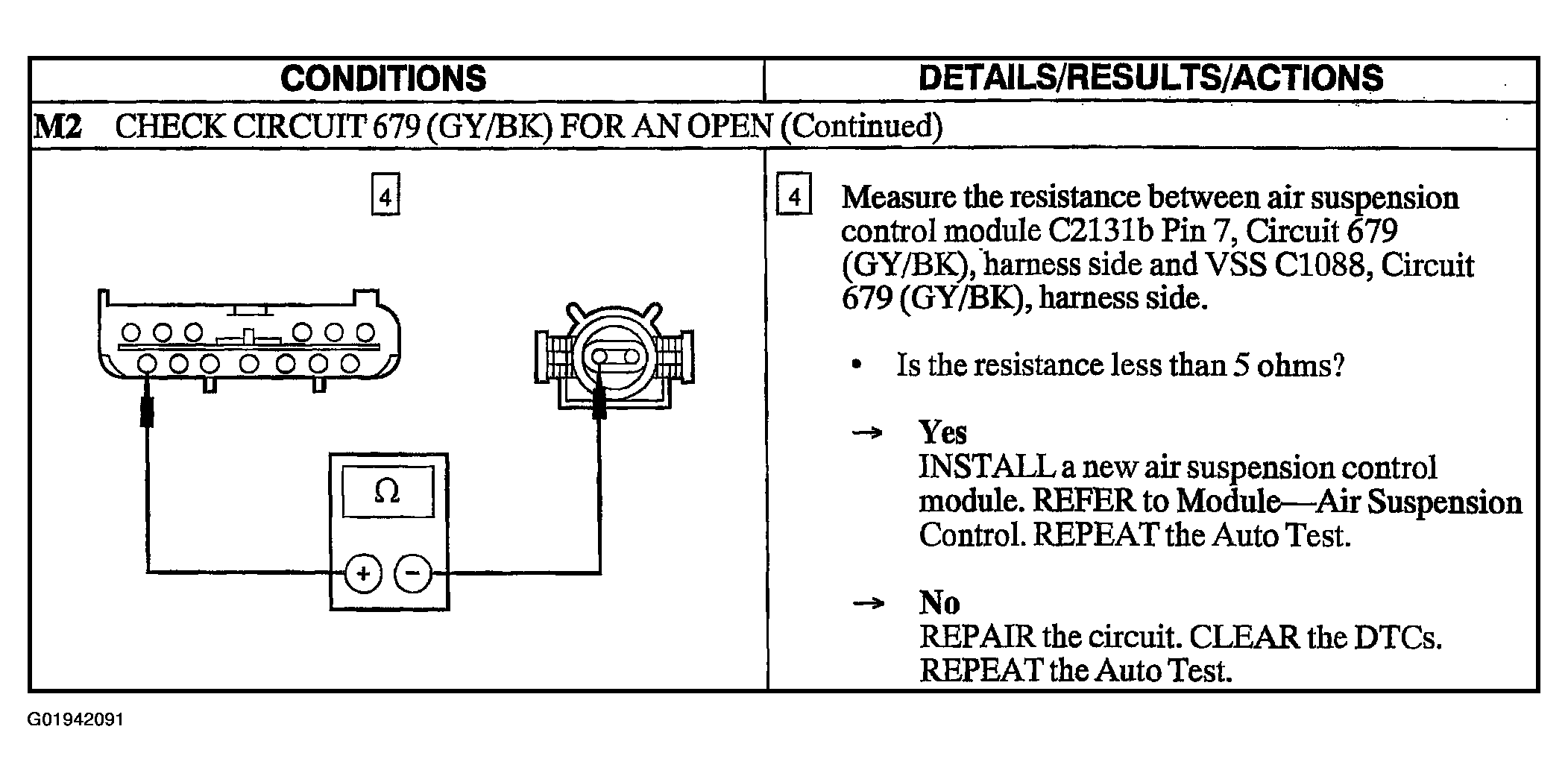

Fig 2: Pinpoint Test M: DTC 55, Unable To Detect Vehicle Speed Greater Than 24 Km/H (15 mph) (Step M2 Cont.)

Courtesy of FORD MOTOR CO.
