Drier - Air Compressor: Removal

  1. Remove the air compressor. Refer to AIR COMPRESSOR .
  2. Remove the air compressor drier.
    1. Remove the screw.
    2. Rotate 90° to unlock then remove the air compressor drier.

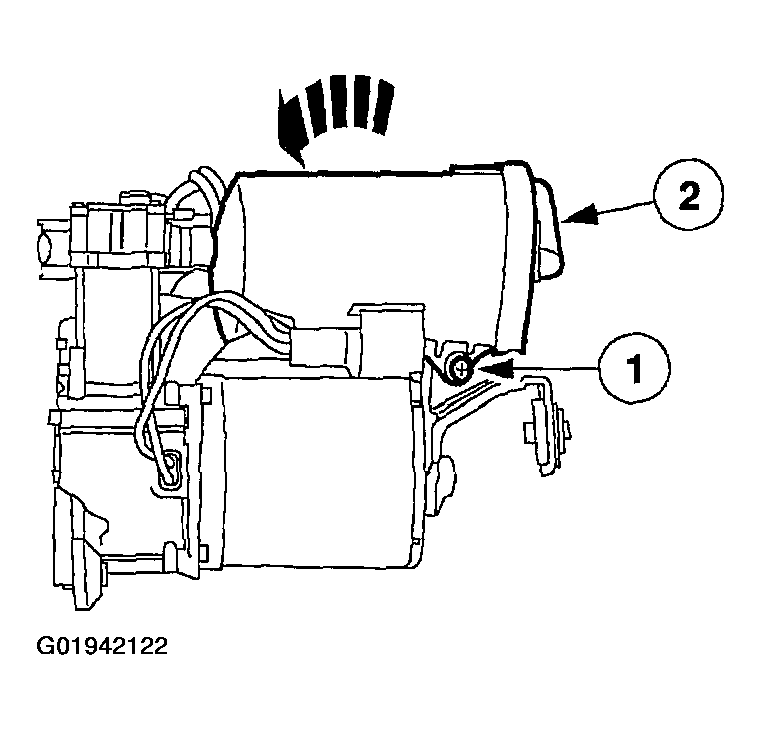

    Fig 1: Identifying Air Compressor Drier Screw & Air Compressor Drier
    G01942122Courtesy of FORD MOTOR CO.
