Height Sensor - Air Suspension: Removal

  1. Disconnect the battery ground cable.
  2. Turn the air suspension switch off.
  3. Raise and support the vehicle.
  4. Disconnect the air suspension height sensor electrical connector.

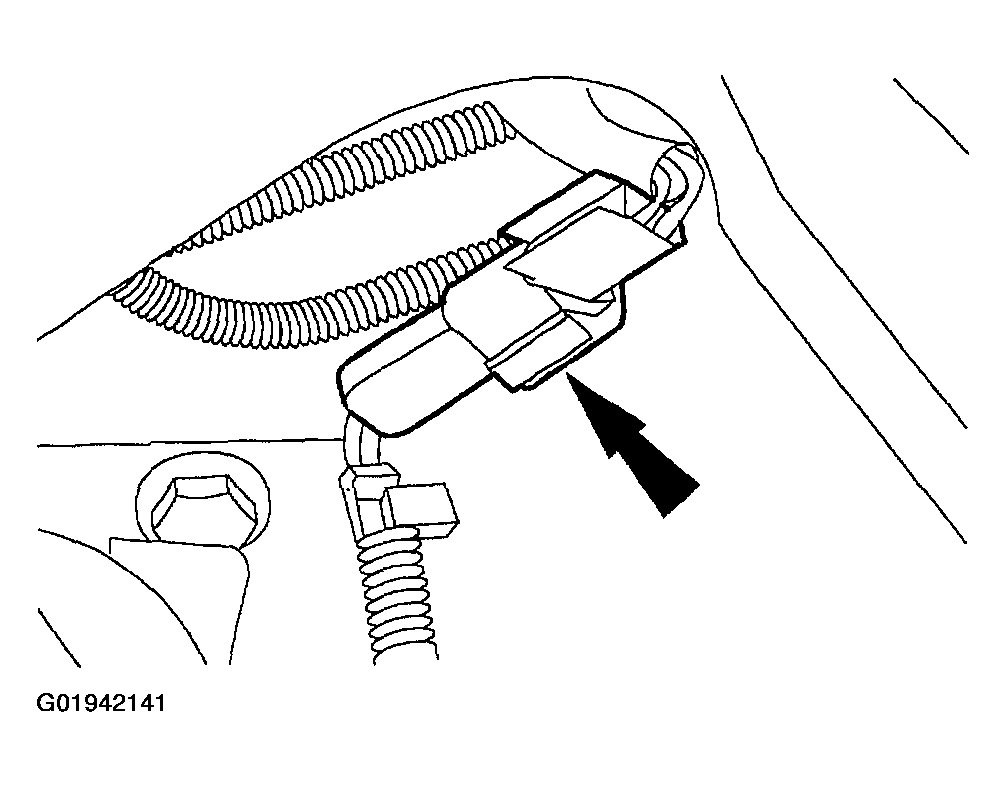

    Fig 1: Identifying Air Suspension Height Sensor Electrical Connector
    G01942141Courtesy of FORD MOTOR CO.
  5. Remove the air suspension height sensor.
    • Depress the metal retaining tabs and remove the air suspension height sensor from the ball studs.

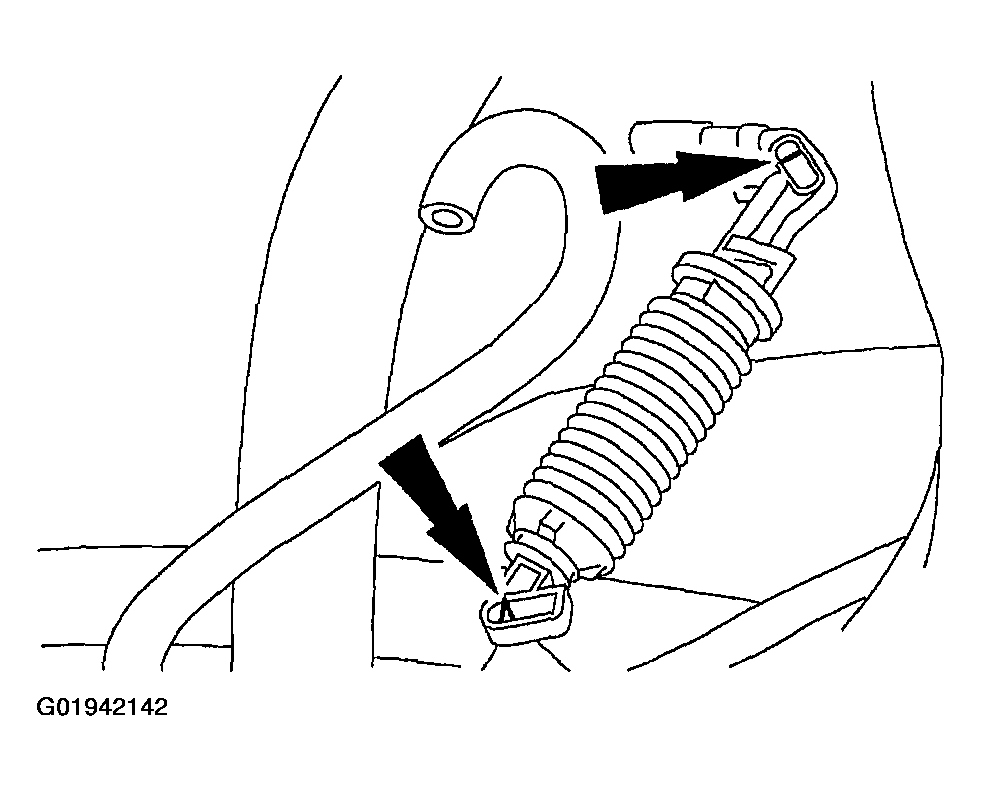

    Fig 2: Identifying Air Suspension Height Sensor Metal Retaining Tabs
    G01942142Courtesy of FORD MOTOR CO.
