Power Steering
>>
Power Steering - Mechanical System
Power Steering - Mechanical System

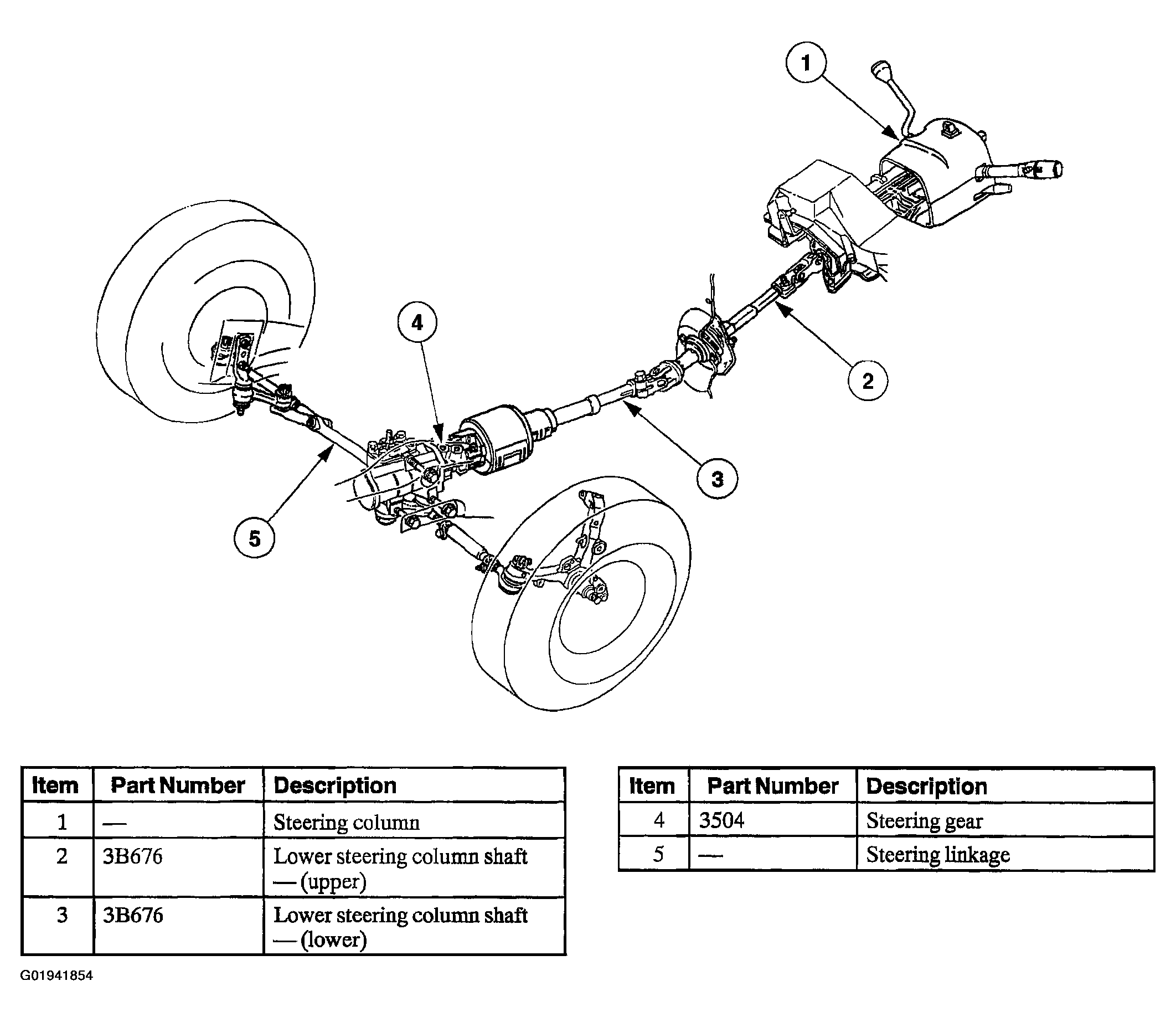

Fig 1: Identifying Power Steering Mechanical System
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
