Pinpoint Test I: DTC B1687 Or DTC B1685: Dome Lamp Input Failure

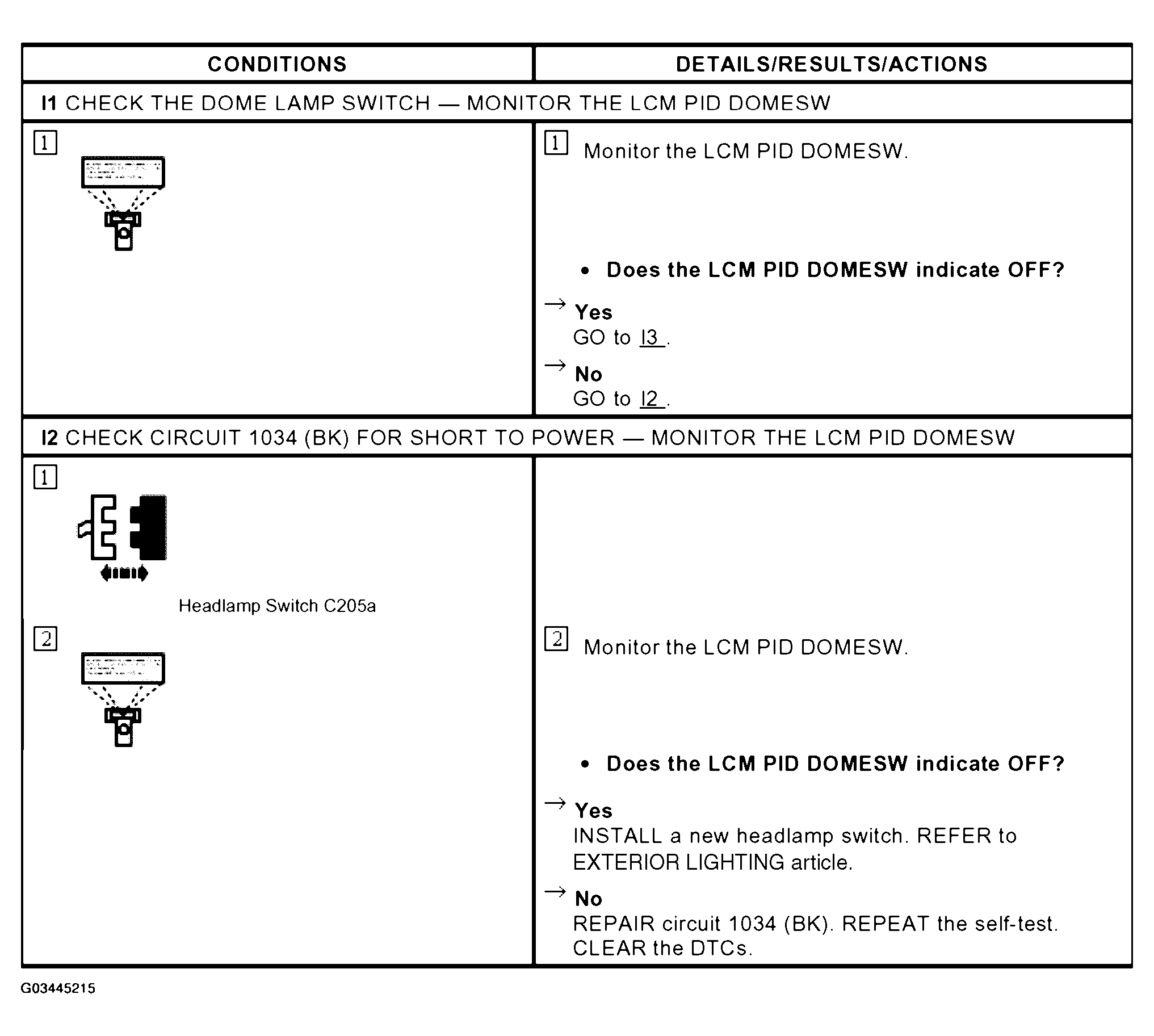

Fig 1: Pinpoint Test I: DTC B1687 Or DTC B1685: Dome Lamp Input Failure (I1 - I2)
G03445215Courtesy of FORD MOTOR CO.

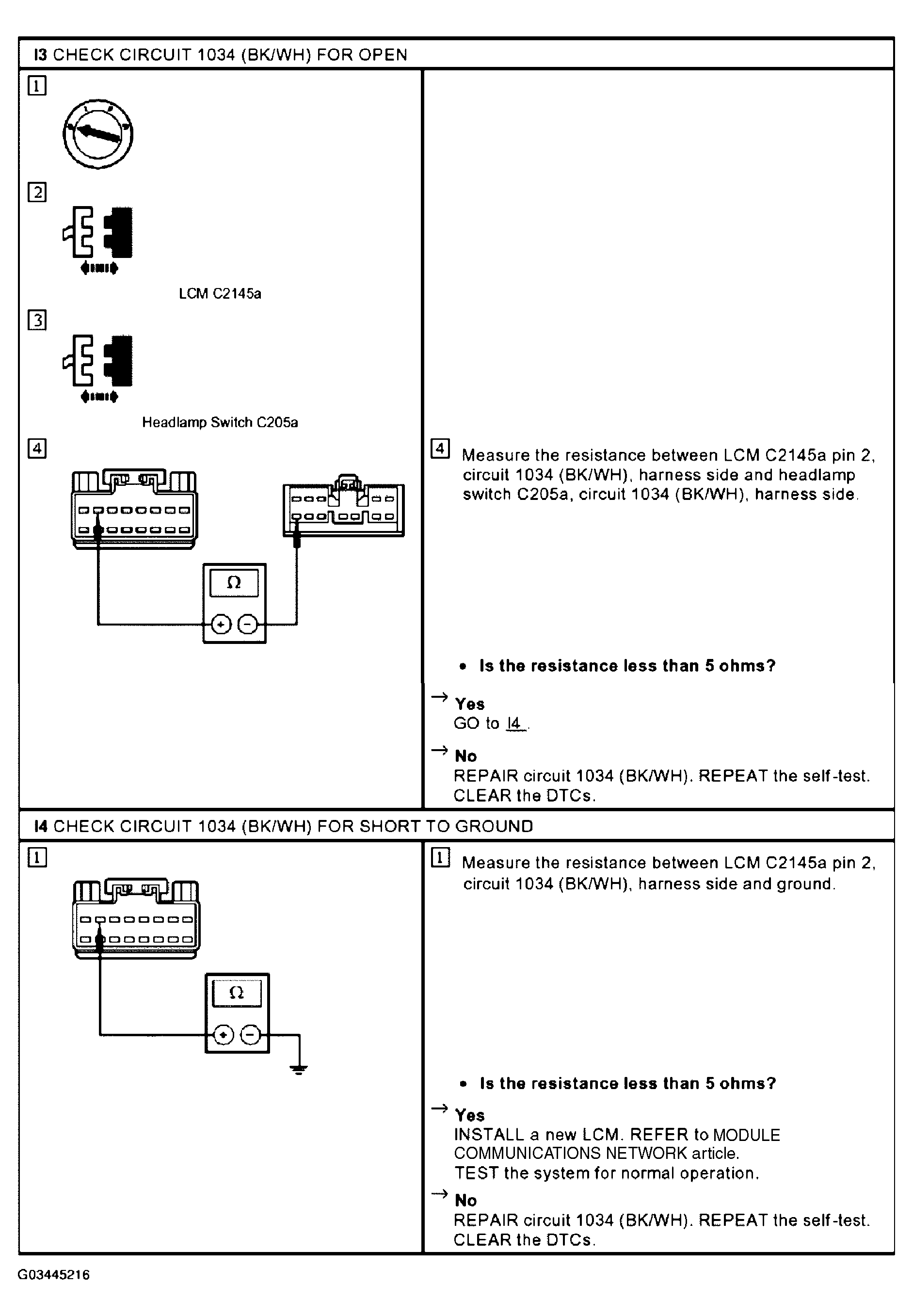

Fig 2: Pinpoint Test I: DTC B1687 Or DTC B1685: Dome Lamp Input Failure (I3 - I4)
G03445216Courtesy of FORD MOTOR CO.
