Removal & Installation: Pump: Installation

Follow the removal procedure in reverse order.
- Install new seal rings as necessary. For additional information, refer to HOSE .

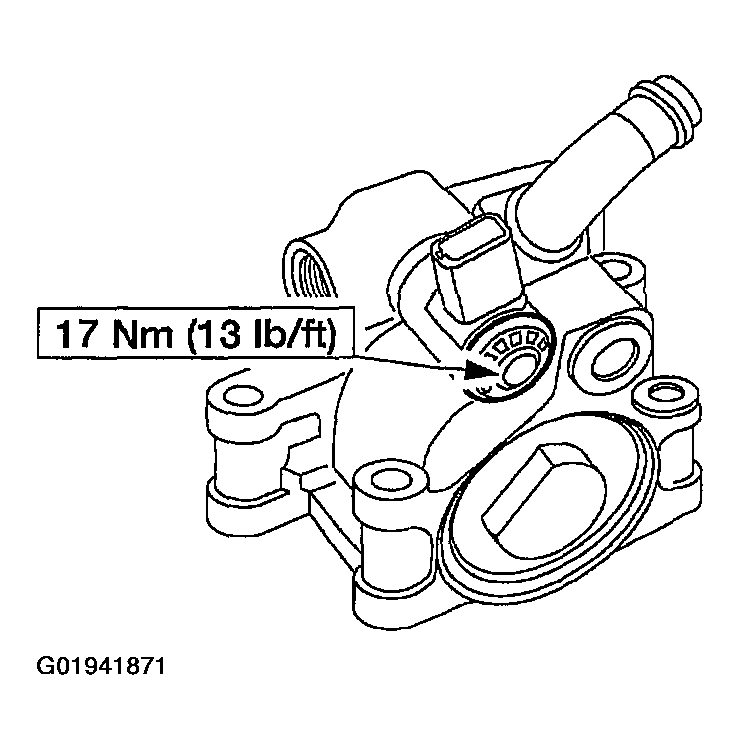

Fig 1: Tightening Power Steering Auxiliary Actuator
Courtesy of FORD MOTOR CO.

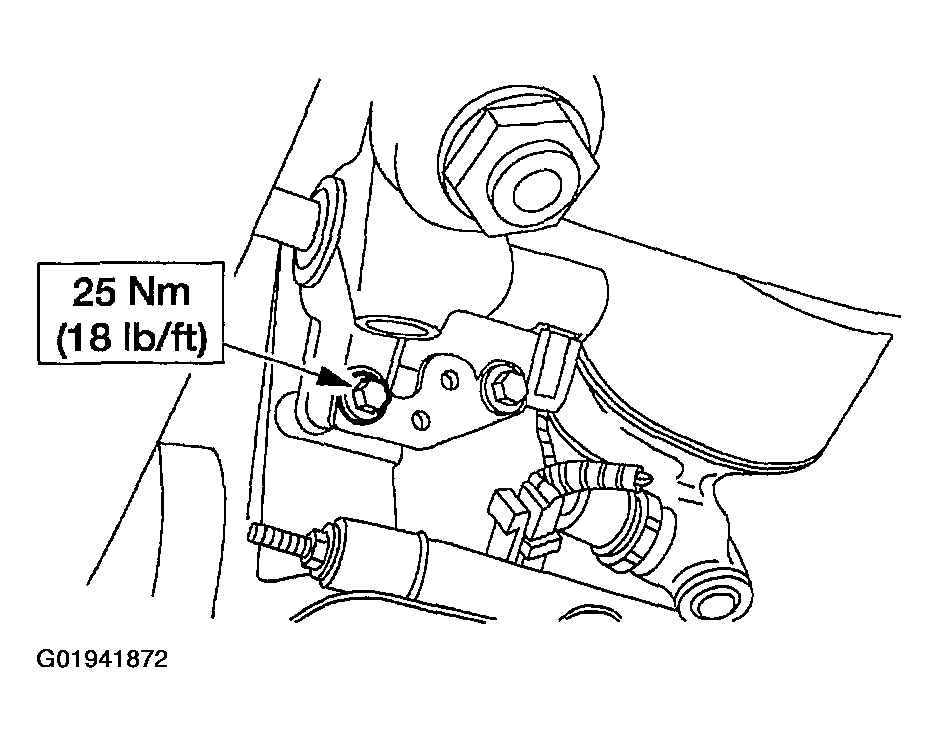

Fig 2: Tightening Power Steering Pump Bolts
Courtesy of FORD MOTOR CO.

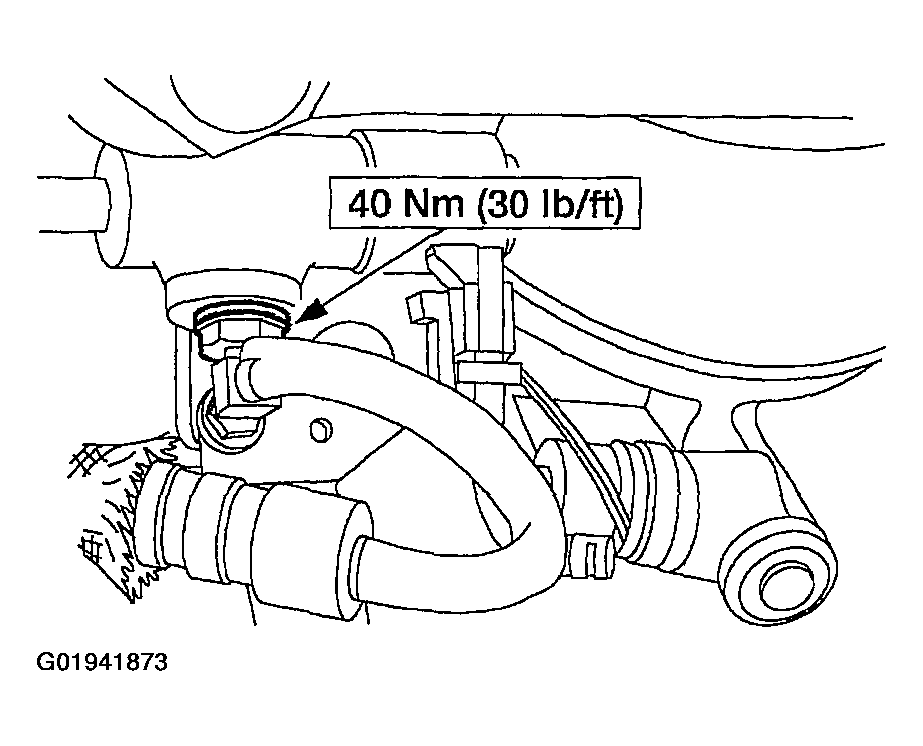

Fig 3: Tightening High-Pressure Power Steering Hose
Courtesy of FORD MOTOR CO.

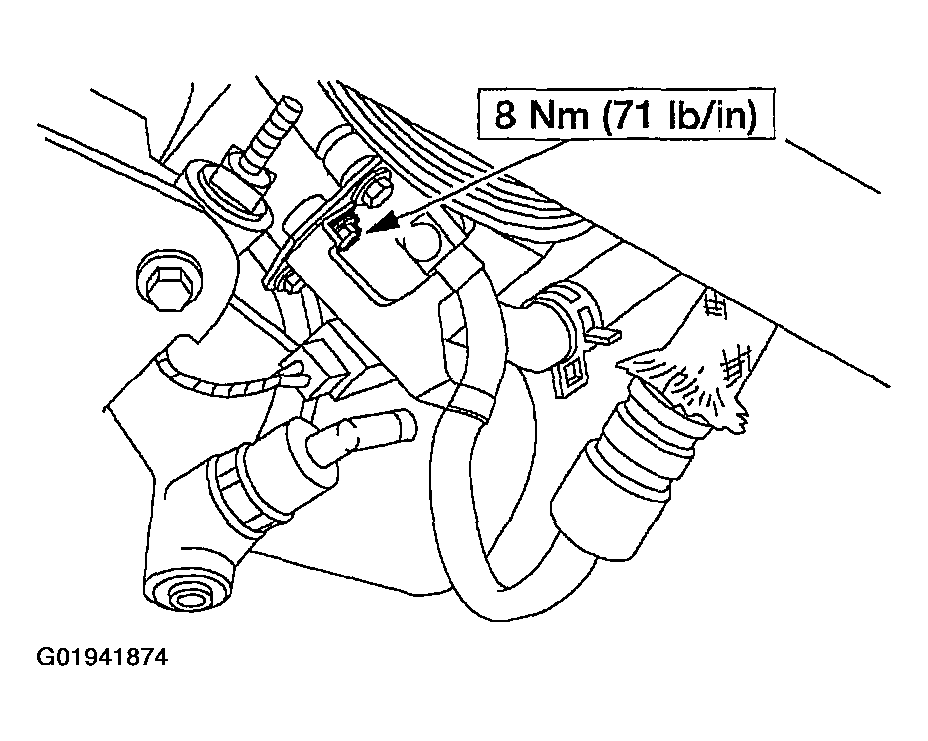

Fig 4: Tightening Bolt
Courtesy of FORD MOTOR CO.
Fill and leak check the system. For additional information, refer to FILL .
