Pulley - Pump: Installation

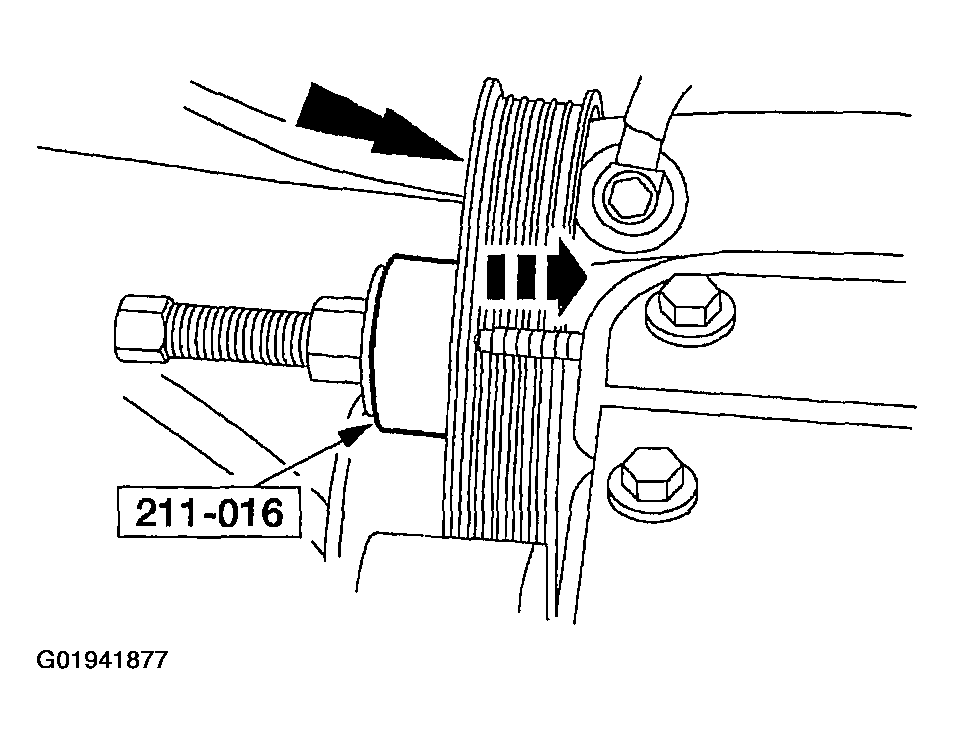

- Use the special tool to install the power steering pump pulley (3A733).
- Inspect the pulley for paint marks in the web area near the hub. If there are two paint marks, discard the pulley. If there is no paint or one paint mark, use a paint pencil to mark the web area of the pulley near the hub.
- Lower the vehicle.
- Install the drive belt.
CAUTION:
Replacement of the power steering pump pulley is necessary after being removed and installed two times.
