Lamp Assembly-Rear Reading: Removal

Rotate both reading lamps to the stop position, then continue until both reading lamps are in the vertical position.

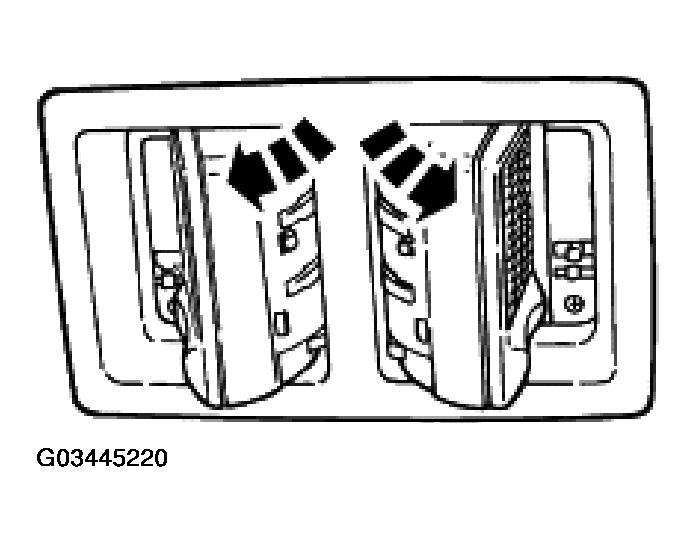

Fig 1: Rotating Both Reading Lamps To Stop Position
Courtesy of FORD MOTOR CO.
Remove the screws.

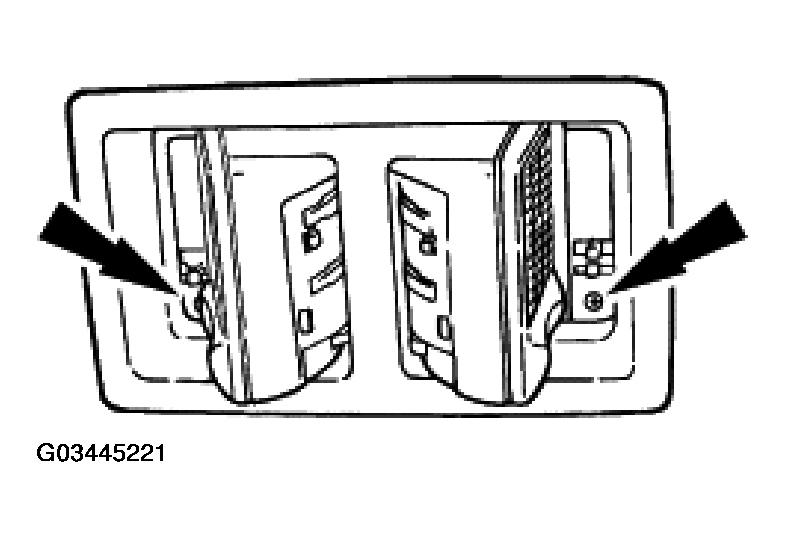

Fig 2: Removing Reading Lamp Screws
Courtesy of FORD MOTOR CO.
Remove the reading lamp assembly.
- Disconnect the electrical connector.

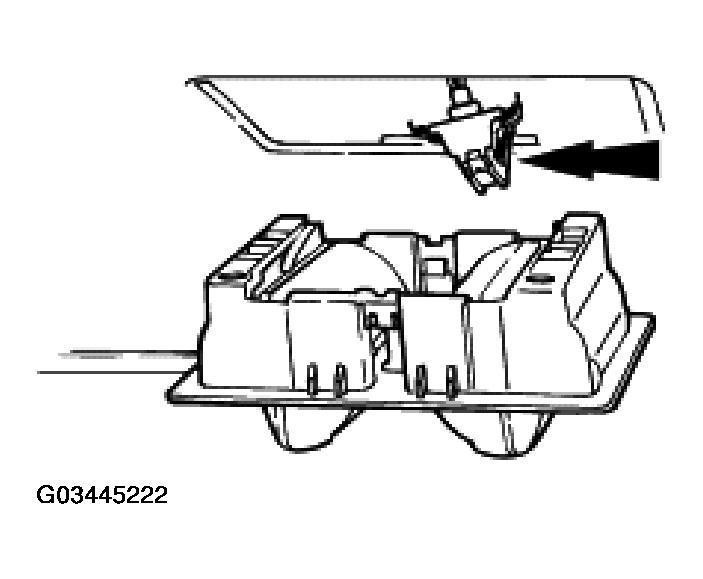

Fig 3: Removing Reading Lamp Assembly
Courtesy of FORD MOTOR CO.
