Pinpoint Test B: No Communication With The Air Suspension Control Module

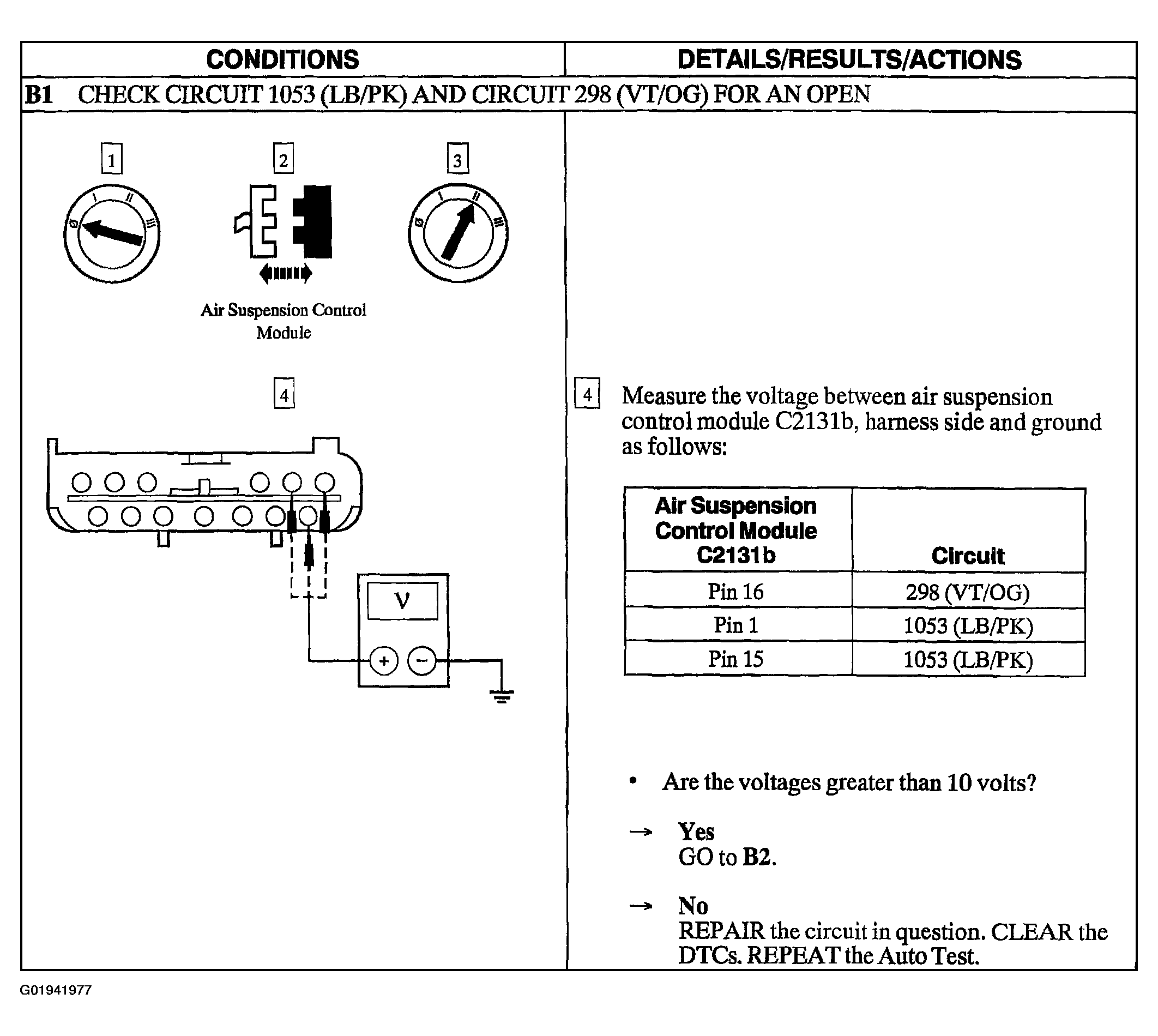

Fig 1: Pinpoint Test B: No Communication With The Air Suspension Control Module (Step B1)

Courtesy of FORD MOTOR CO.

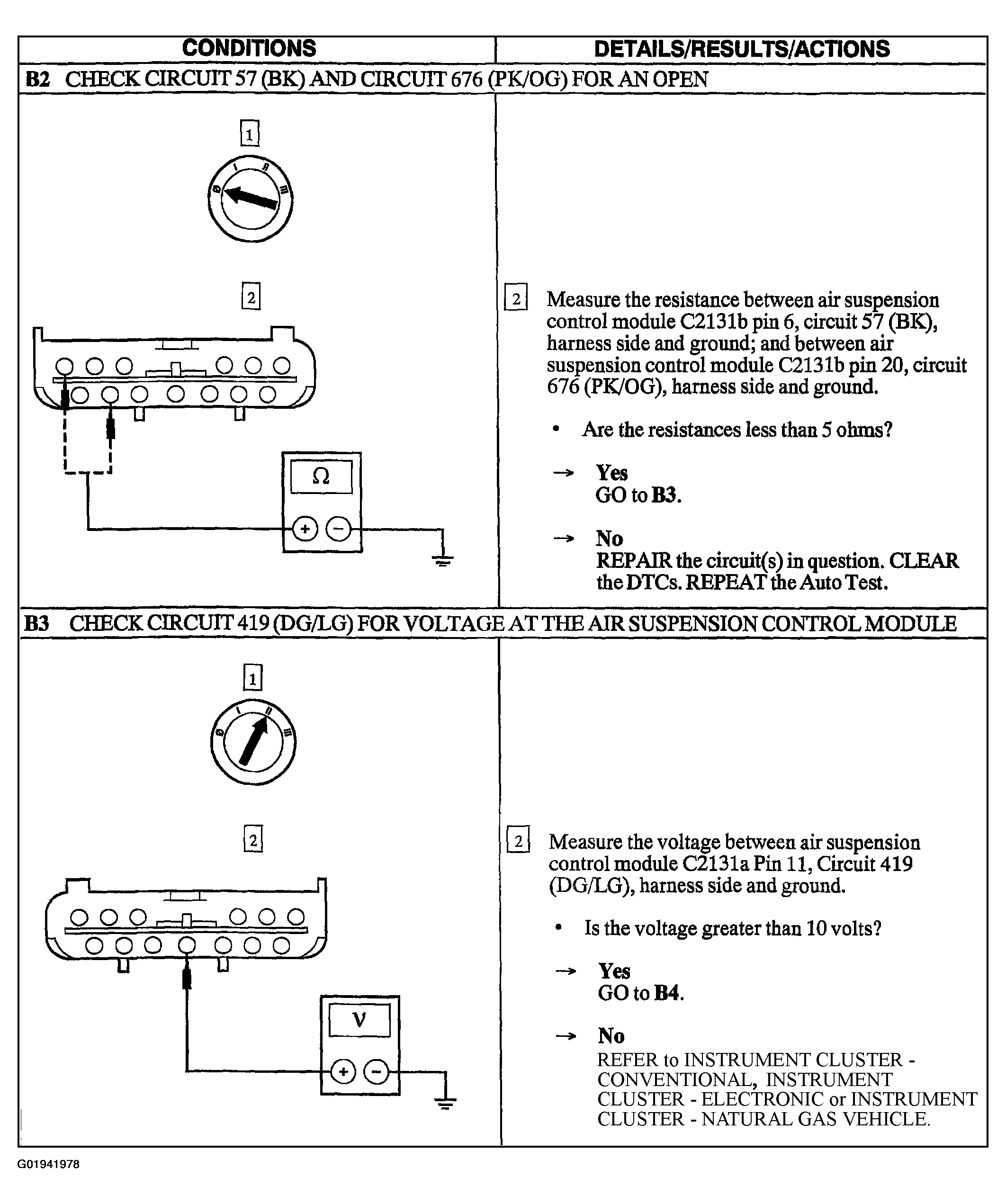

Fig 2: Pinpoint Test B: No Communication With The Air Suspension Control Module (Steps B2-B3)

Courtesy of FORD MOTOR CO.

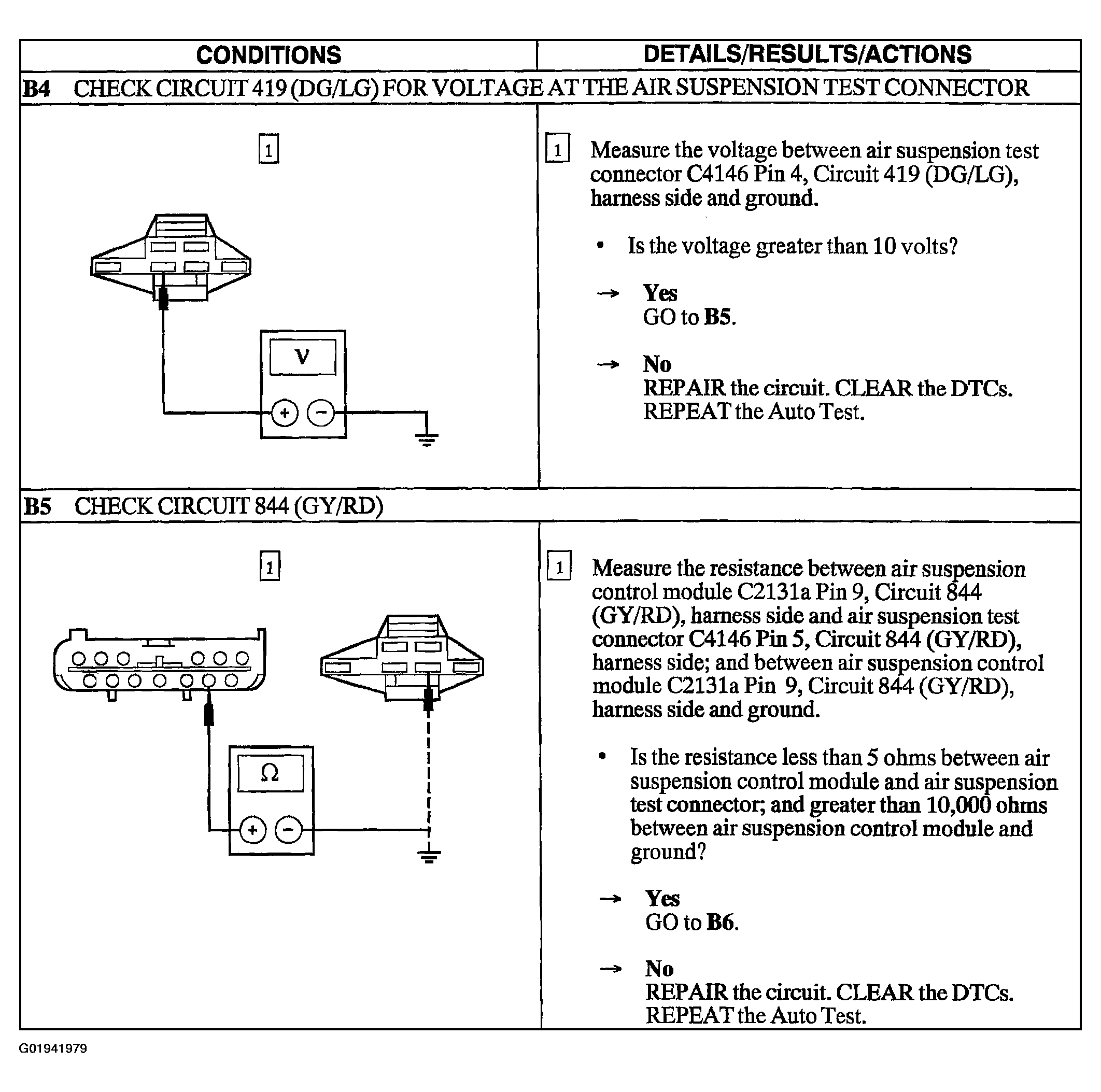

Fig 3: Pinpoint Test B: No Communication With The Air Suspension Control Module (Steps B4-B5)

Courtesy of FORD MOTOR CO.

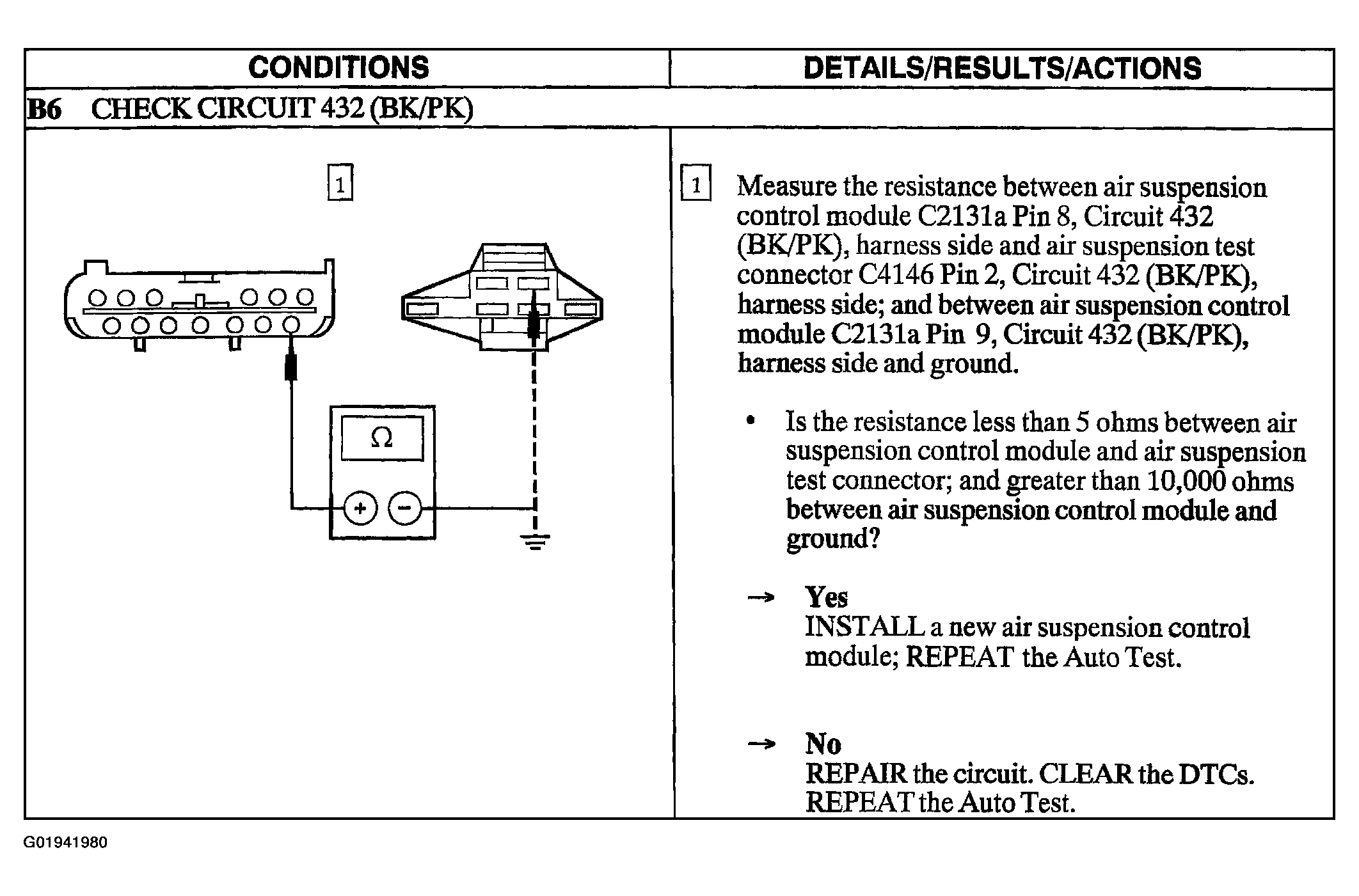

Fig 4: Pinpoint Test B: No Communication With The Air Suspension Control Module (Step B6)

Courtesy of FORD MOTOR CO.
