Pinpoint Test E: DTC 16 - EVO Actuator Shorted, DTC 17 - EVO Actuator Shorted Or Open, Or DTC 18 - EVO Actuator Resistance Out Of Range

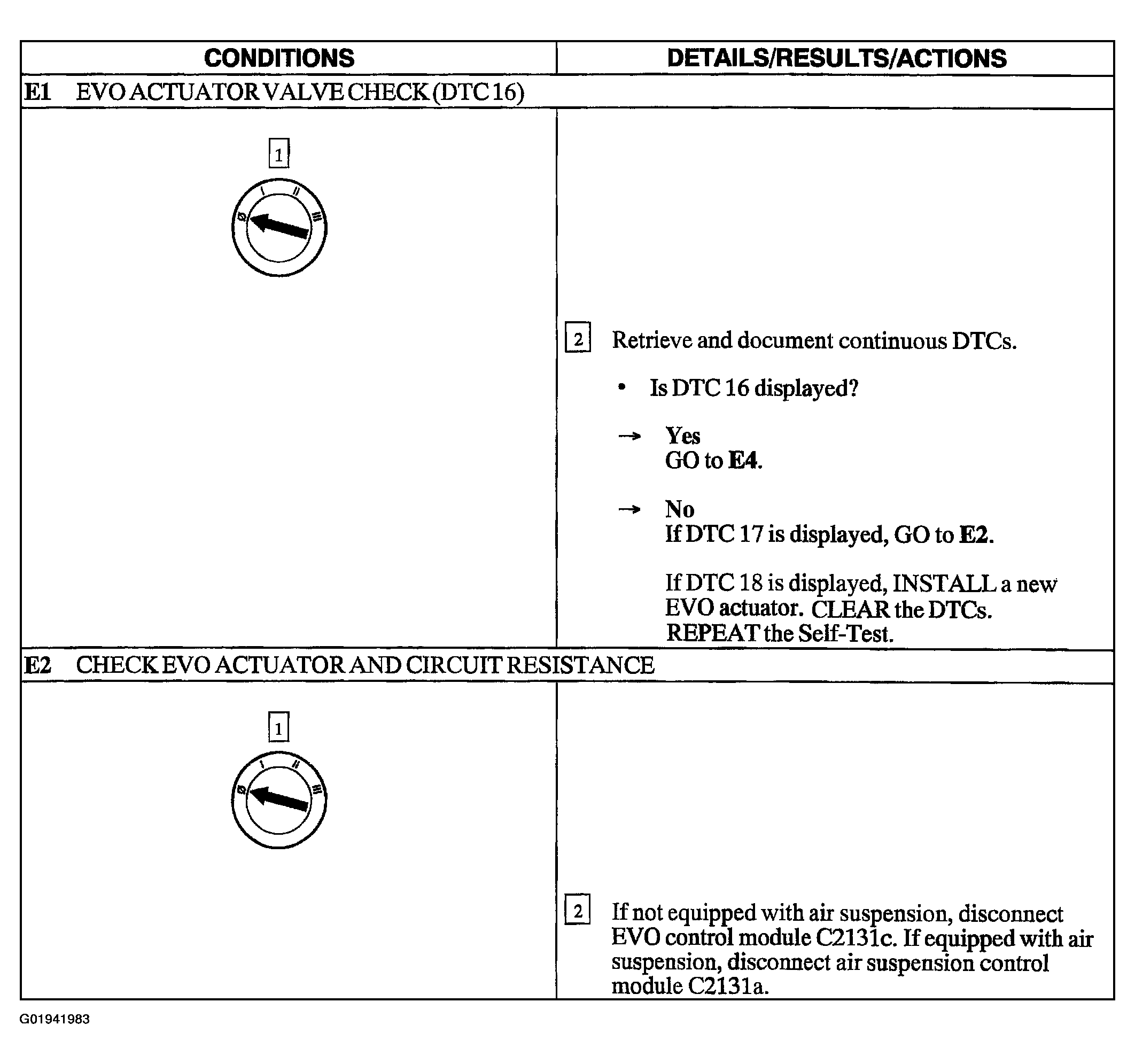

Fig 1: Pinpoint Test E: DTC 16 - EVO Actuator Shorted, DTC 17 - EVO Actuator Shorted Or Open, Or DTC 18 - EVO Actuator Resistance Out Of Range (Steps E1-E2)

Courtesy of FORD MOTOR CO.

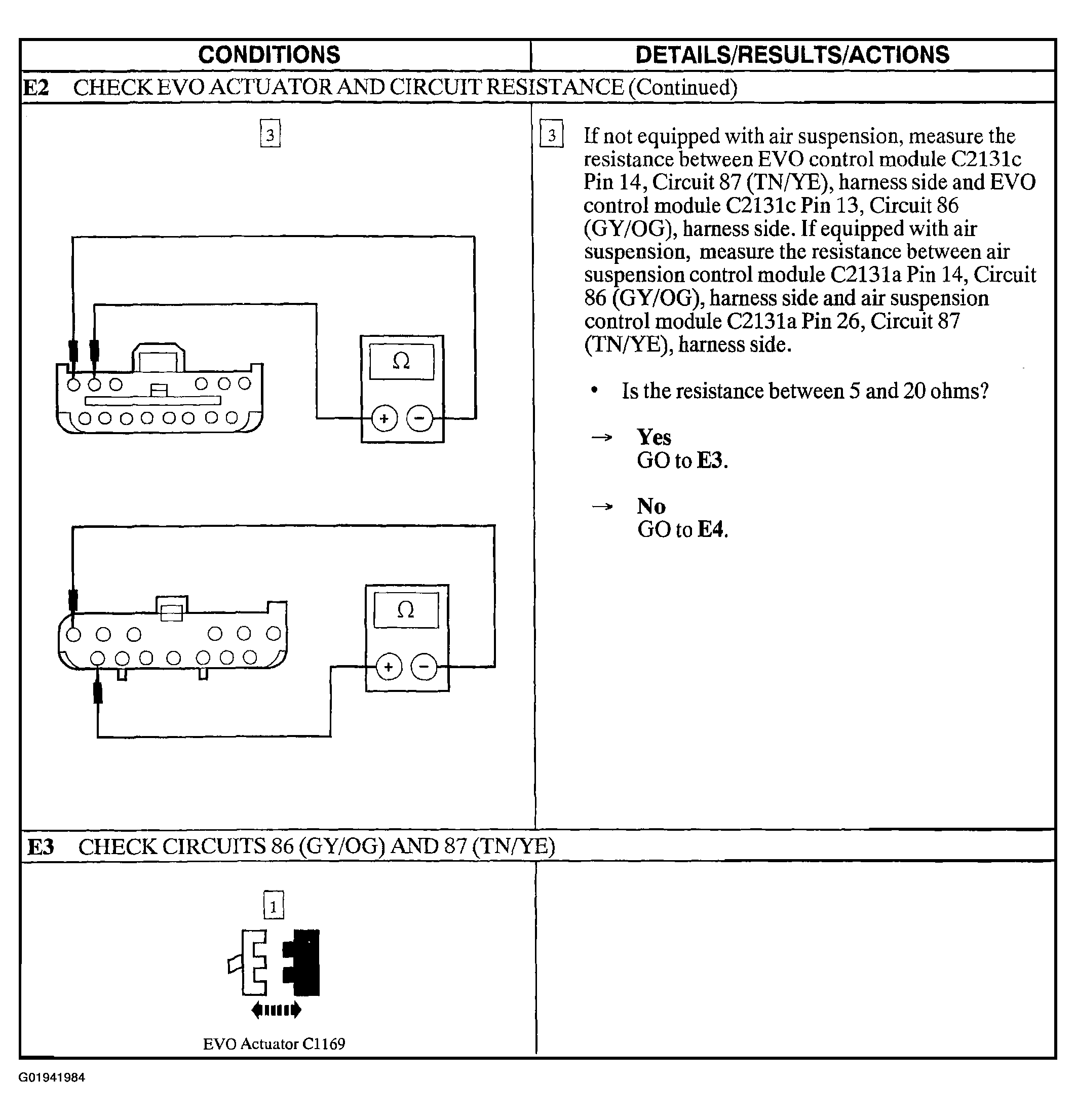

Fig 2: Pinpoint Test E: DTC 16 - EVO Actuator Shorted, DTC 17 - EVO Actuator Shorted Or Open, Or DTC 18 - EVO Actuator Resistance Out Of Range (Steps E2 Cont.-E3)

Courtesy of FORD MOTOR CO.

Fig 3: Pinpoint Test E: DTC 16 - EVO Actuator Shorted, DTC 17 - EVO Actuator Shorted Or Open, Or DTC 18 - EVO Actuator Resistance Out Of Range (Step E3 Cont.)

Courtesy of FORD MOTOR CO.

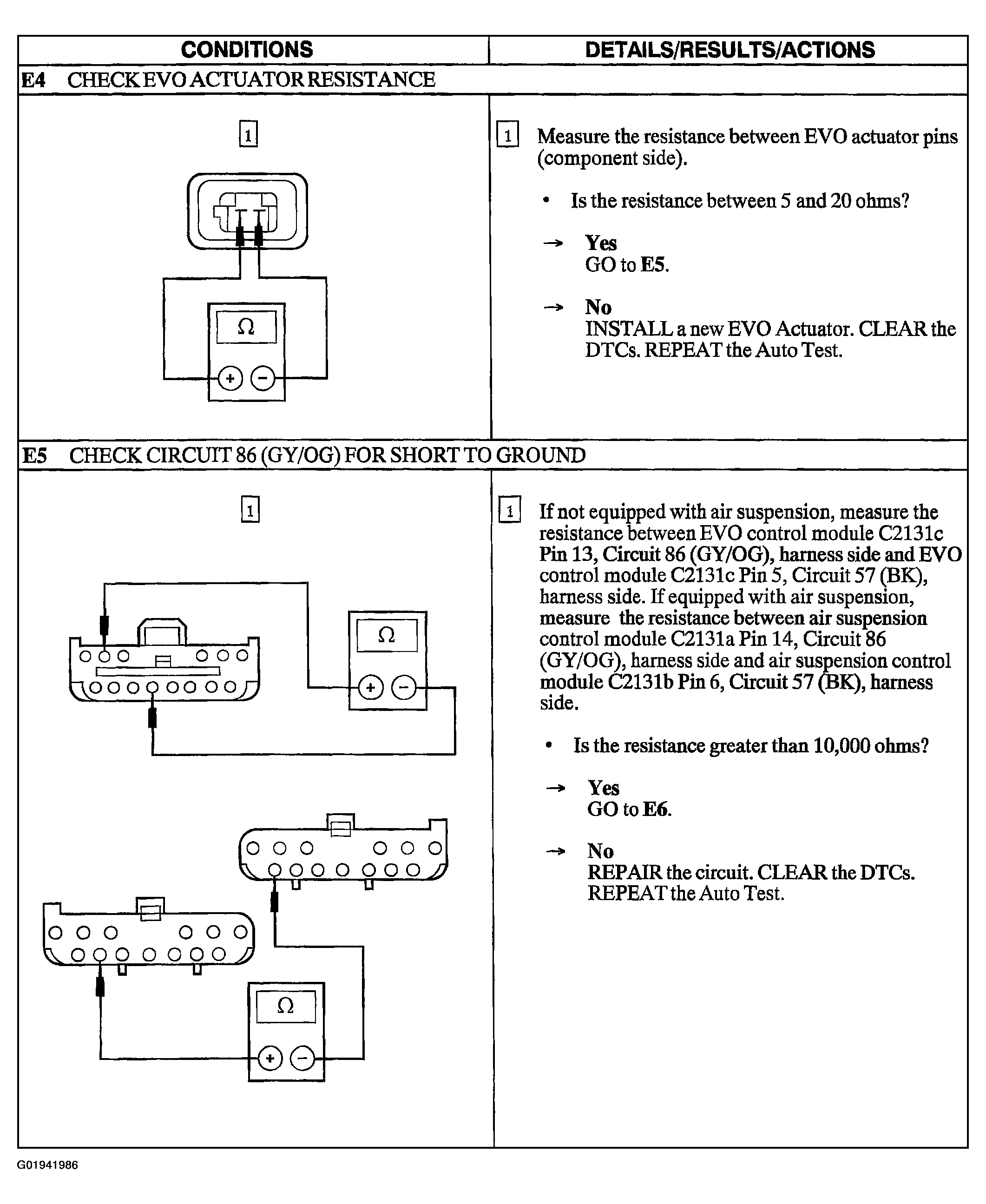

Fig 4: Pinpoint Test E: DTC 16 - EVO Actuator Shorted, DTC 17 - EVO Actuator Shorted Or Open, Or DTC 18 - EVO Actuator Resistance Out Of Range (Steps E4-E5)

Courtesy of FORD MOTOR CO.

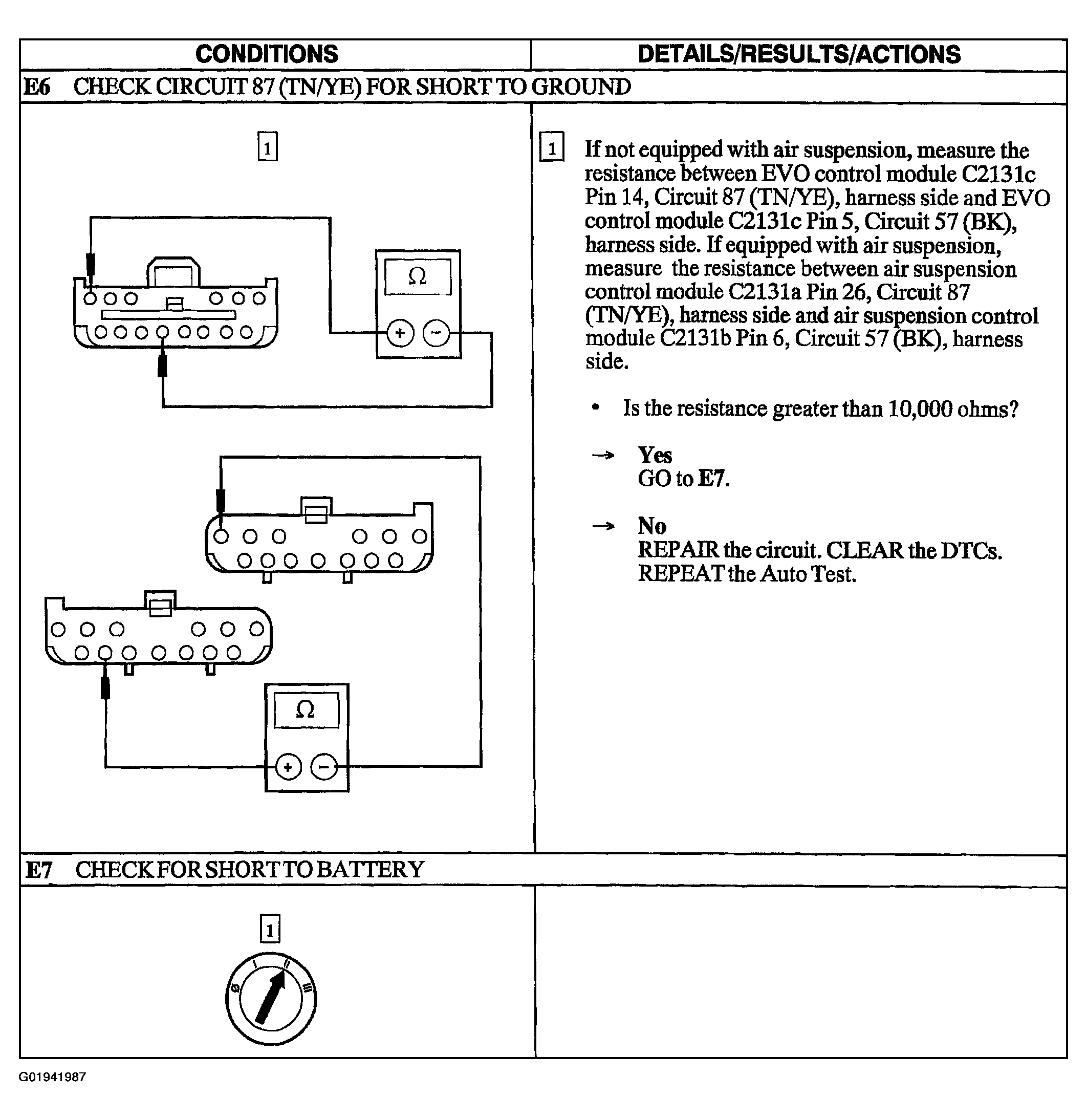

Fig 5: Pinpoint Test E: DTC 16 - EVO Actuator Shorted, DTC 17 - EVO Actuator Shorted Or Open, Or DTC 18 - EVO Actuator Resistance Out Of Range (Steps E6-E7)

Courtesy of FORD MOTOR CO.

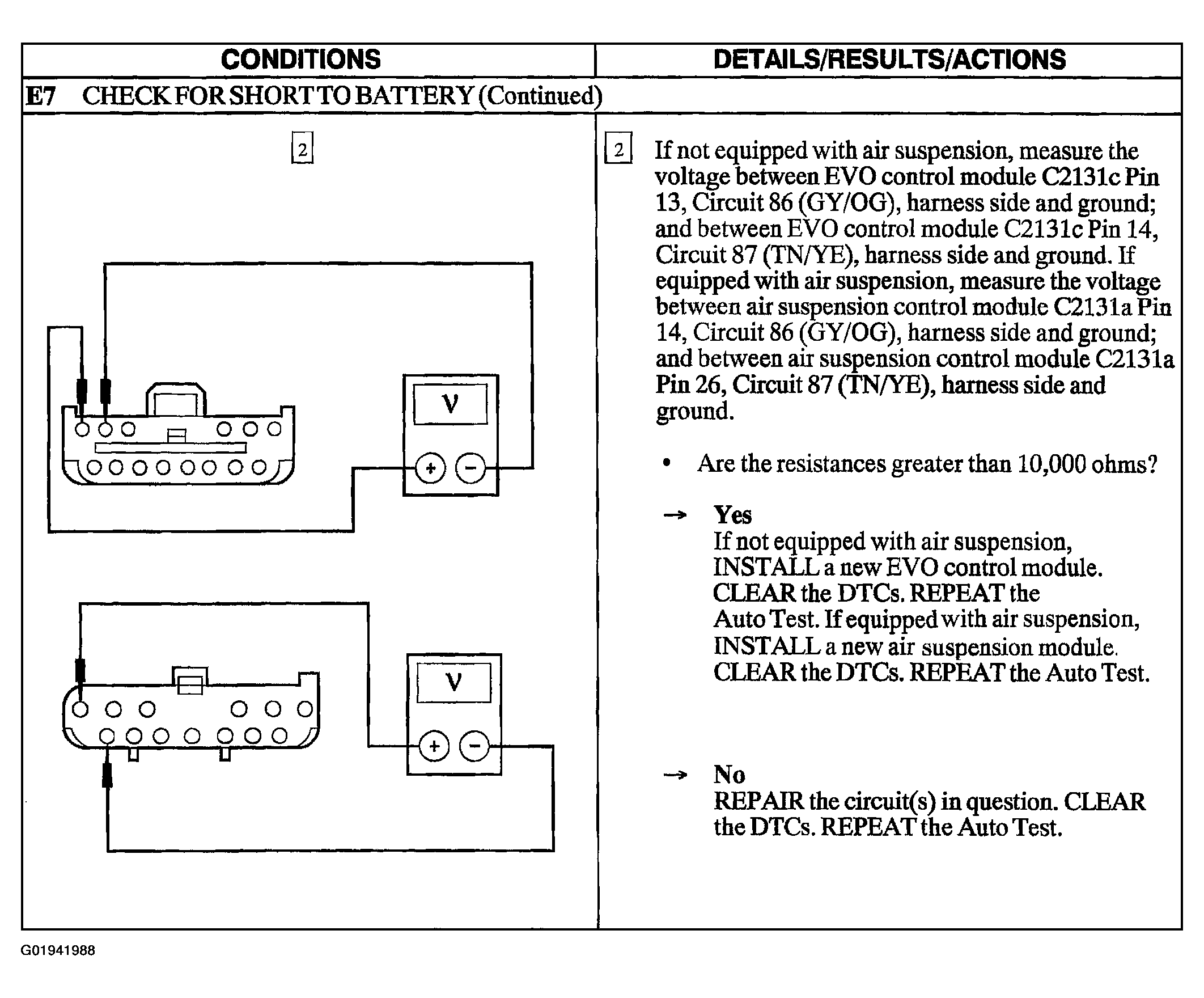

Fig 6: Pinpoint Test E: DTC 16 - EVO Actuator Shorted, DTC 17 - EVO Actuator Shorted Or Open, Or DTC 18 - EVO Actuator Resistance Out Of Range (Step E7 Cont.)

Courtesy of FORD MOTOR CO.
