Pinpoint Test F: DTC 27 - EVO Actuator Circuit Open

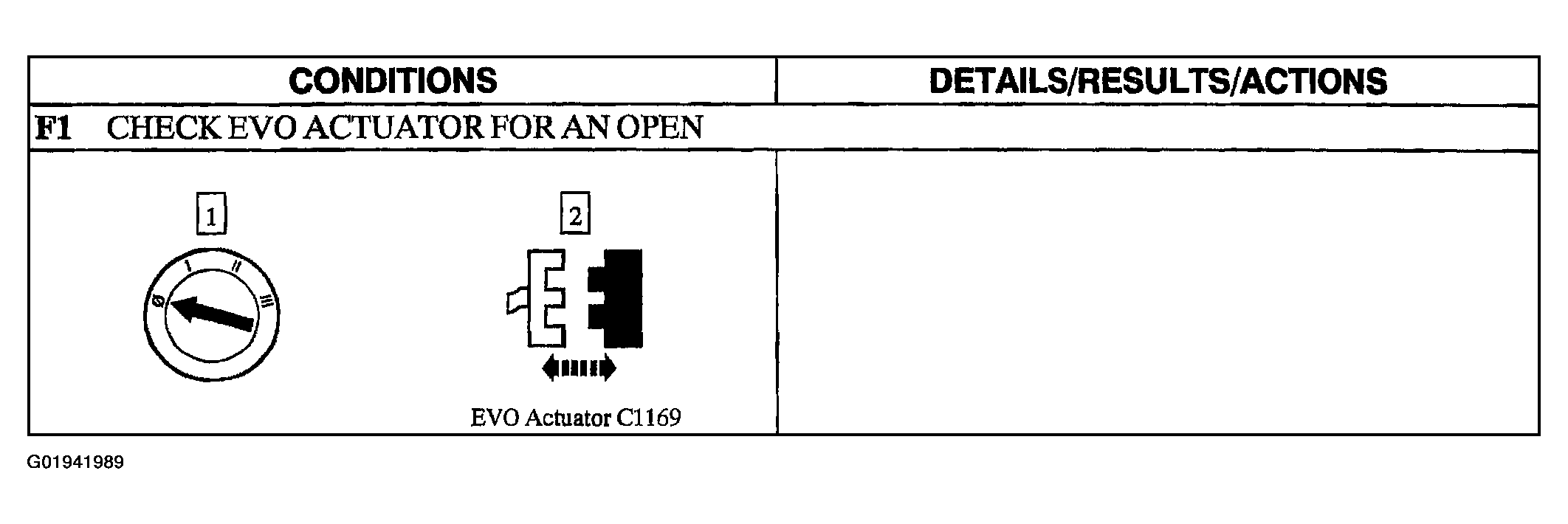

Fig 1: Pinpoint Test F: DTC 27 - EVO Actuator Circuit Open (Step F1)

Courtesy of FORD MOTOR CO.

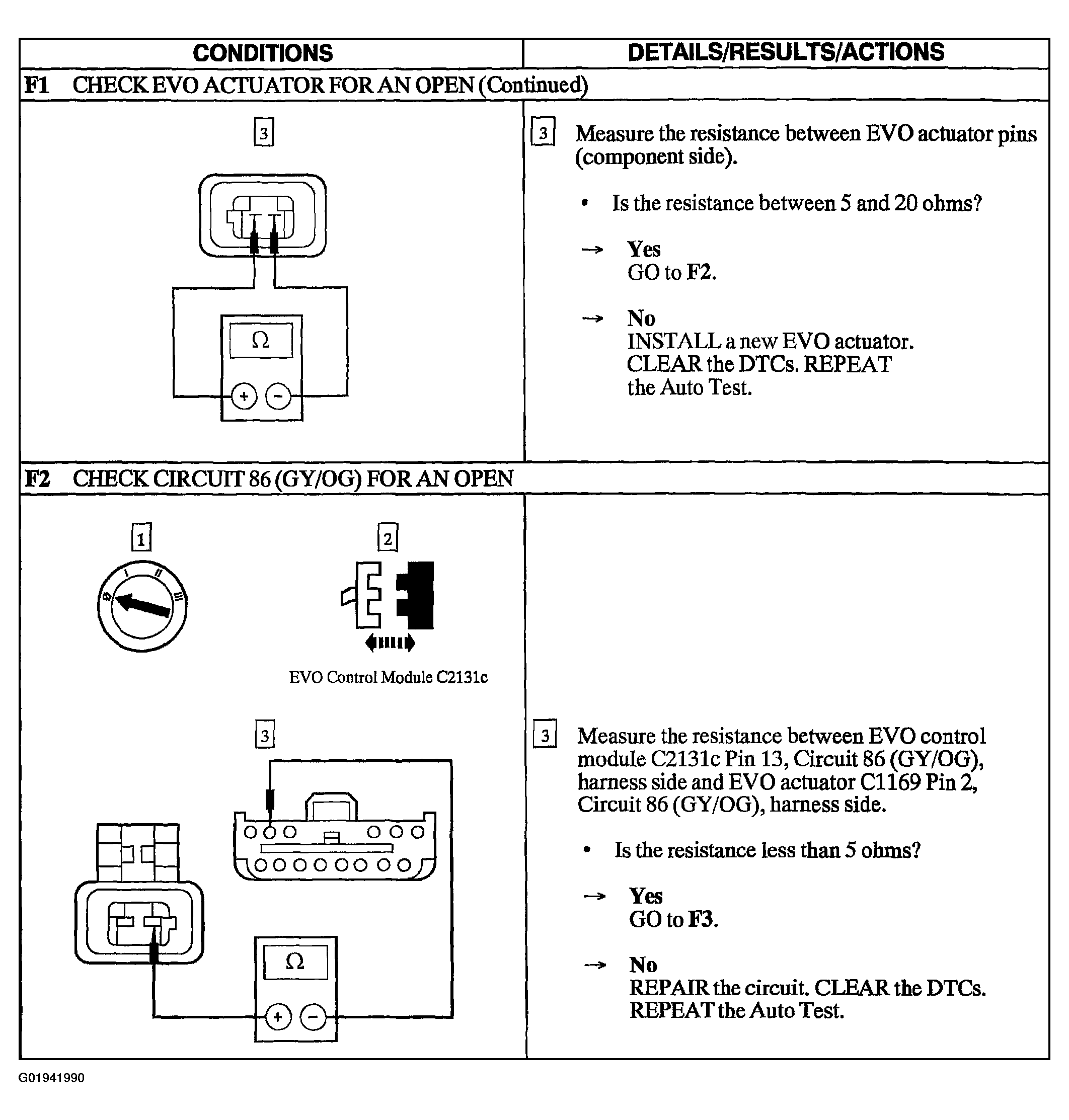

Fig 2: Pinpoint Test F: DTC 27 - EVO Actuator Circuit Open (Steps F1 Cont.-F2)

Courtesy of FORD MOTOR CO.

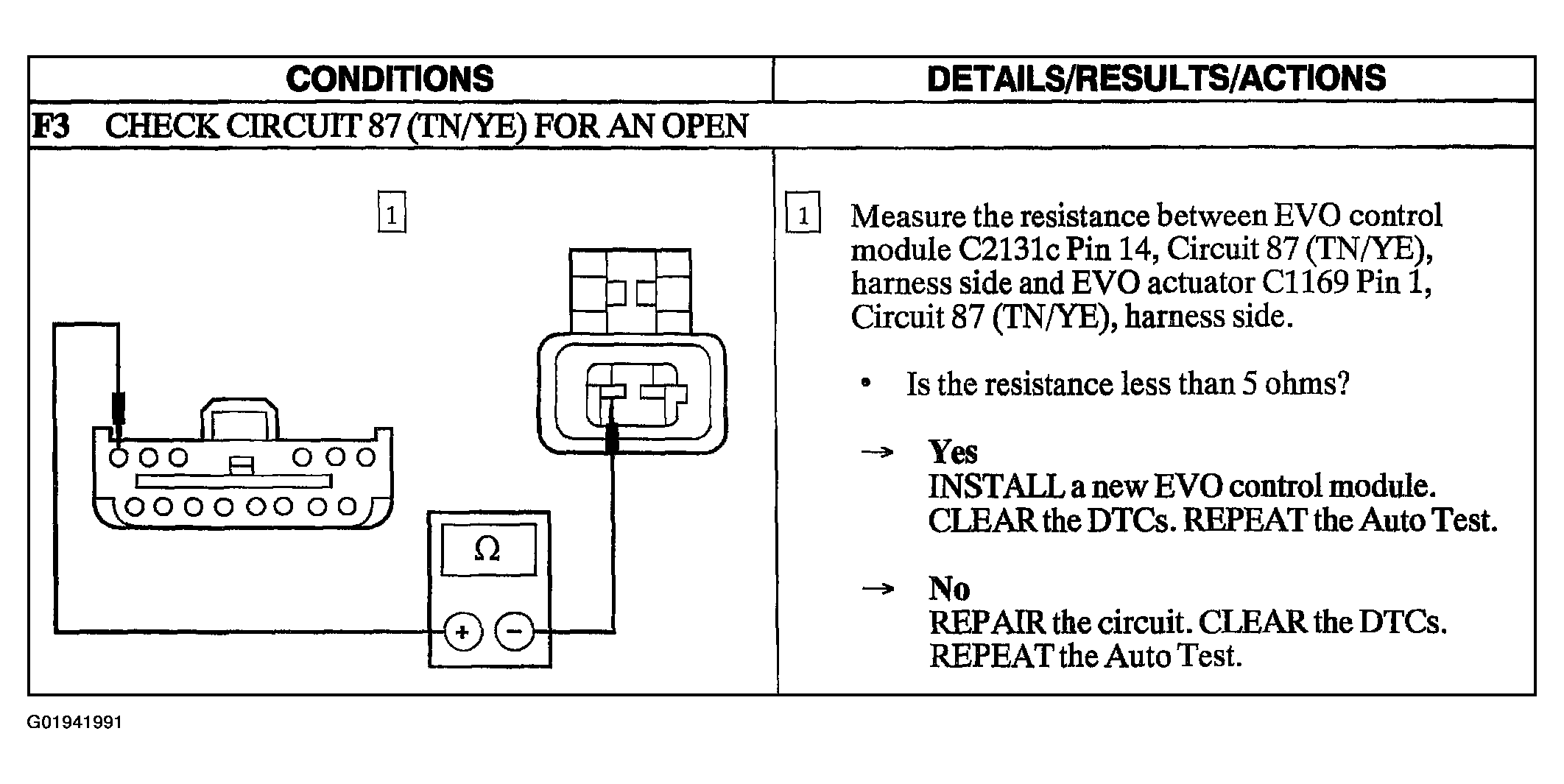

Fig 3: Pinpoint Test F: DTC 27 - EVO Actuator Circuit Open (Step F3)

Courtesy of FORD MOTOR CO.
