Pinpoint Test I: DTC 30 - EVO Actuator Circuit Shorted To Battery
Pinpoint Test I: DTC 30 - EVO Actuator Circuit Shorted To Battery

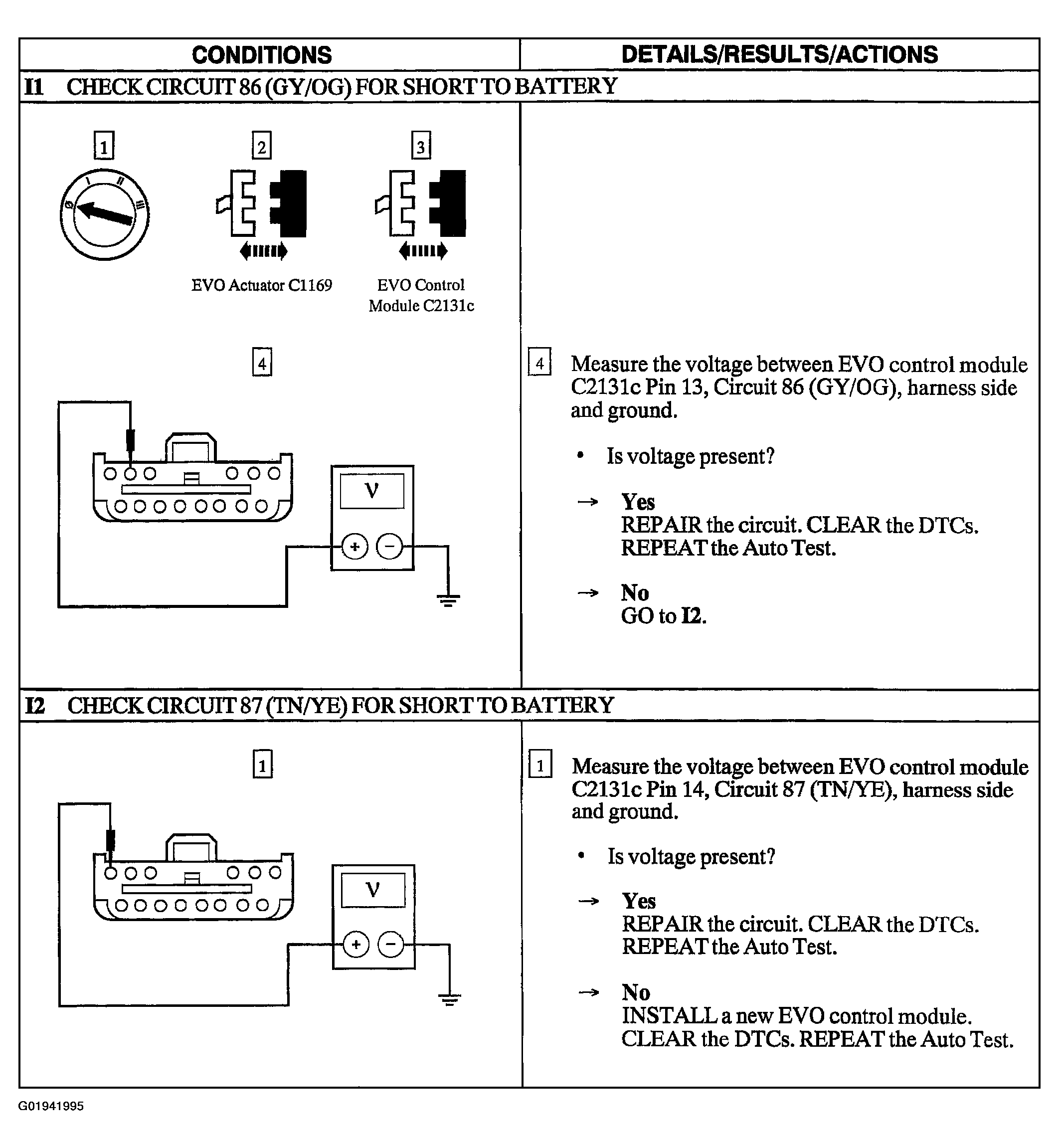

Fig 1: Pinpoint Test I: DTC 30 - EVO Actuator Circuit Shorted To Battery
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
