Pinpoint Test J: DTC 31 - EVO Actuator Circuit Low Side Shorted To Ground

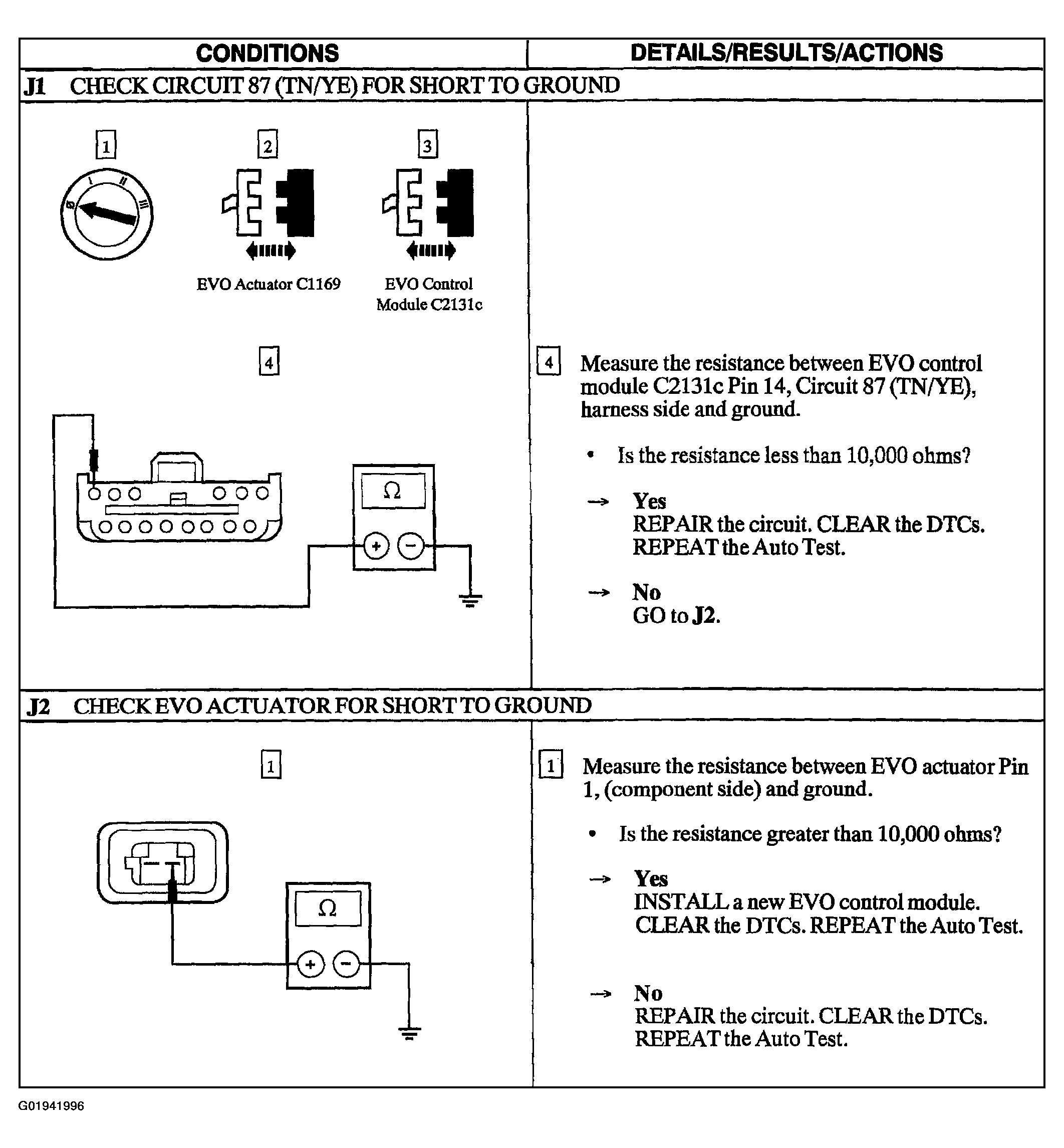

Fig 1: Pinpoint Test J: DTC 31 - EVO Actuator Circuit Low Side Shorted To Ground
G01941996Courtesy of FORD MOTOR CO.
