Pinpoint Test K: DTC 33 - Steering Rotation Not Detected

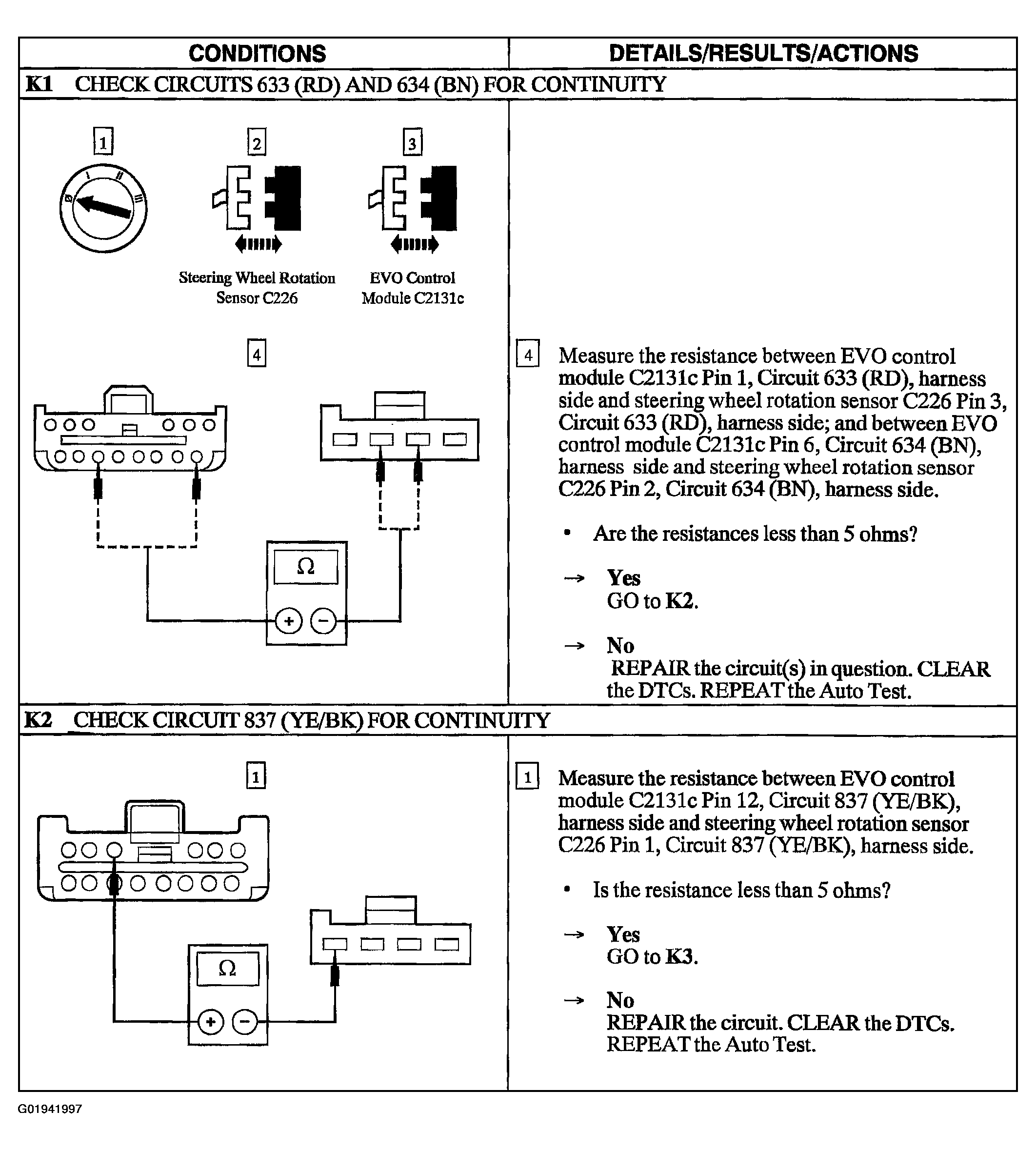

Fig 1: Pinpoint Test K: DTC 33 - Steering Rotation Not Detected (Steps K1-K2)

Courtesy of FORD MOTOR CO.

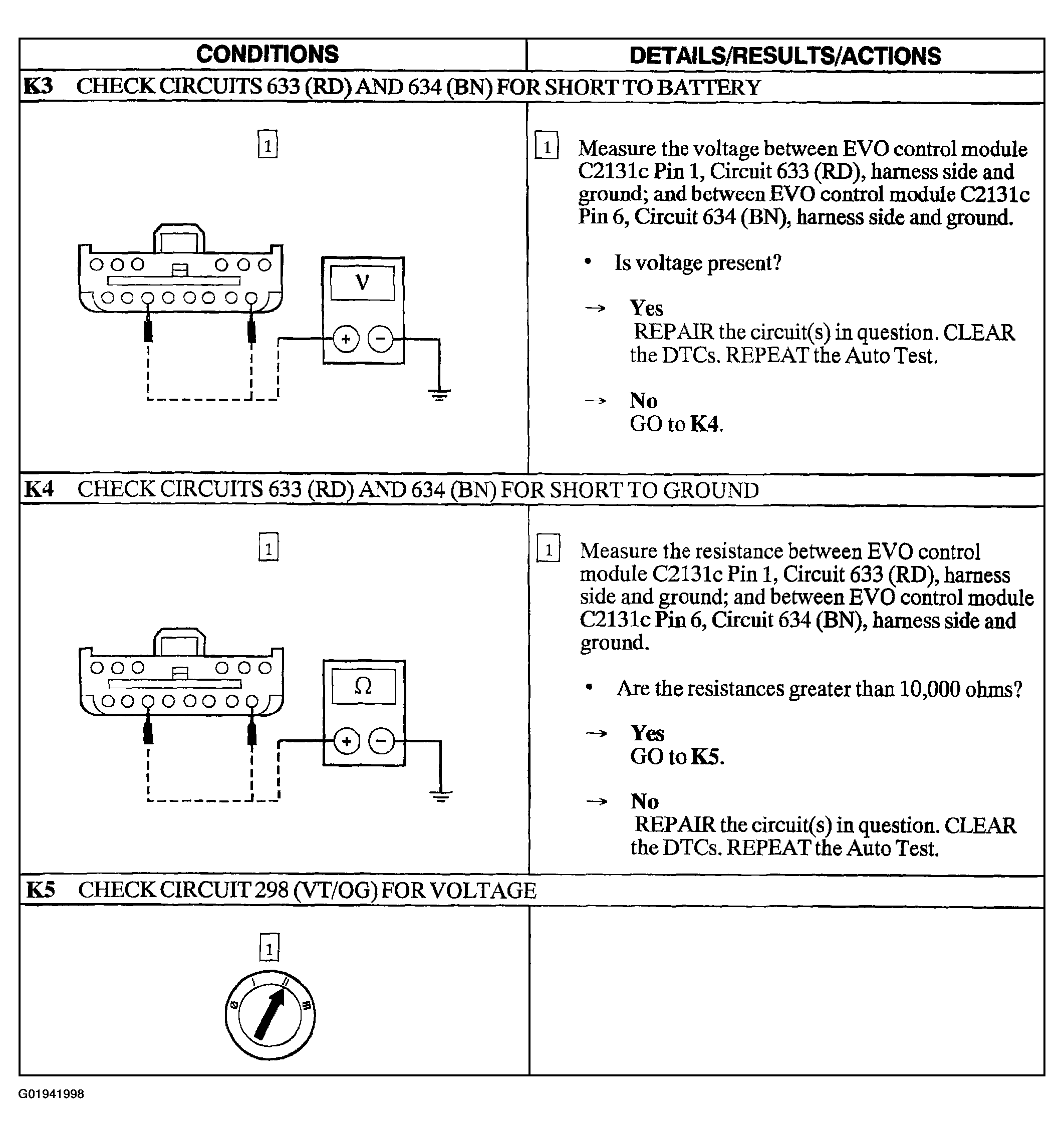

Fig 2: Pinpoint Test K: DTC 33 - Steering Rotation Not Detected (Steps K3-K5)

Courtesy of FORD MOTOR CO.

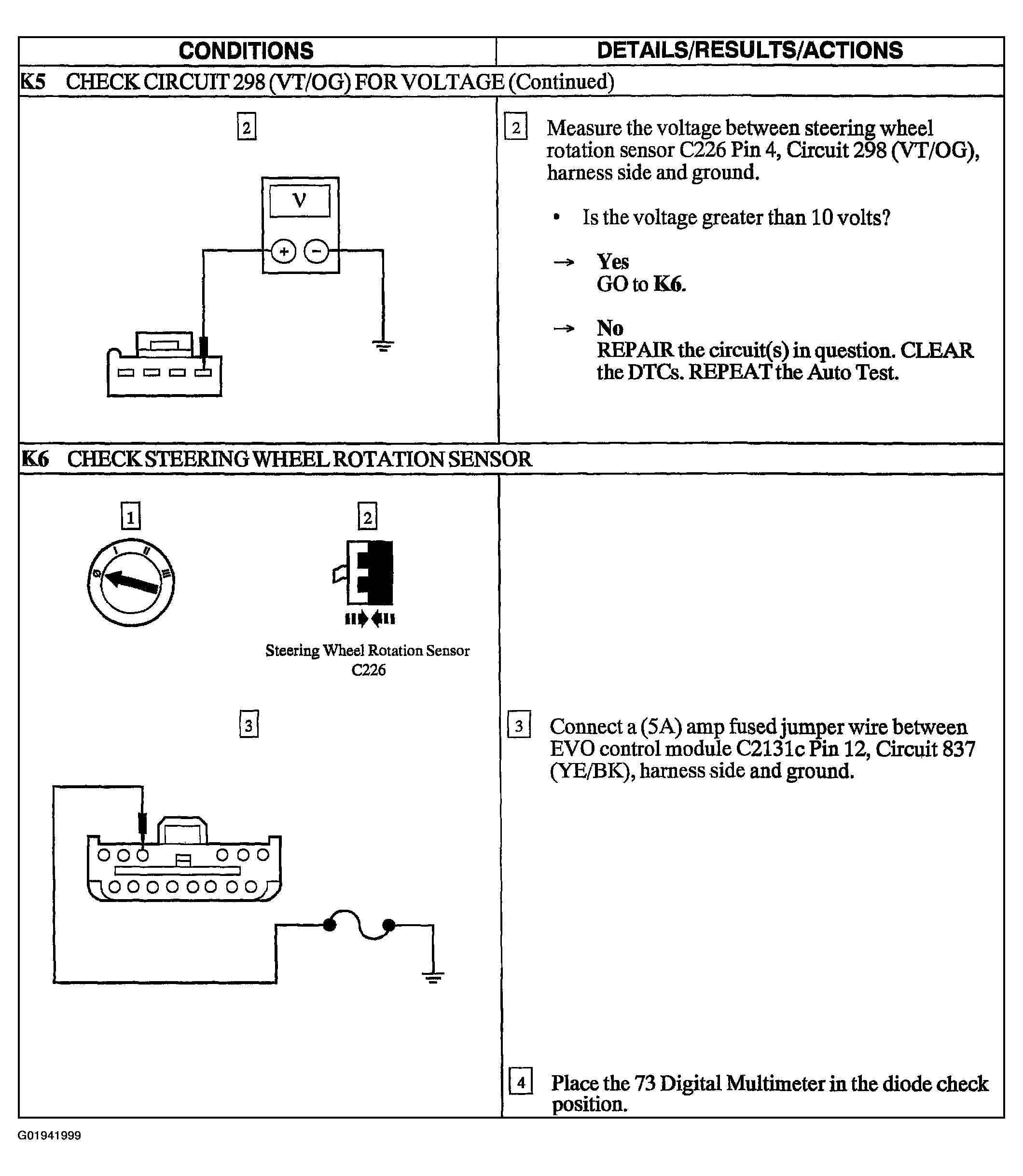

Fig 3: Pinpoint Test K: DTC 33 - Steering Rotation Not Detected (Steps K5 Cont.-K6)

Courtesy of FORD MOTOR CO.

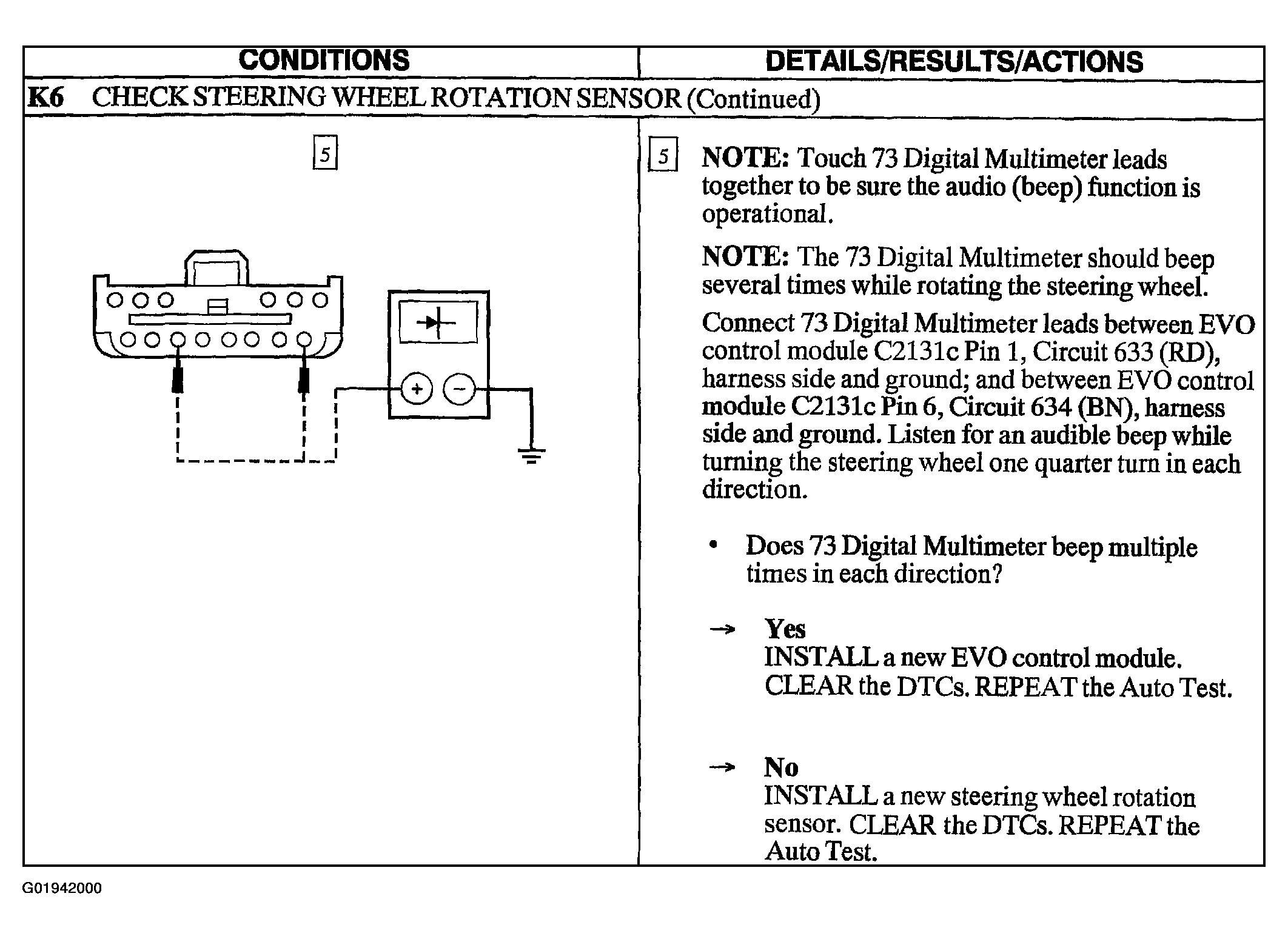

Fig 4: Pinpoint Test K: DTC 33 - Steering Rotation Not Detected (Step K6 Cont.)

Courtesy of FORD MOTOR CO.
