Pinpoint Test L: DTC 35 - Vehicle Speed Above 24 Km/h (15 mph) Not Detected

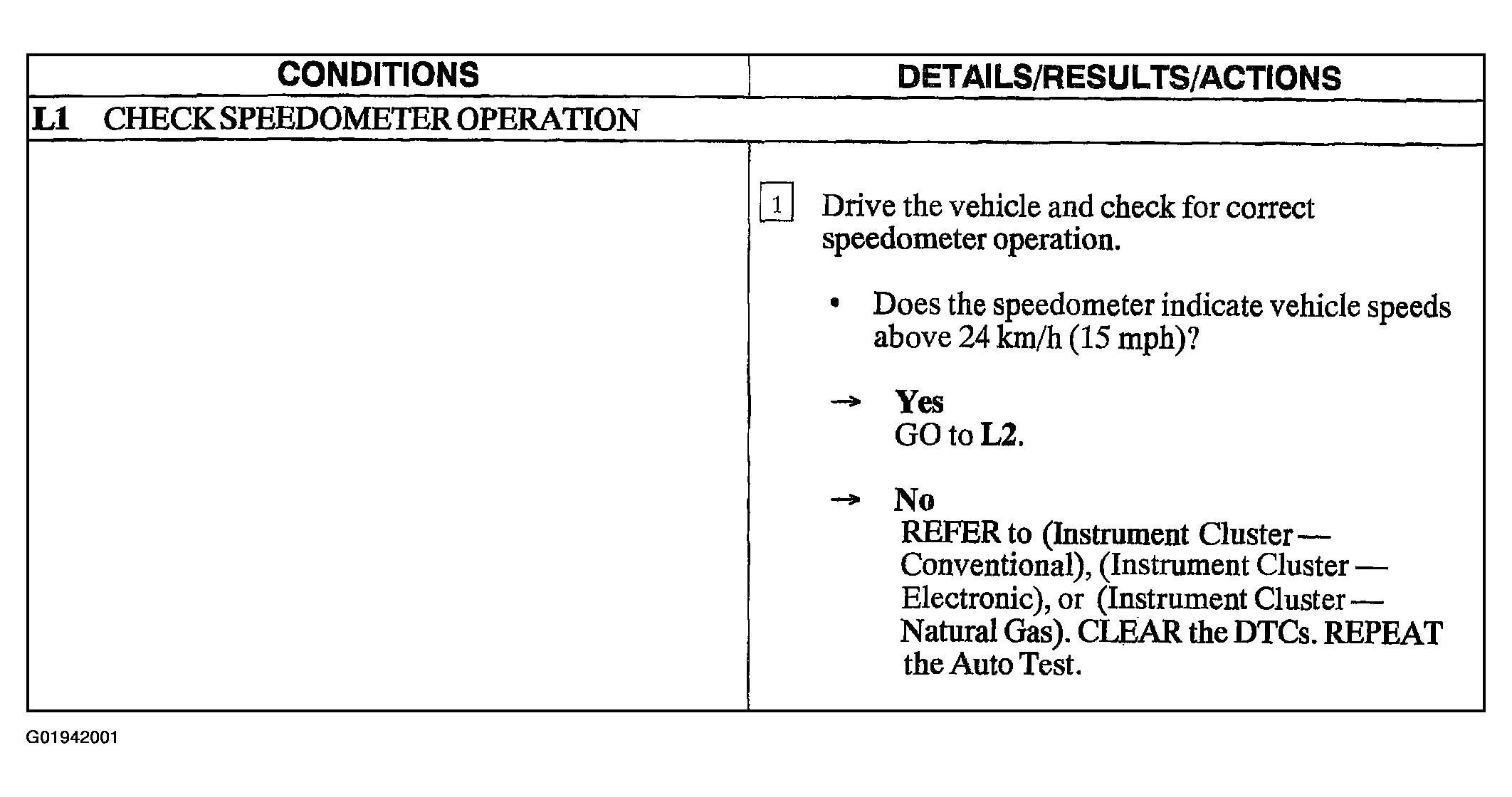

Fig 1: Pinpoint Test L: DTC 35 - Vehicle Speed Above 24 Km/h (15 mph) Not Detected (Step L1)
G01942001Courtesy of FORD MOTOR CO.

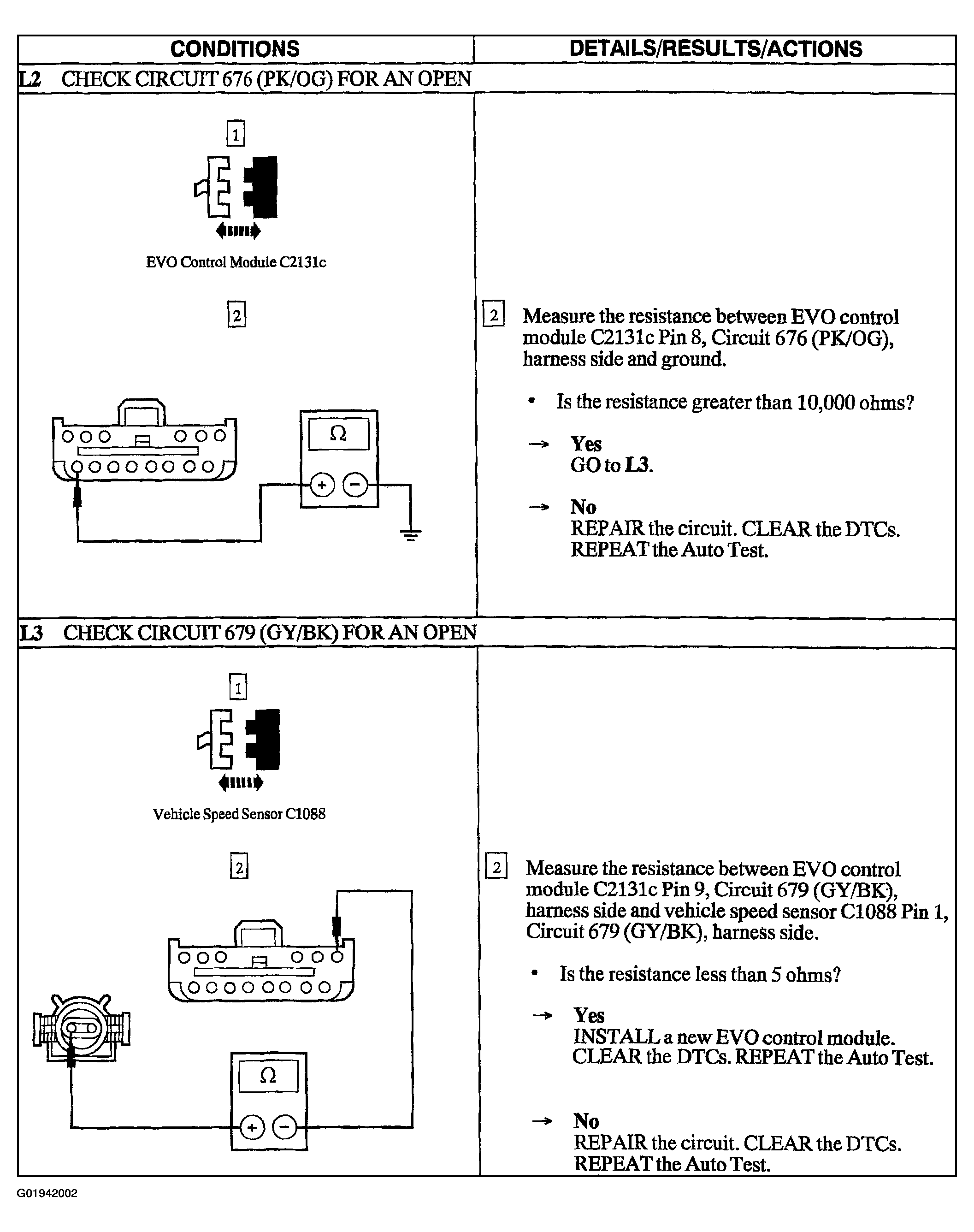

Fig 2: Pinpoint Test L: DTC 35 - Vehicle Speed Above 24 Km/h (15 mph) Not Detected (Steps L2-L3)
G01942002Courtesy of FORD MOTOR CO.
