Removal & Installation

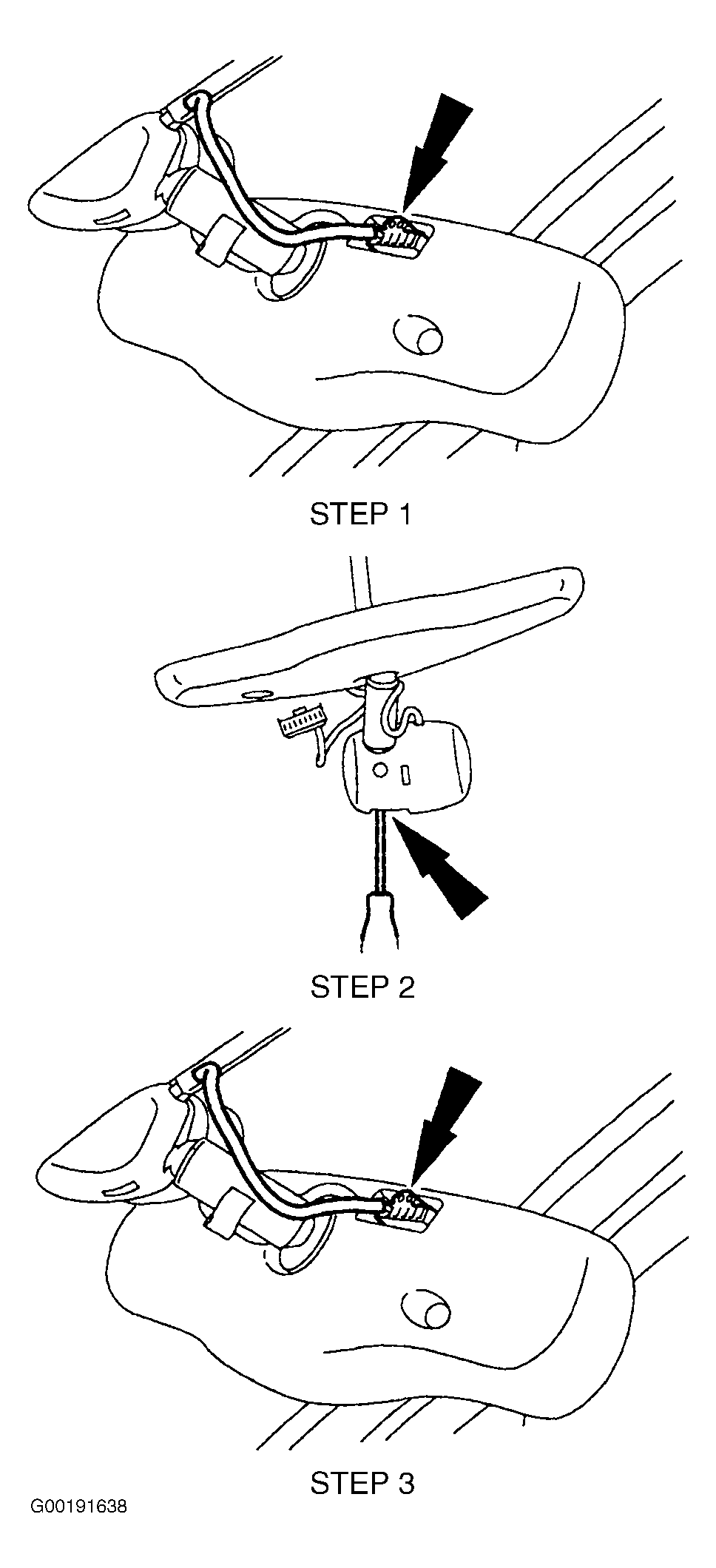

Disconnect dimming mirror harness connector. See STEP 1 in Fig 1. Insert small flat-blade screwdriver in slot on bottom of mirror, between mirror bracket and mirror base. Pull screwdriver rearward until mirror snaps off mirror bracket. See STEP 2 in Fig 1. To install, slide mirror downward onto mirror bracket until it snaps into place and connect harness connector. See STEP 3 in Fig 1.
