Removal & Installation

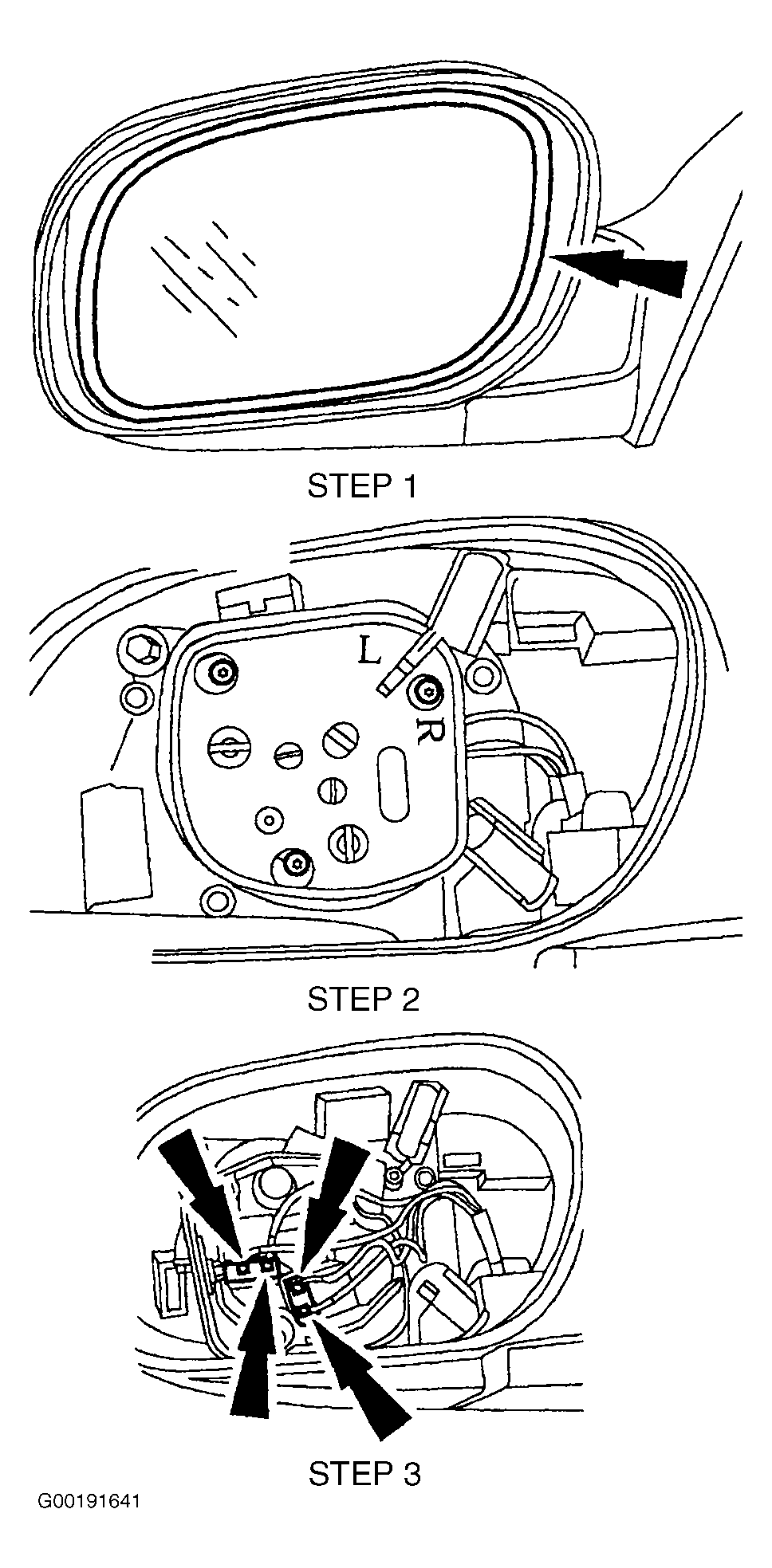

Remove power mirror. See POWER MIRROR ASSEMBLY . Push in upper edge of power mirror glass to maximum travel and gently pull outward until power mirror glass is released. Disconnect power mirror glass harness connector. See STEP 1 in Fig 1. Remove power mirror motor screws. See STEP 2 in Fig 1. Note colors and locations of connectors prior to removal. Remove motor. See STEP 3 in Fig 1. To install, reverse removal procedure. Ensure power mirror glass locking tabs align before snapping in glass. Tighten screws to specification. See TORQUE SPECIFICATIONS .
