Removal & Installation (Blackwood, Econoline, Excursion, Expedition, Explorer, Explorer Sport, Explorer Sport Trac, F150, F250/350 Super Duty, Mountaineer & Navigator)

Before proceeding, see SERVICE PRECAUTIONS . Record radio preset frequencies for reprogramming (if equipped). Disconnect negative battery cable. Wait at least one minute to deplete backup power supply energy.

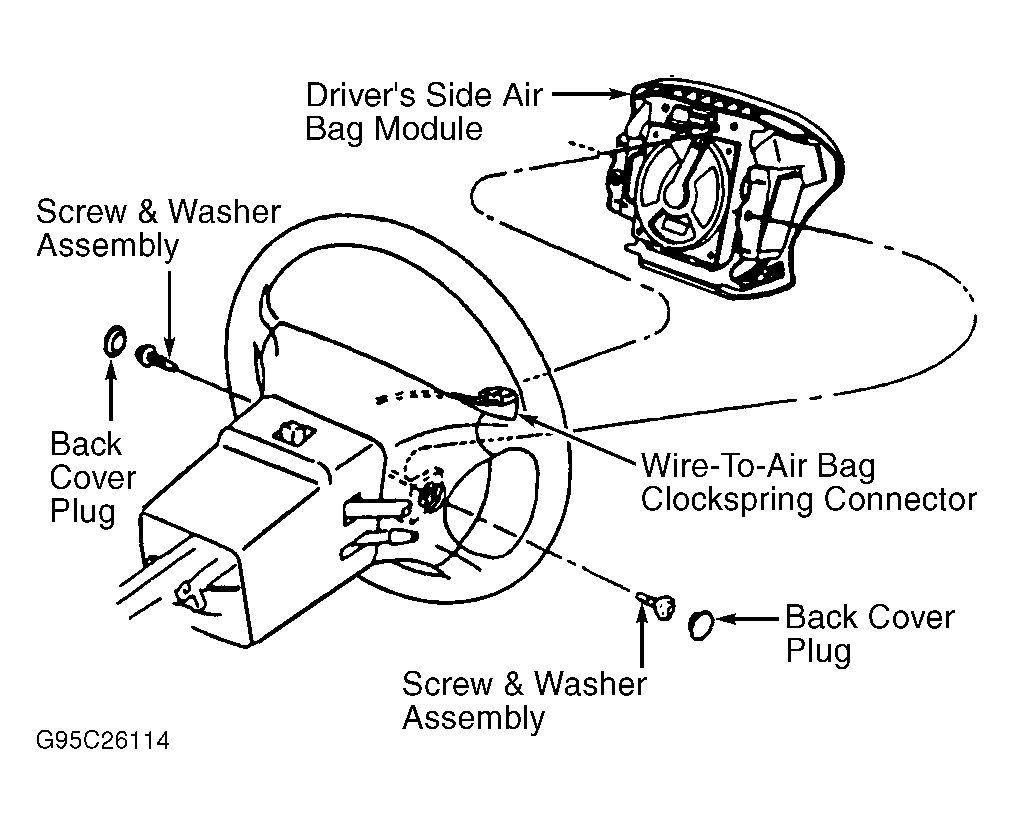

Remove 2 back cover plugs from rear of steering wheel. Remove bolts retaining air bag module to steering wheel. See Figure. Disconnect electrical connector(s) from air bag module. Remove air bag module from steering wheel.
To install, reverse removal procedure. Tighten air bag module bolts to specification. See AIR BAG MODULE TORQUE SPECIFICATIONS (FORD) . Connect negative battery cable. Ensure system is functioning properly. See SYSTEM OPERATION CHECK . Reprogram radio preset frequencies and set clock.
