Electronic Leak Detector

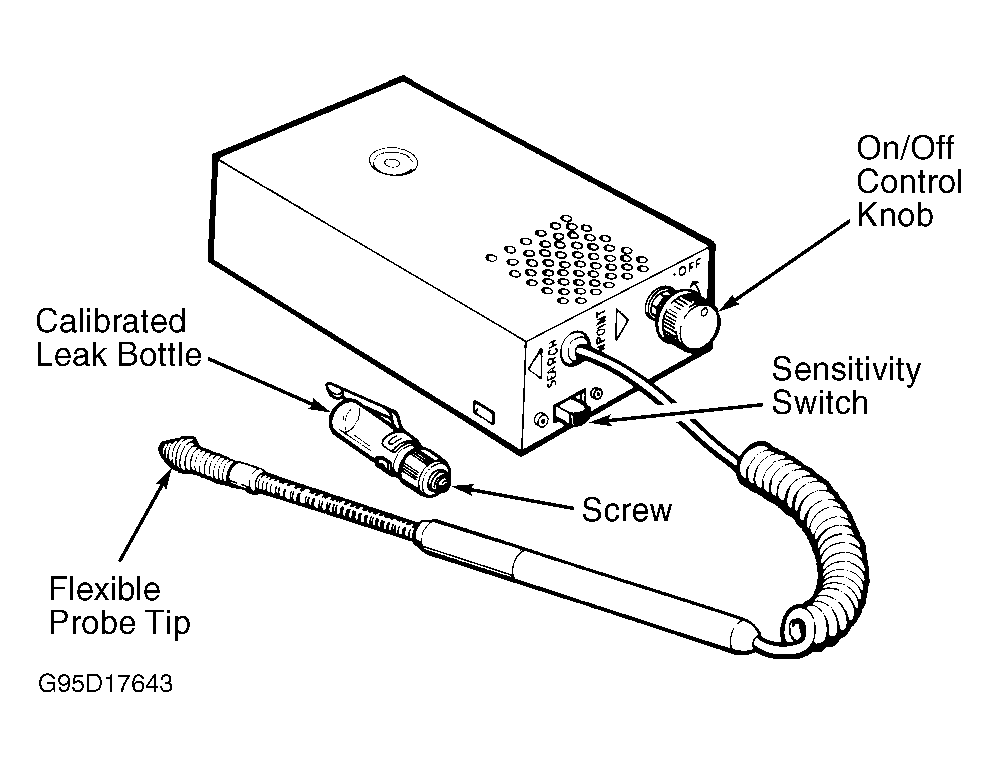

This instrument will draw in any leaking refrigerant through a test probe and then sound an audible signal or create a flashing light if refrigerant is found. It is the most sensitive of the leak detectors used. Leak detectors are sensitive to windshield washing solutions, many solvents and cleaners and some adhesives. Ensure surfaces near test areas are clean and dry to prevent false signal or detector damage. Liquids ingested into detector will damage detector. See Fig 1.
