Home >> Ford >> 2002 >> Crown Victoria Base, 4.6 9 >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Seats >> Seat System >> Diagnosis And Testing >> Seats >> Symptom Chart >> Symptom Chart

Symptom Chart

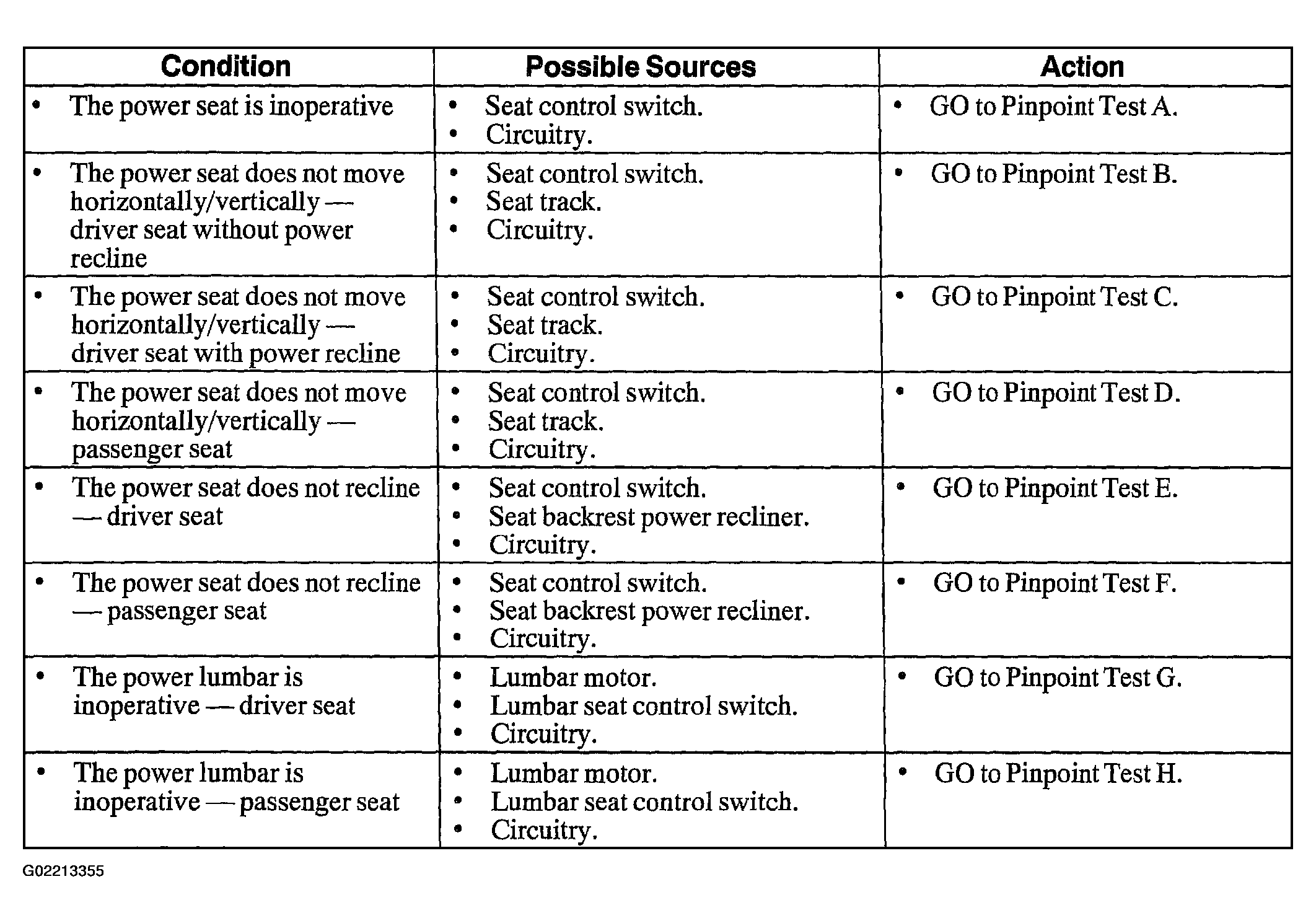

Fig 1: Symptom Chart

G02213355

Courtesy of FORD MOTOR CO.
