Pinpoint Test B: The Power Seat Does Not Move Horizontally/Vertically - Driver Seat Without Power Recline

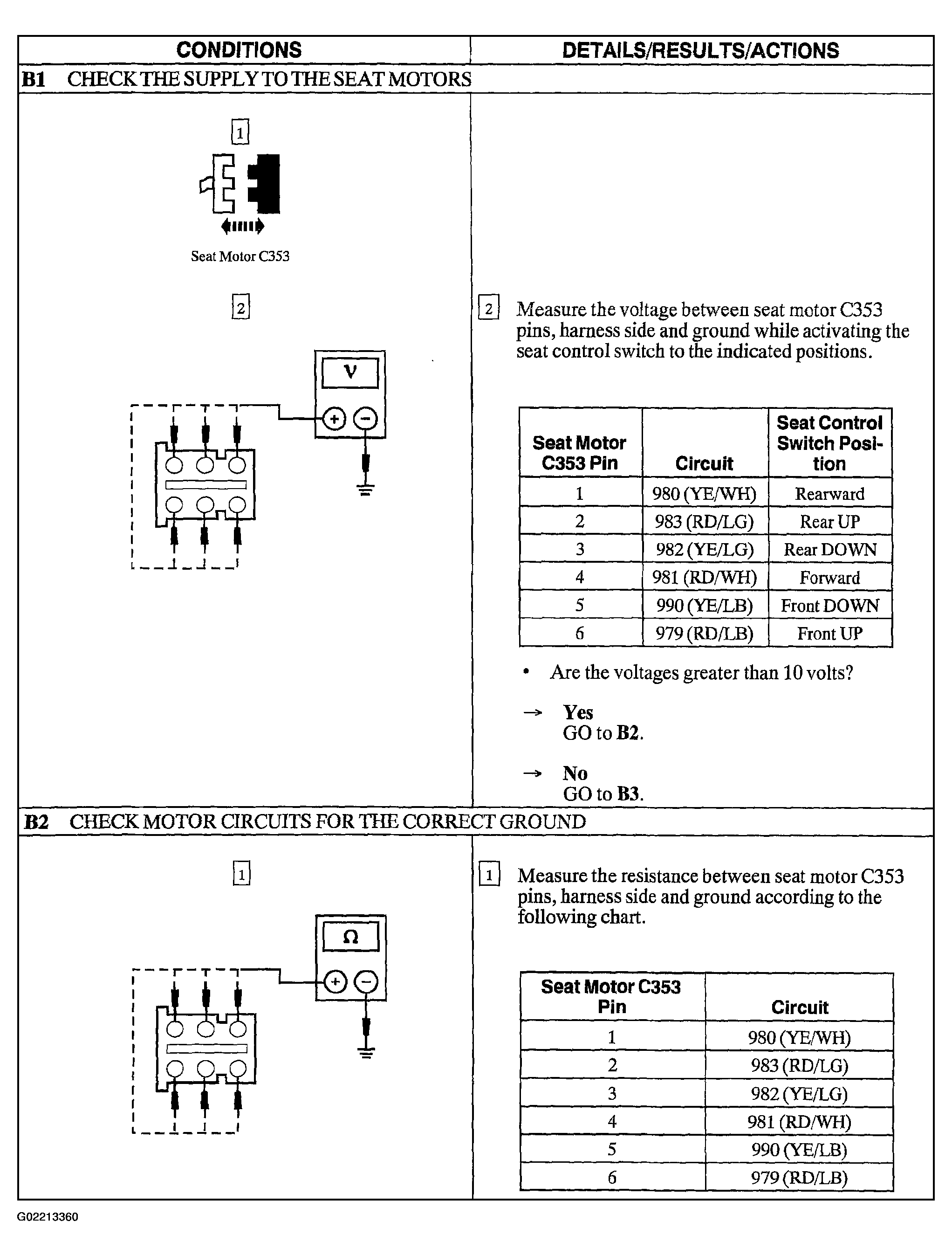

Fig 1: Pinpoint Test B: Power Seat Not Move Horizontally/Vertically - Driver Seat Without Power Recline (B1 To B2)
G02213360Courtesy of FORD MOTOR CO.

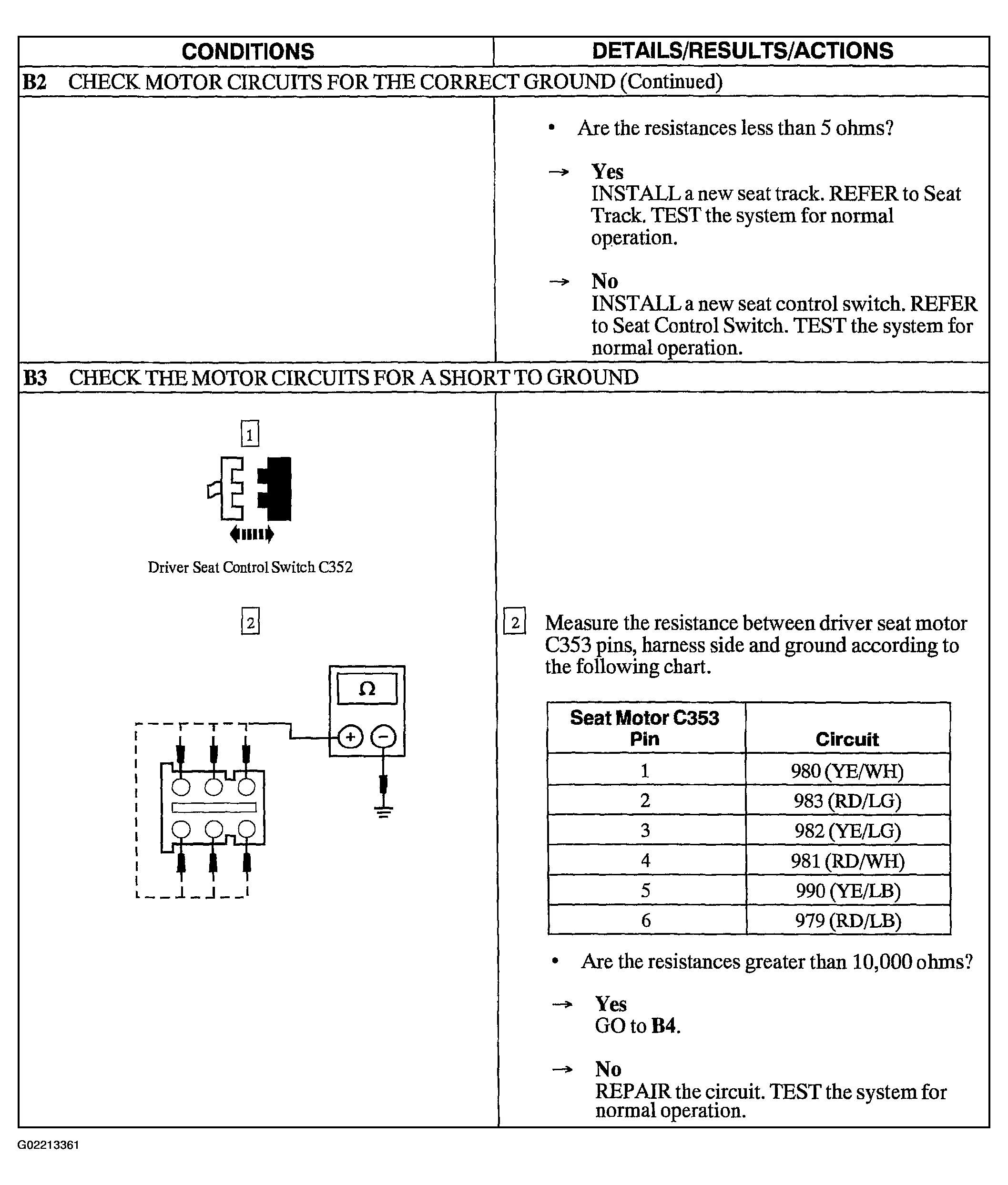

Fig 2: Pinpoint Test B: Power Seat Not Move Horizontally/Vertically - Driver Seat Without Power Recline (B2 To B3)
G02213361Courtesy of FORD MOTOR CO.

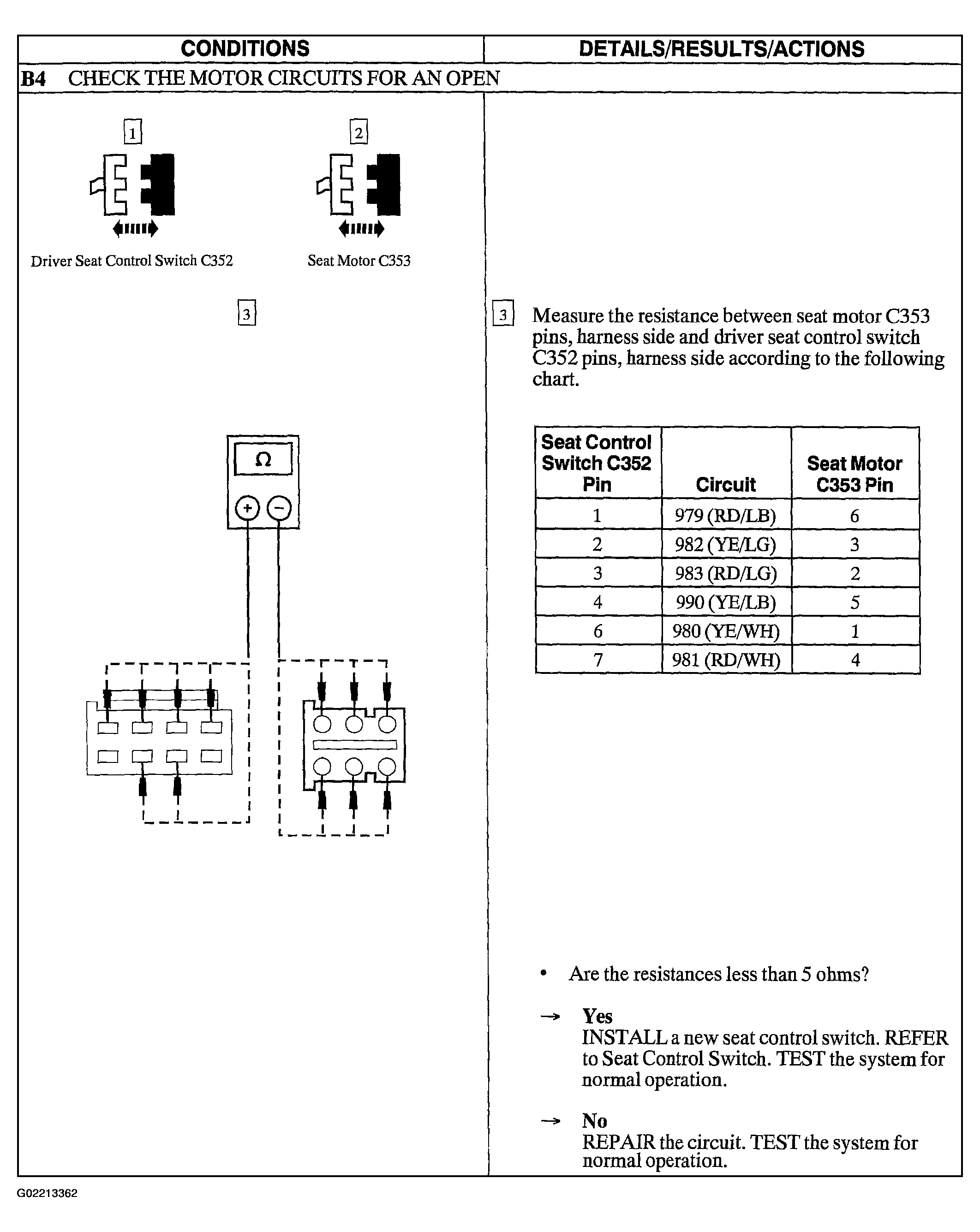

Fig 3: Pinpoint Test B: Power Seat Not Move Horizontally/Vertically - Driver Seat Without Power Recline (B4)
G02213362Courtesy of FORD MOTOR CO.
