Pinpoint Test E: The Power Seat Does Not Recline - Driver Seat

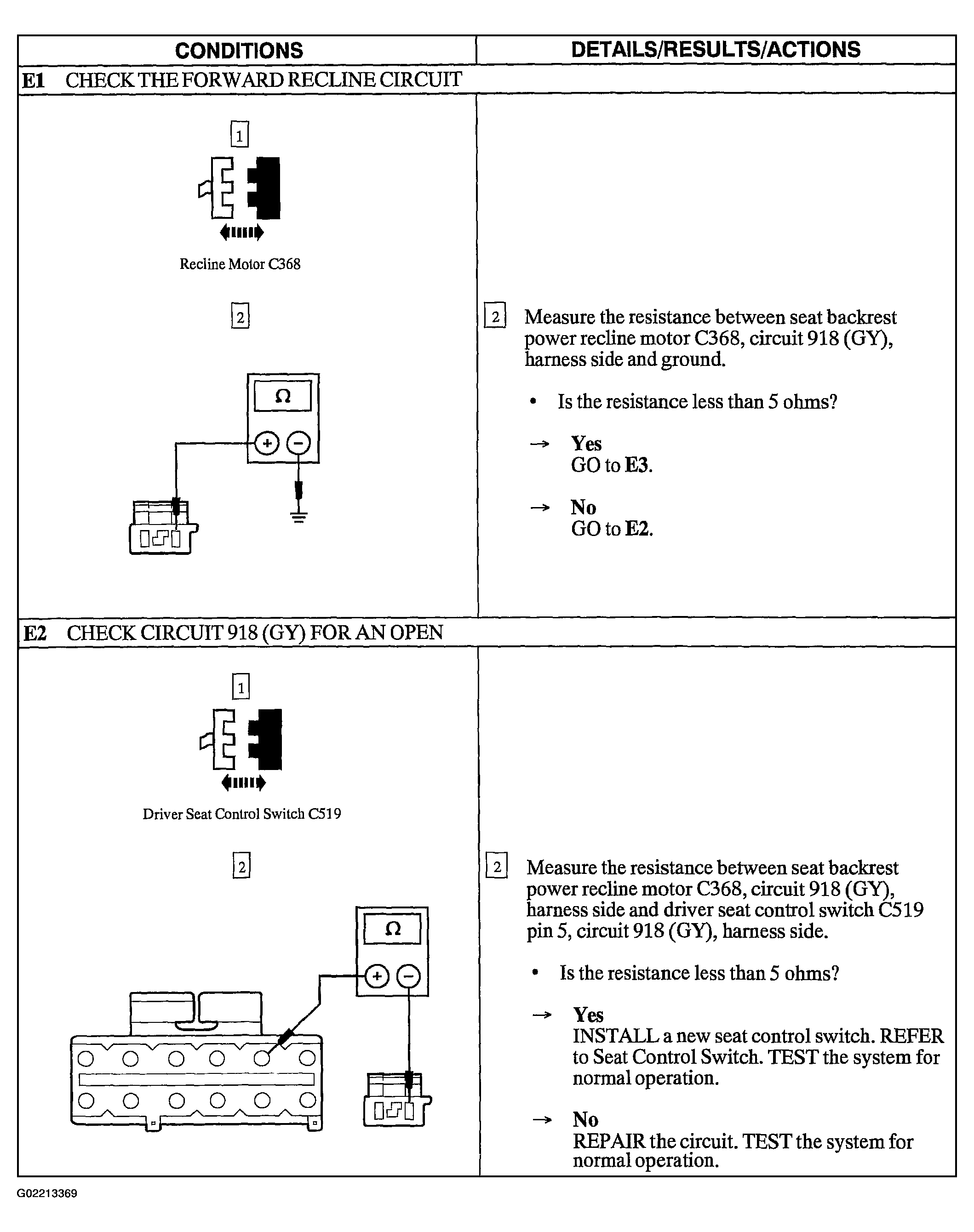

Fig 1: Pinpoint Test E: Power Seat Not Recline - Driver Seat (E1 To E2)

Courtesy of FORD MOTOR CO.

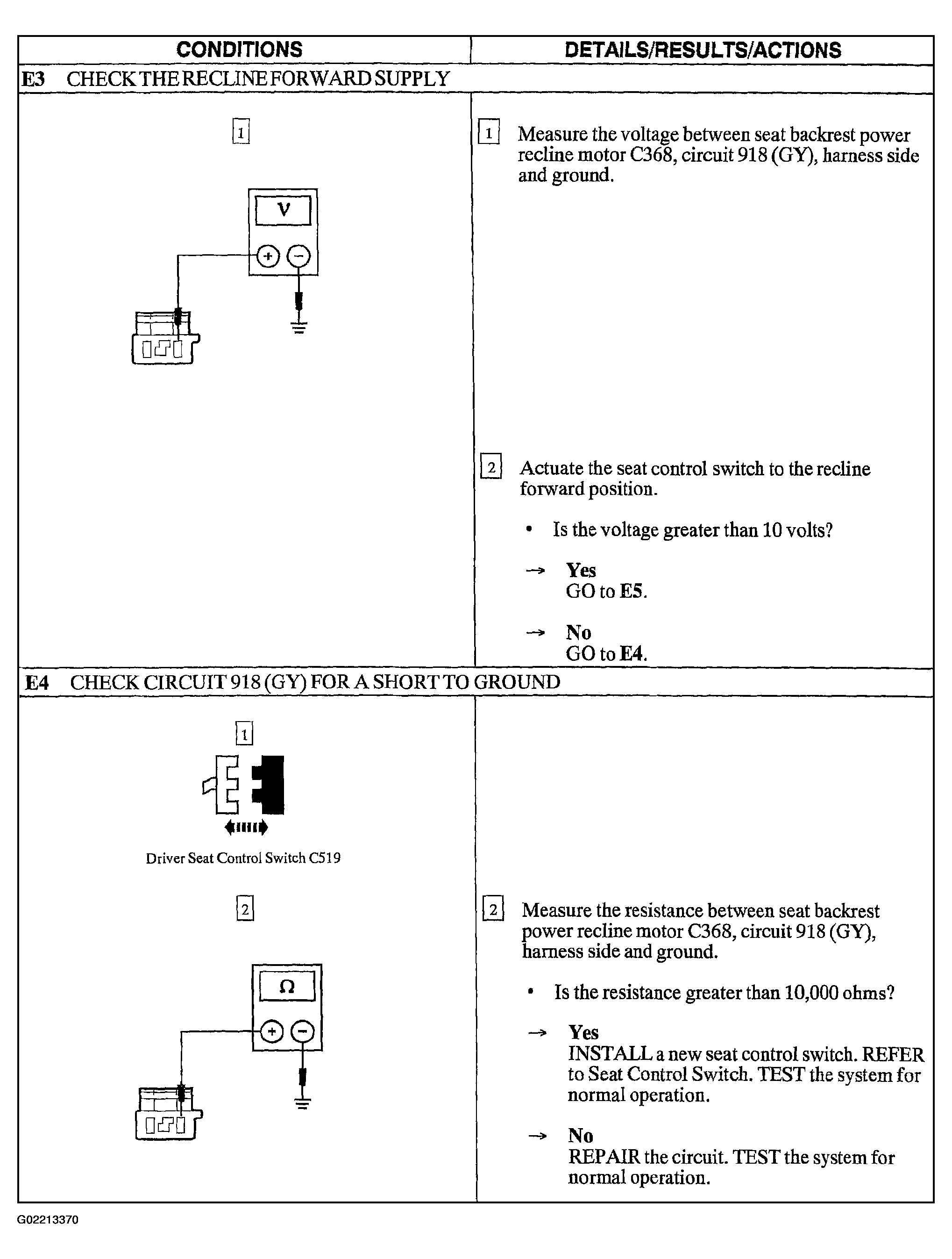

Fig 2: Pinpoint Test E: Power Seat Not Recline - Driver Seat (E3 To E4)

Courtesy of FORD MOTOR CO.

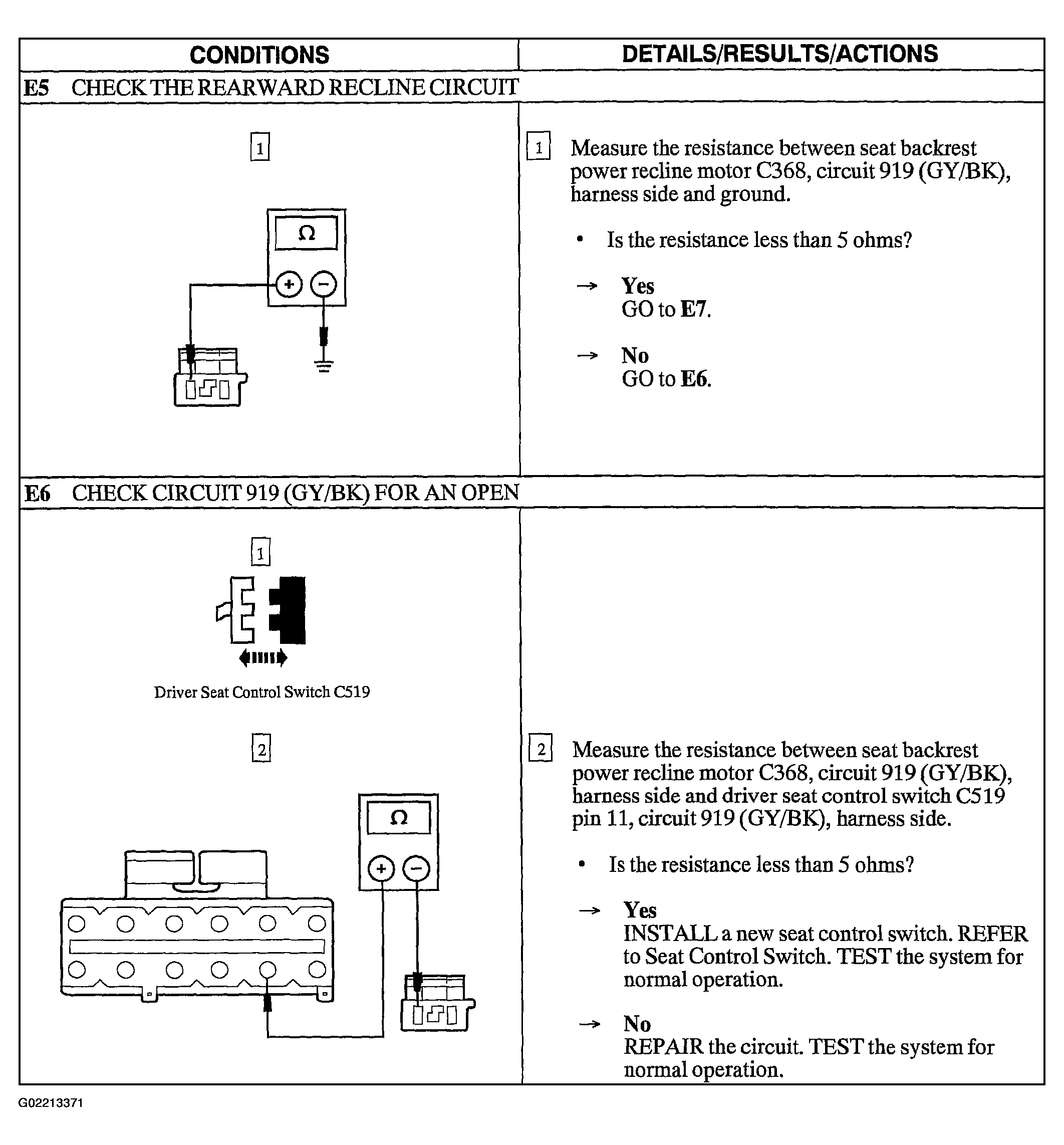

Fig 3: Pinpoint Test E: Power Seat Not Recline - Driver Seat (E5 To E6)

Courtesy of FORD MOTOR CO.

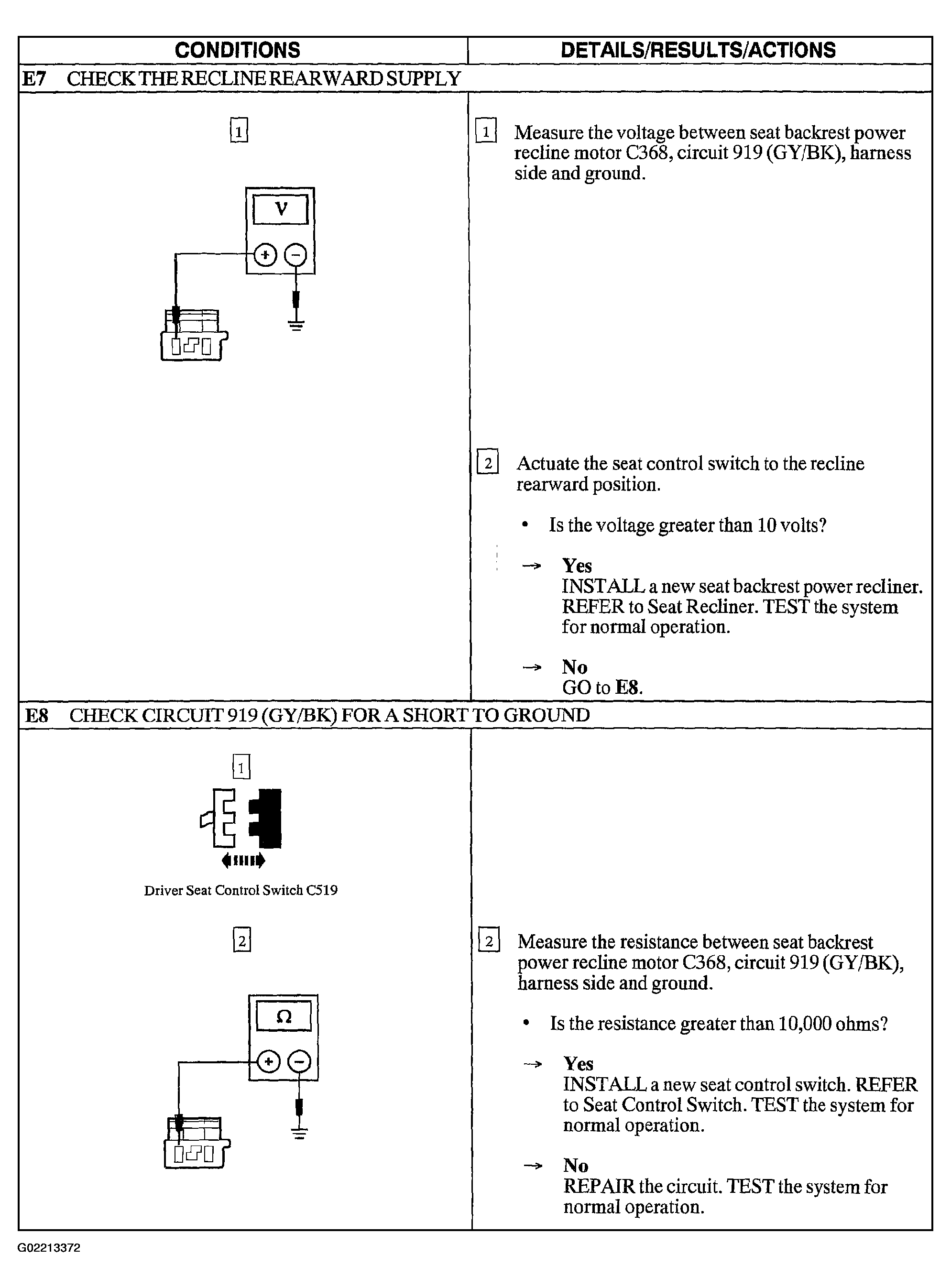

Fig 4: Pinpoint Test E: Power Seat Not Recline - Driver Seat (E7 To E8)

Courtesy of FORD MOTOR CO.
