Vacuum Schematic - Electronic Automatic Temperature Control
Vacuum Schematic - Electronic Automatic Temperature Control

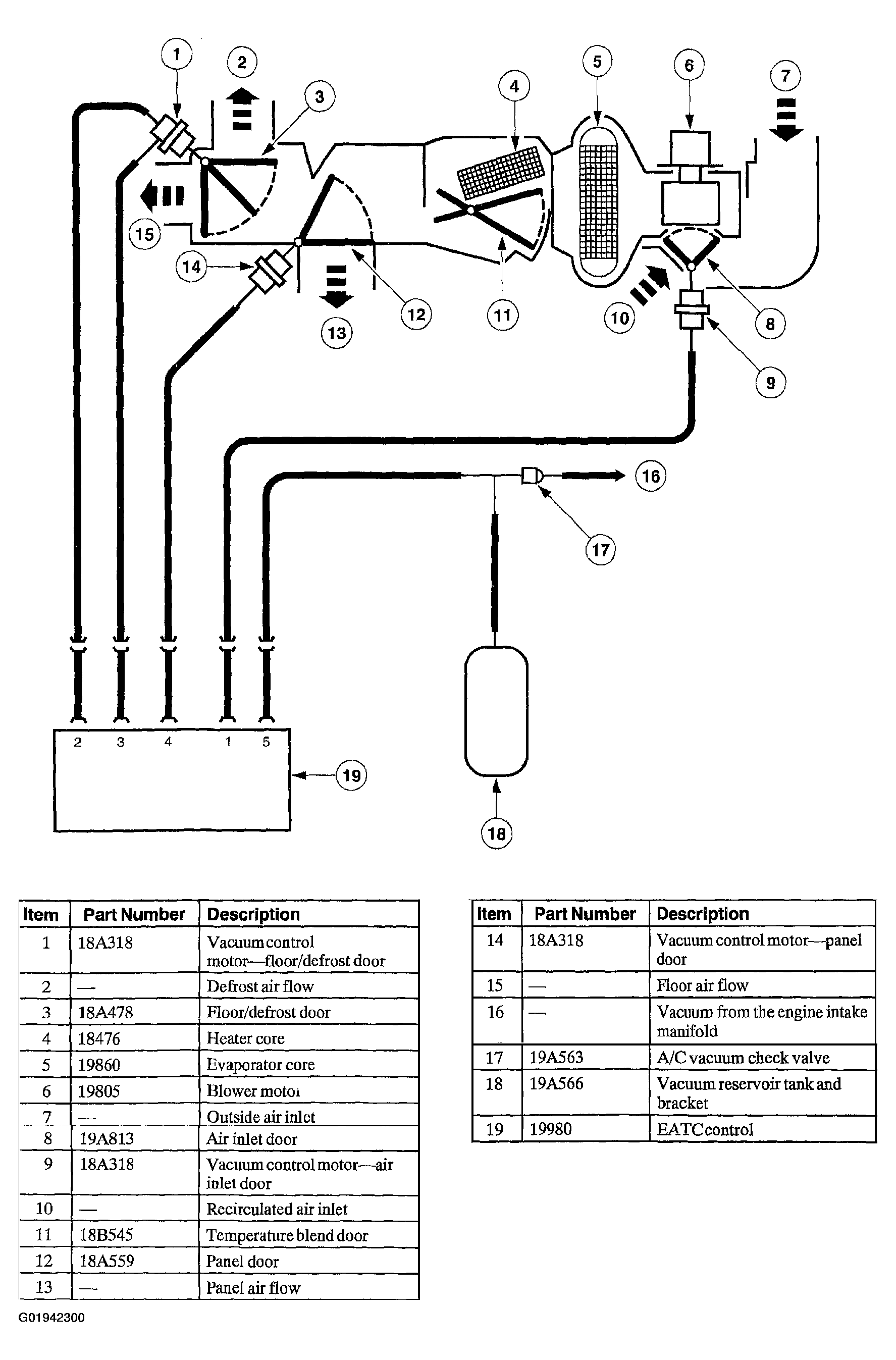

Fig 1: Identifying Vacuum Schematic - Electronic Automatic Temperature Control
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
