Pinpoint Test G: The Power Lumbar Is Inoperative - Driver Seat

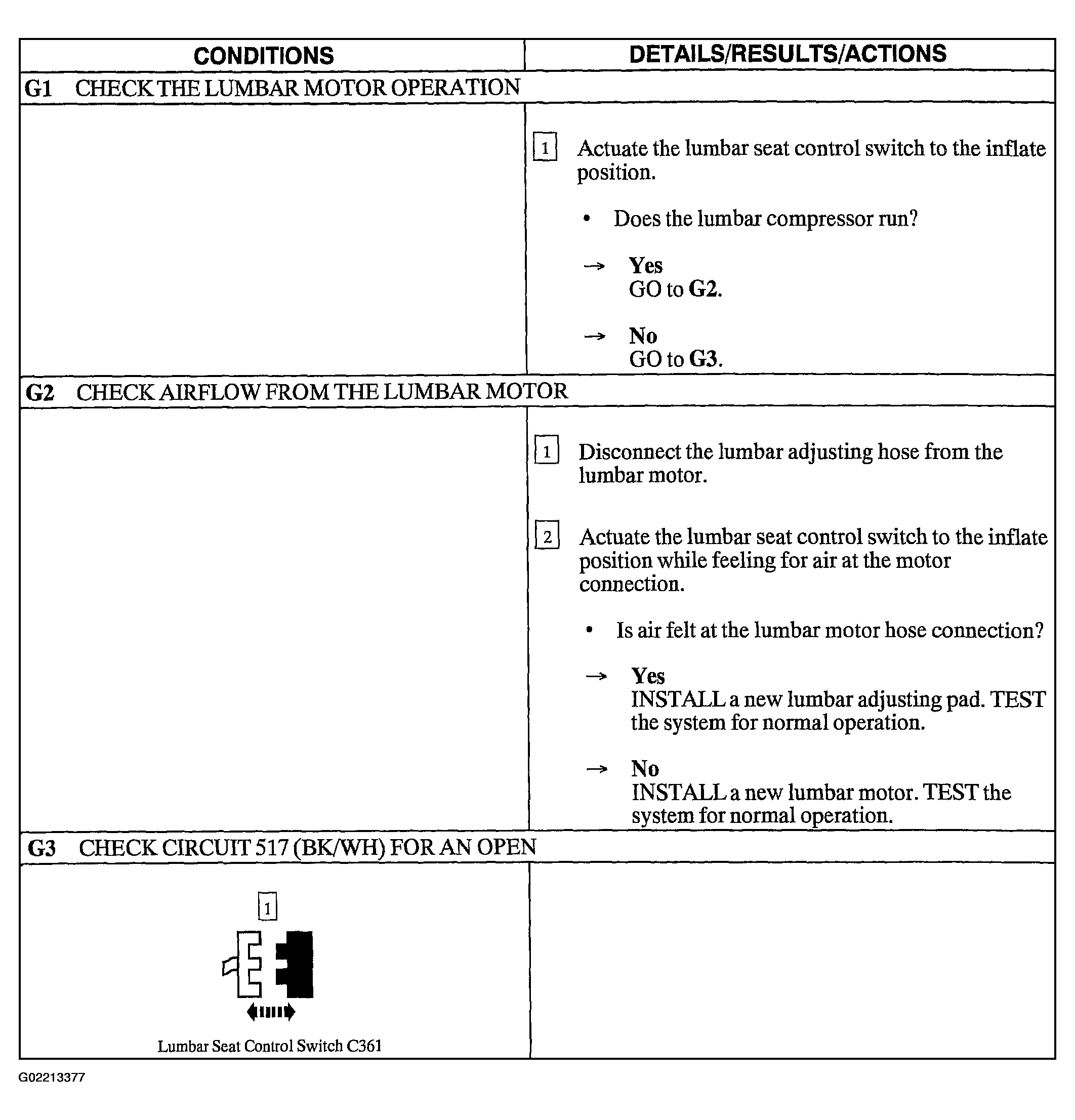

Fig 1: Pinpoint Test G: Power Lumbar Is Inoperative - Driver Seat (G1 To G3)

Courtesy of FORD MOTOR CO.

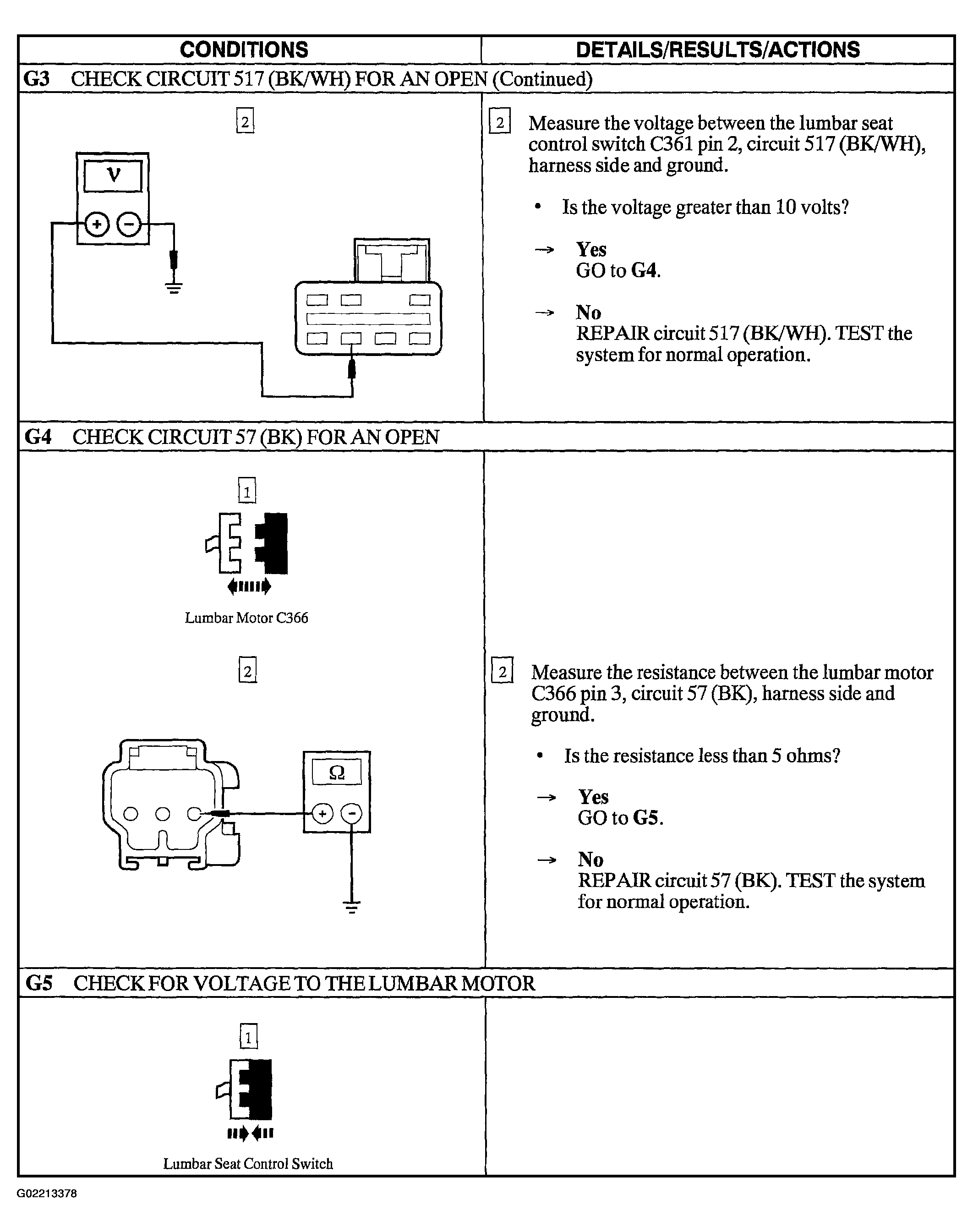

Fig 2: Pinpoint Test G: Power Lumbar Is Inoperative - Driver Seat (G3 To G5)

Courtesy of FORD MOTOR CO.

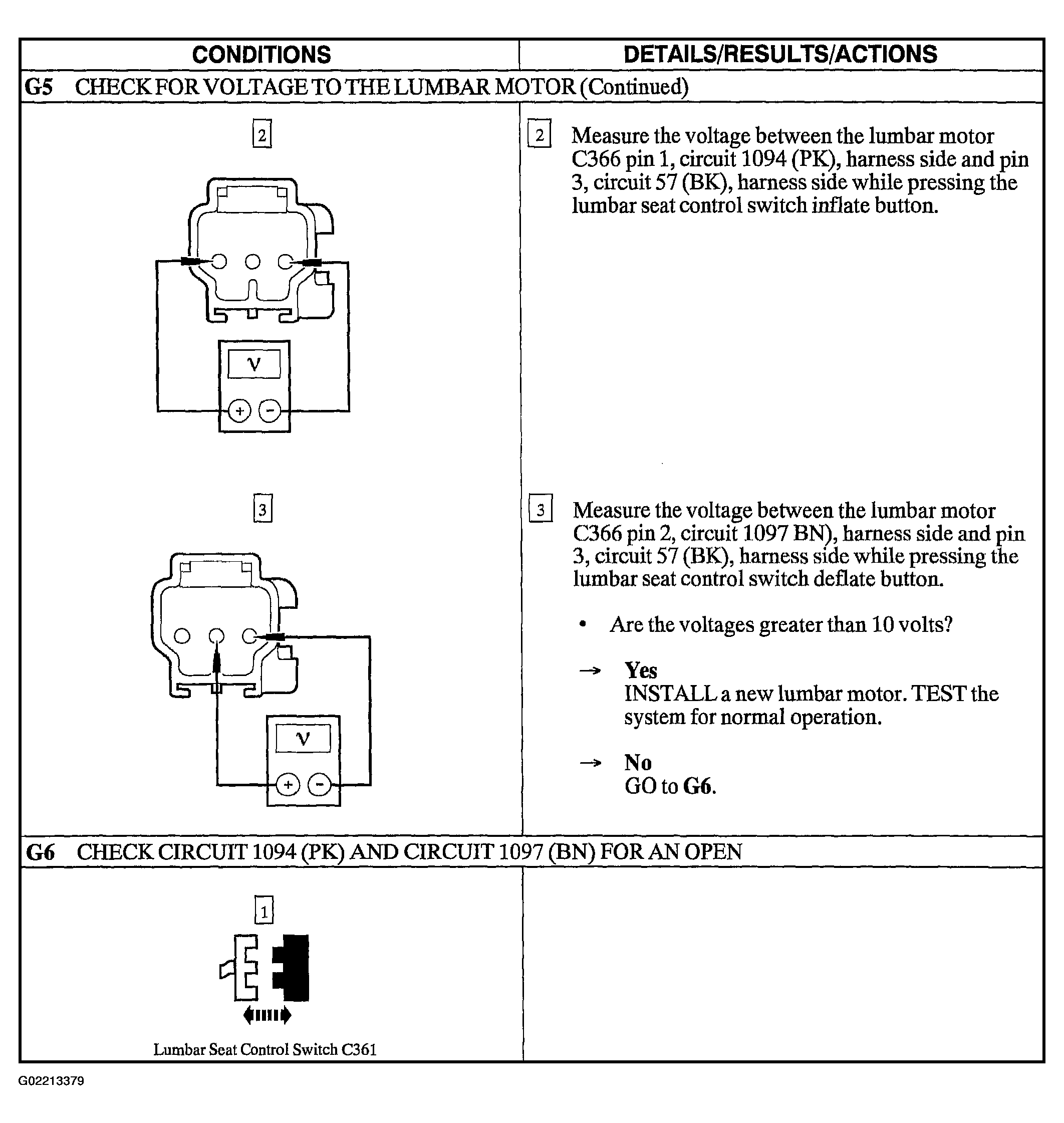

Fig 3: Pinpoint Test G: Power Lumbar Is Inoperative - Driver Seat (G5 To G6)

Courtesy of FORD MOTOR CO.

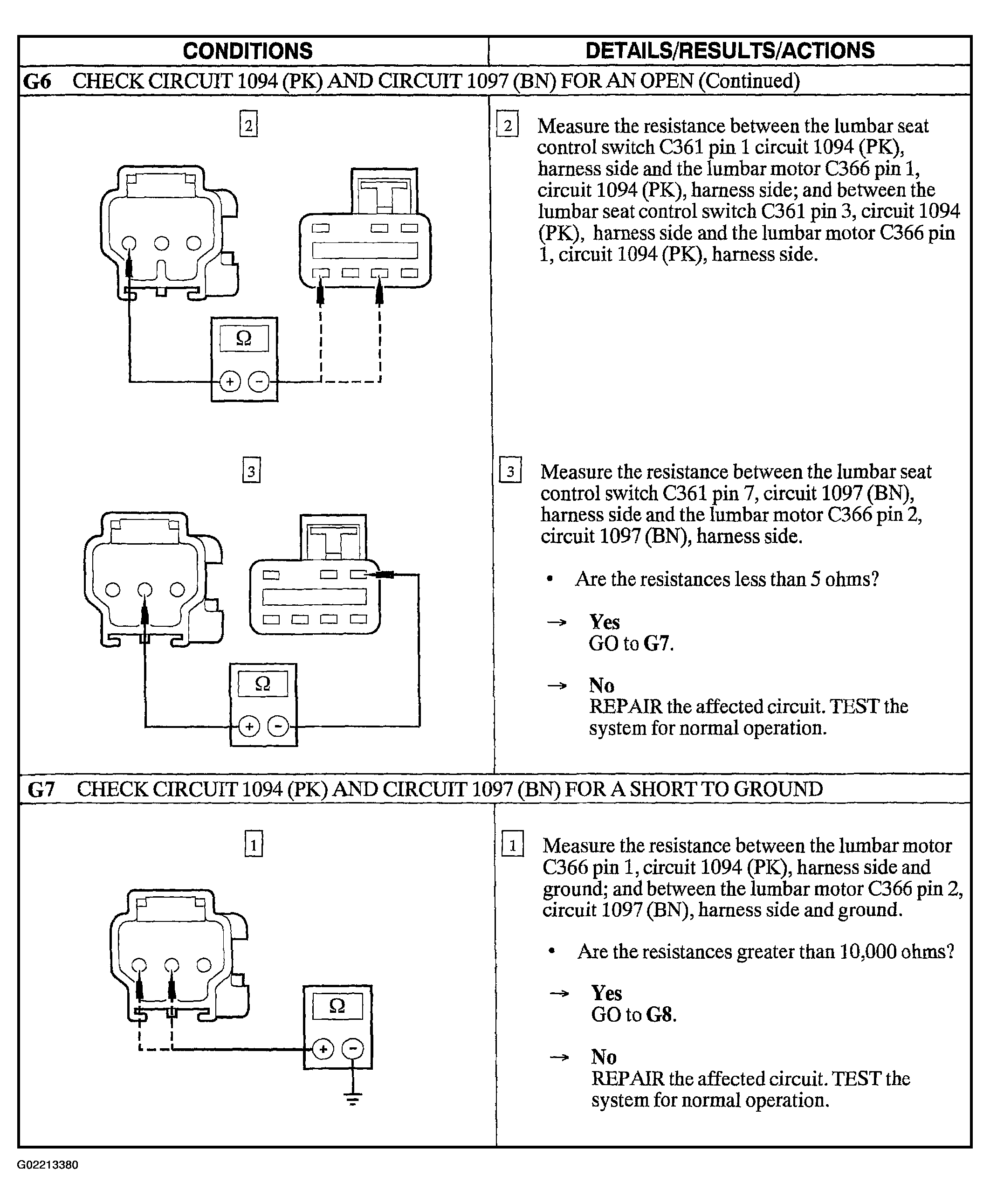

Fig 4: Pinpoint Test G: Power Lumbar Is Inoperative - Driver Seat (G6 To G7)

Courtesy of FORD MOTOR CO.

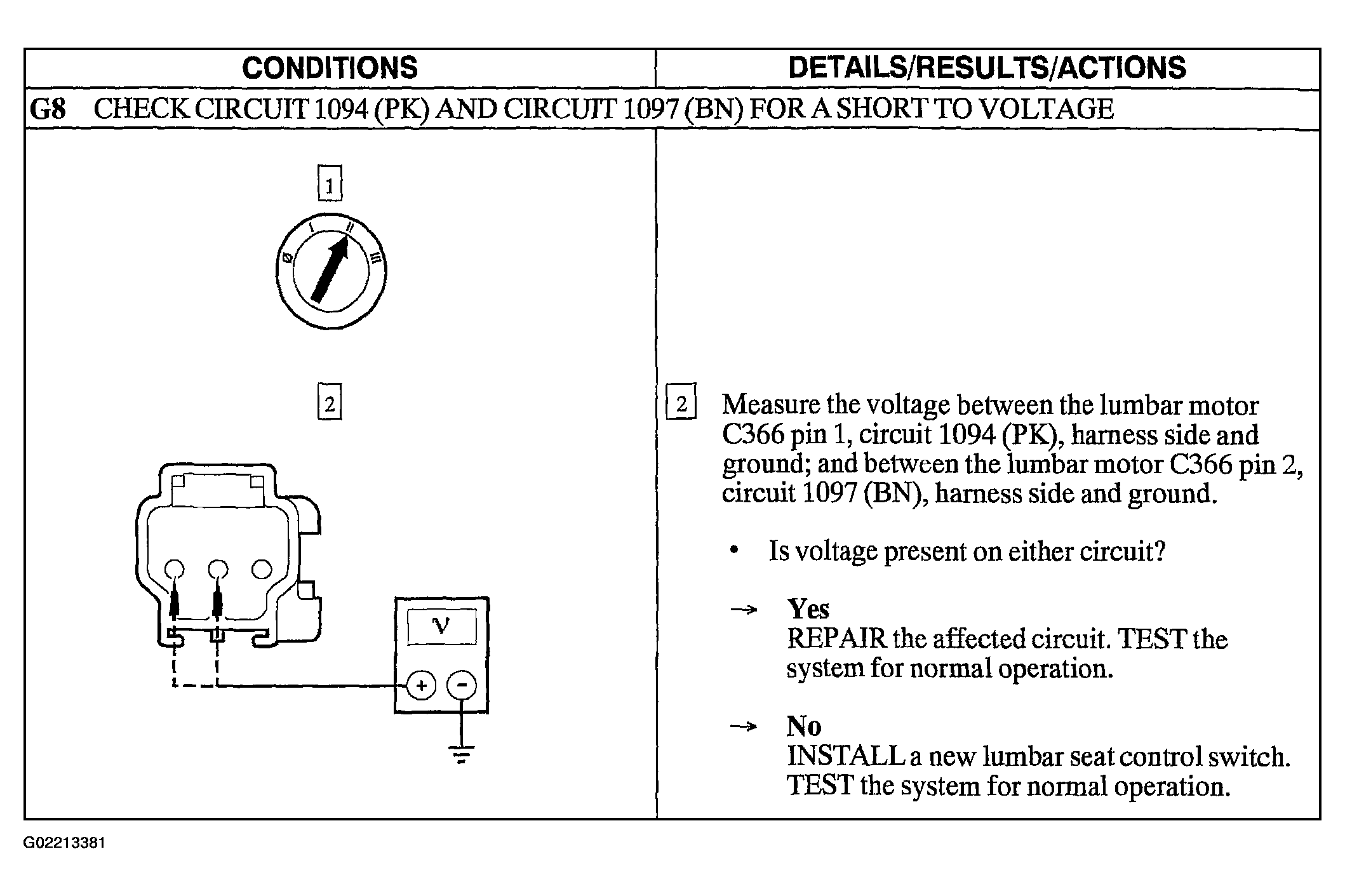

Fig 5: Pinpoint Test G: Power Lumbar Is Inoperative - Driver Seat (G8)

Courtesy of FORD MOTOR CO.
