Vacuum Applications Chart - Electronic Automatic Temperature Control
Vacuum Applications Chart - Electronic Automatic Temperature Control

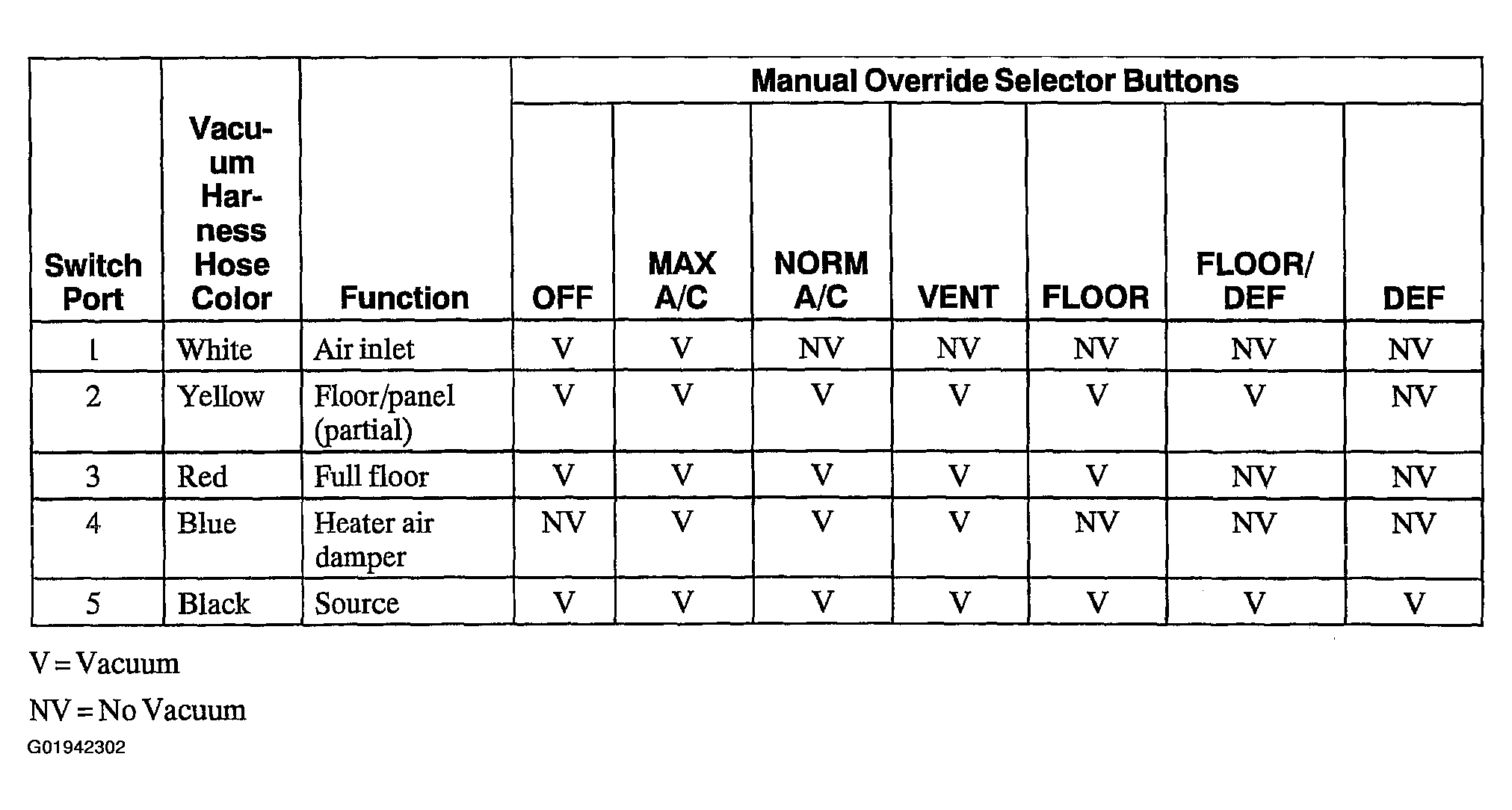

Fig 1: Identifying Vacuum Applications Chart - Electronic Automatic Temperature Control
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
