Pinpoint Test A: DTC B1249 - Blend Door Failure Or Short

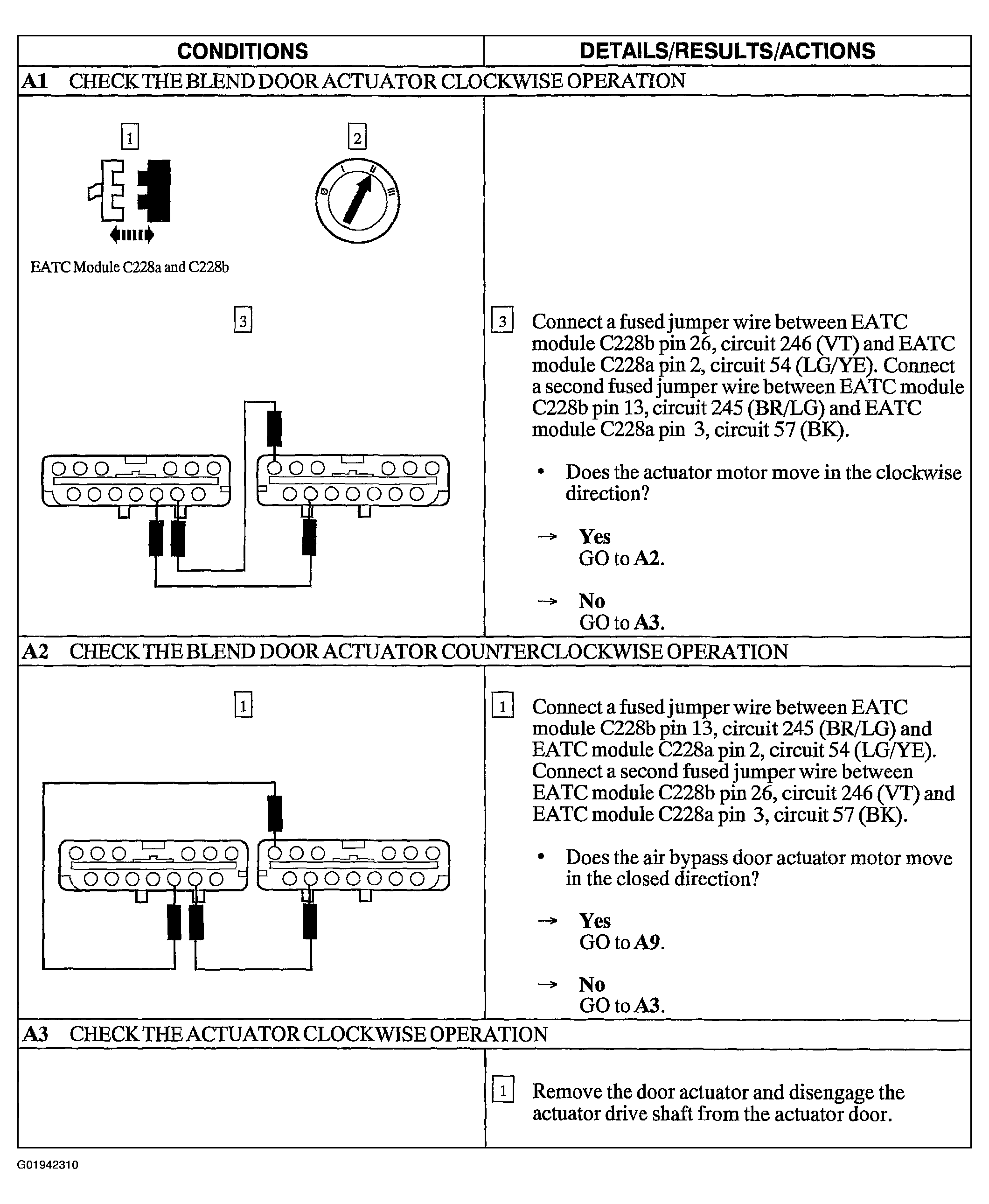

Fig 1: Pinpoint Test A: DTC B1249 - Blend Door Failure Or Short (Steps A1-A3)

Courtesy of FORD MOTOR CO.

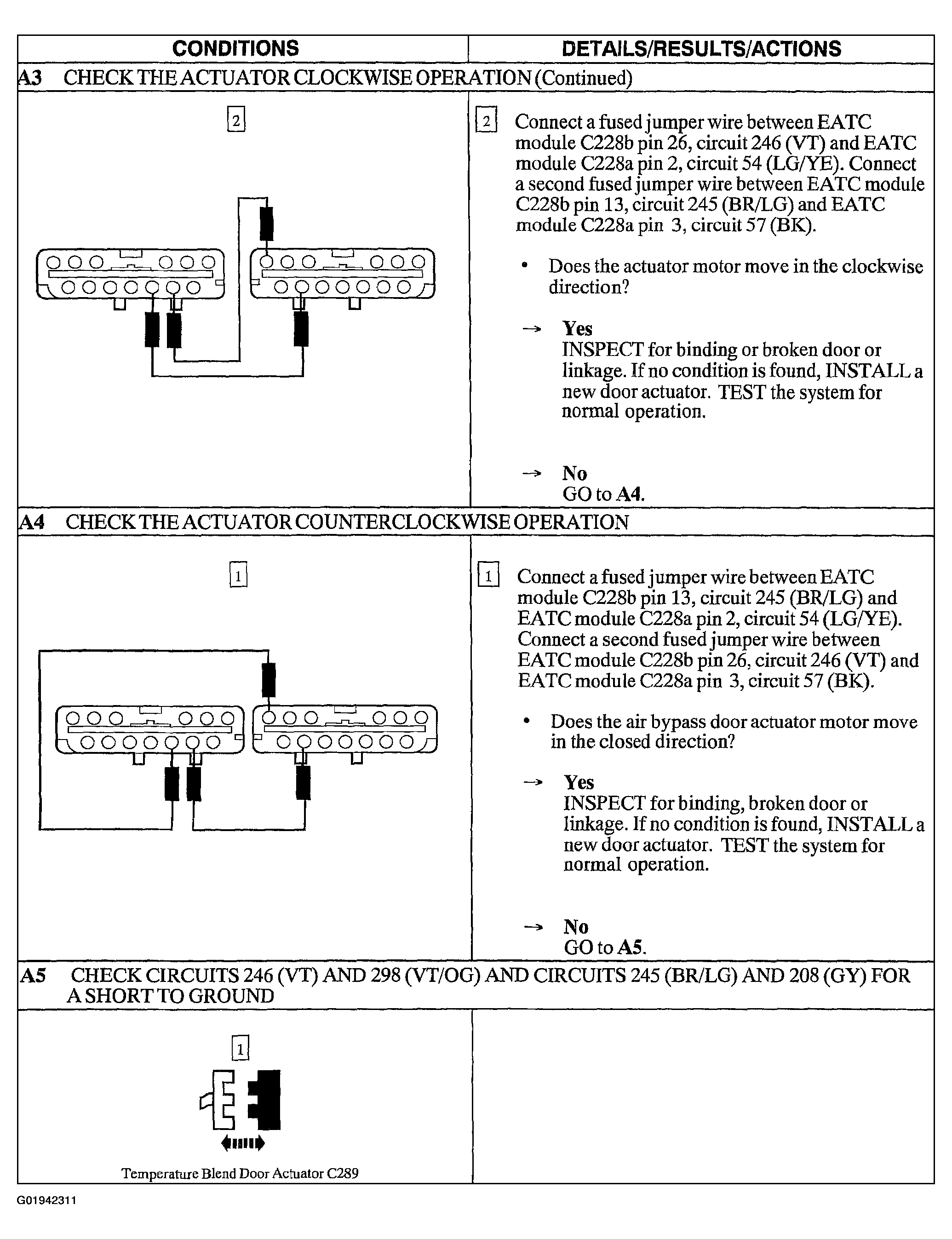

Fig 2: Pinpoint Test A: DTC B1249 - Blend Door Failure Or Short (Steps A3 Cont.-A5)

Courtesy of FORD MOTOR CO.

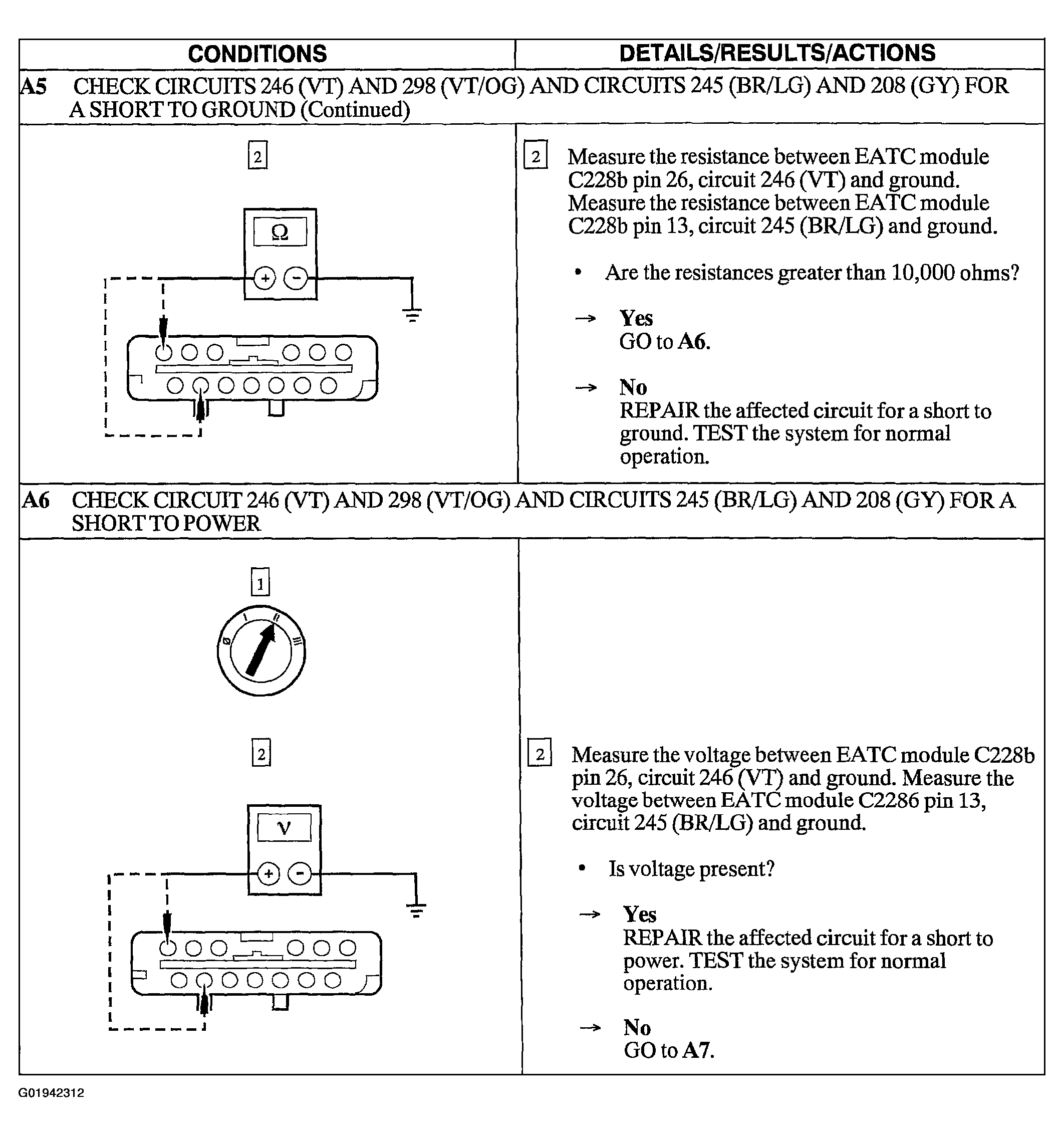

Fig 3: Pinpoint Test A: DTC B1249 - Blend Door Failure Or Short (Steps A5 Cont.-A6)

Courtesy of FORD MOTOR CO.

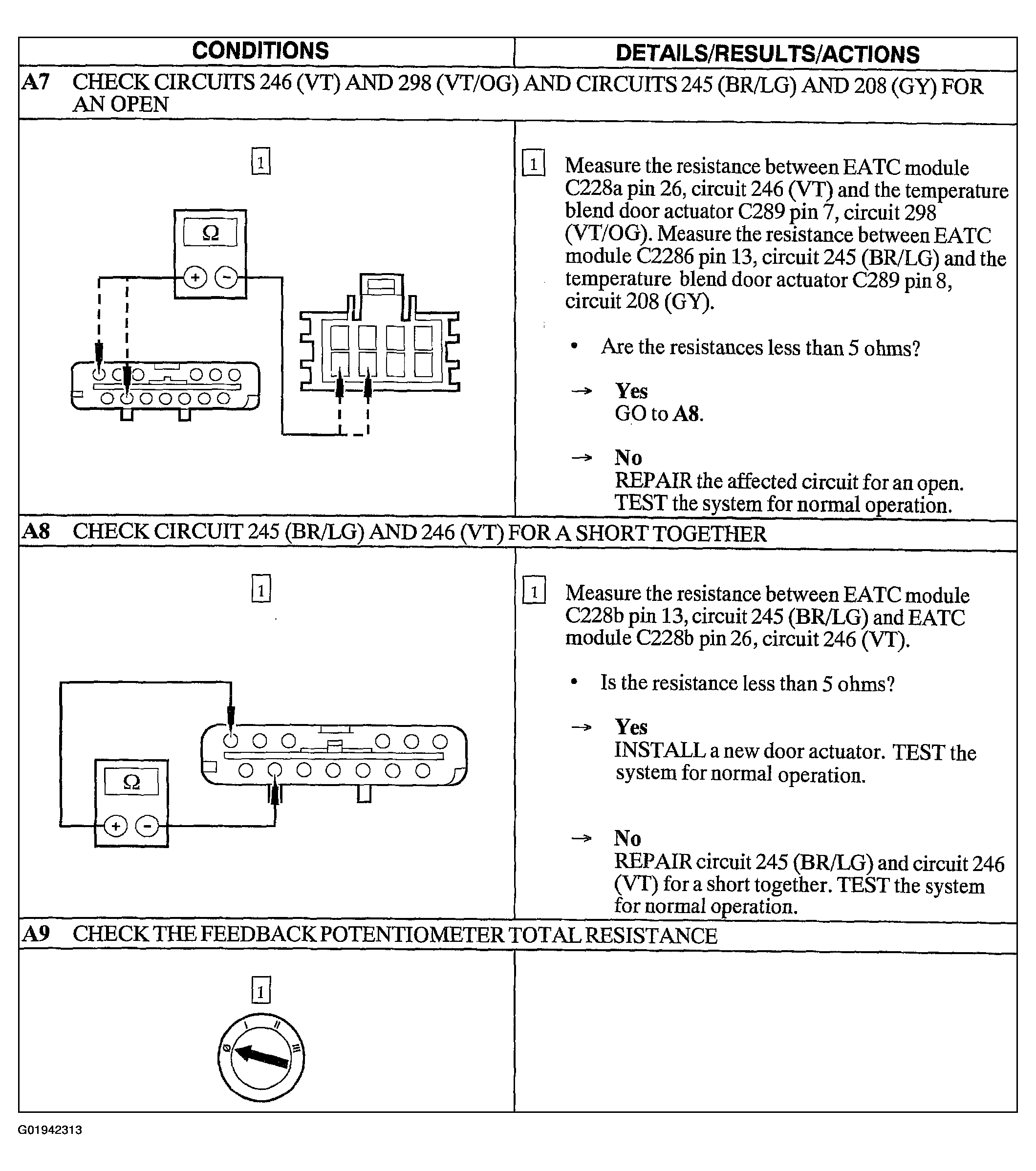

Fig 4: Pinpoint Test A: DTC B1249 - Blend Door Failure Or Short (Steps A7-A9)

Courtesy of FORD MOTOR CO.

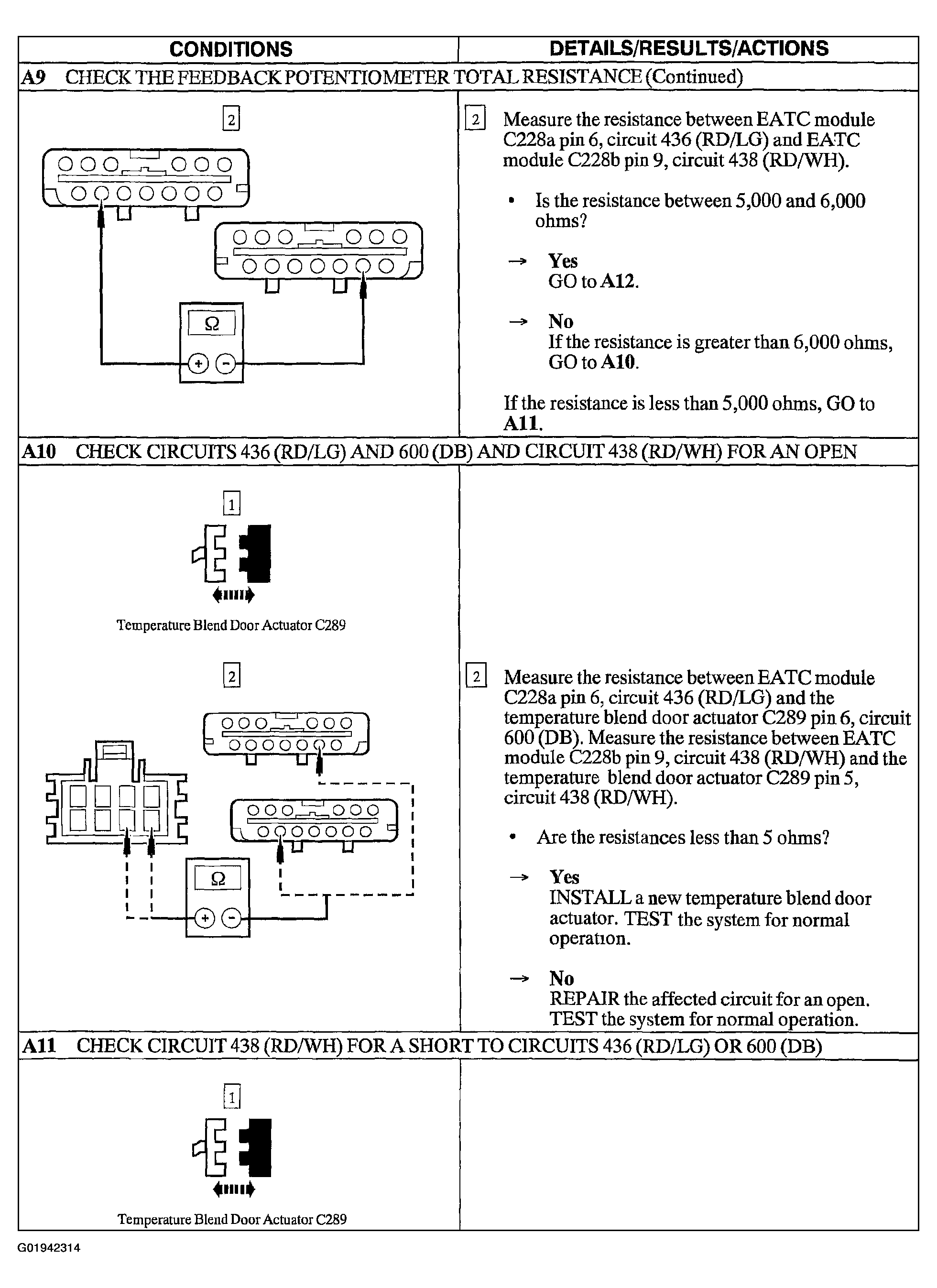

Fig 5: Pinpoint Test A: DTC B1249 - Blend Door Failure Or Short (Steps A9 Cont.-A11)

Courtesy of FORD MOTOR CO.

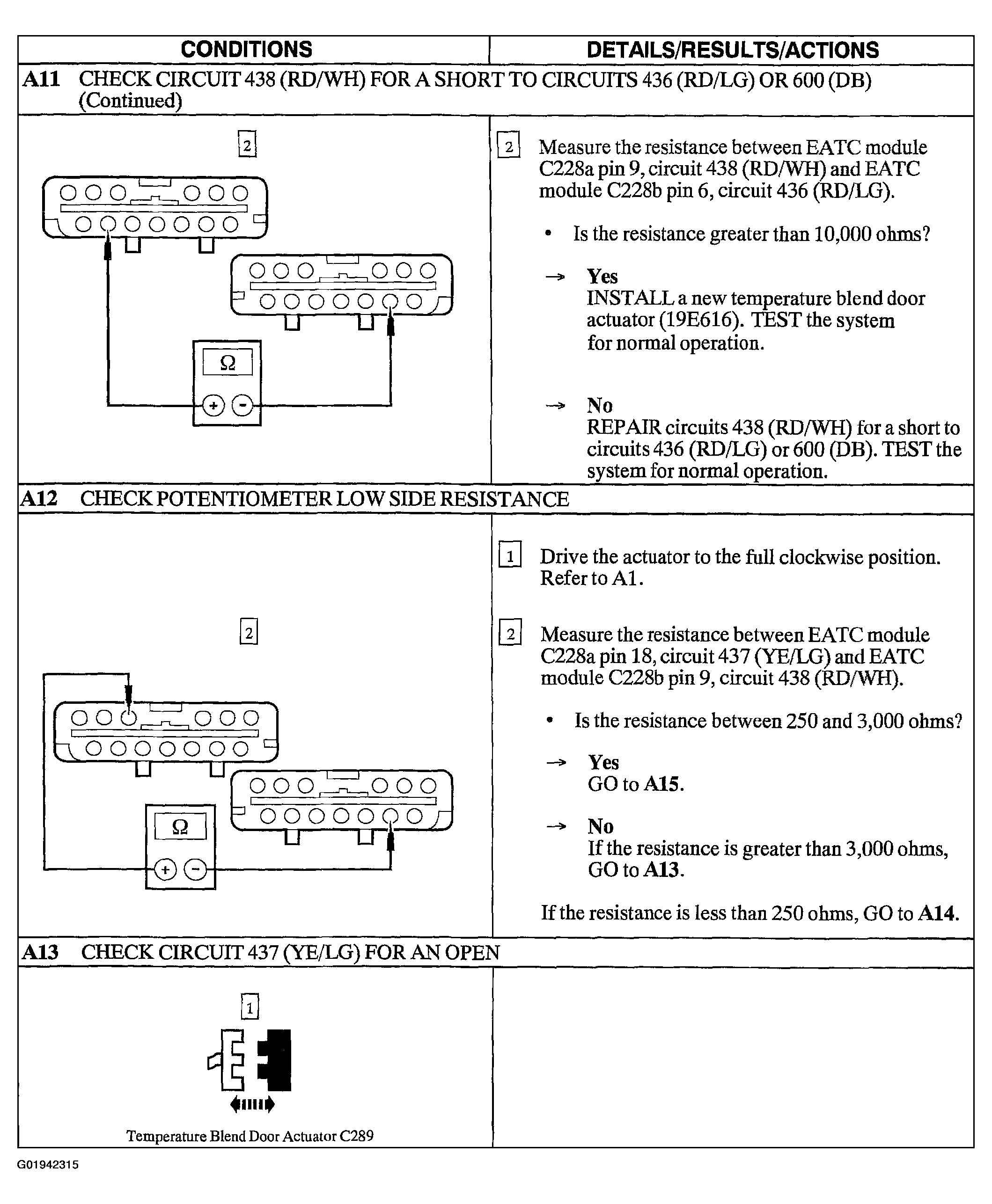

Fig 6: Pinpoint Test A: DTC B1249 - Blend Door Failure Or Short (Steps A11 Cont.-A13)

Courtesy of FORD MOTOR CO.

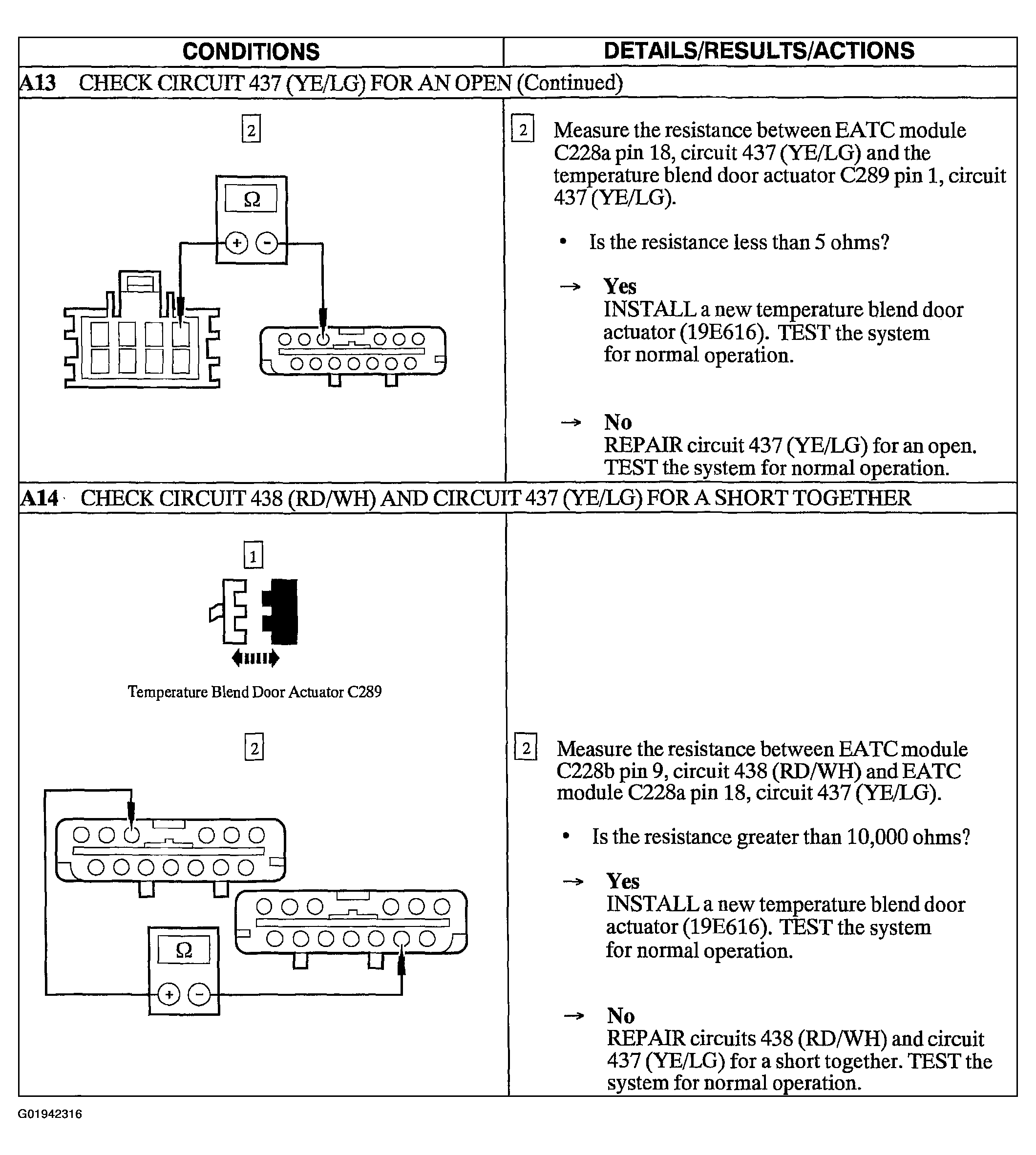

Fig 7: Pinpoint Test A: DTC B1249 - Blend Door Failure Or Short (Steps A13 Cont.-A14)

Courtesy of FORD MOTOR CO.

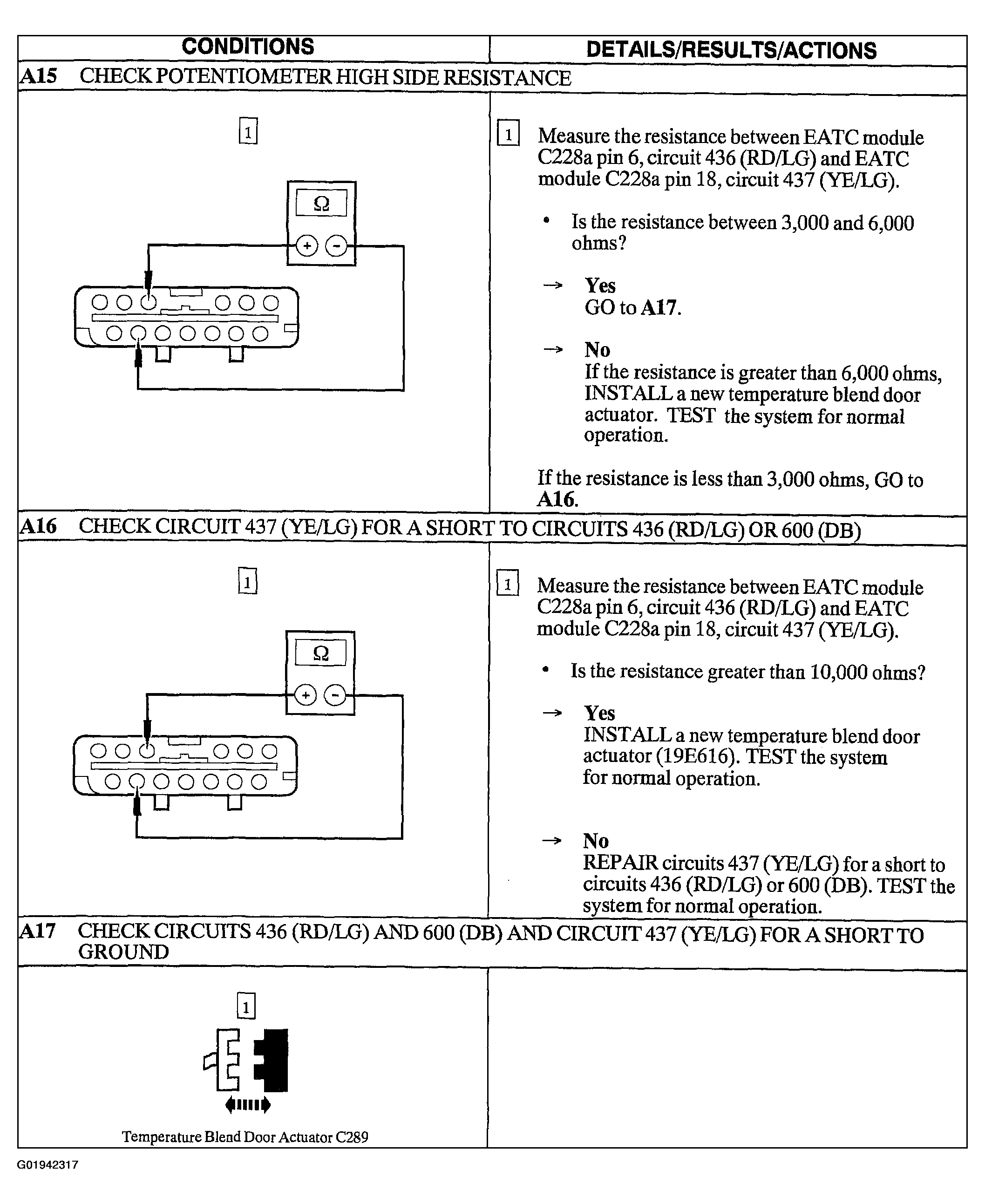

Fig 8: Pinpoint Test A: DTC B1249 - Blend Door Failure Or Short (Steps A15-A17)

Courtesy of FORD MOTOR CO.

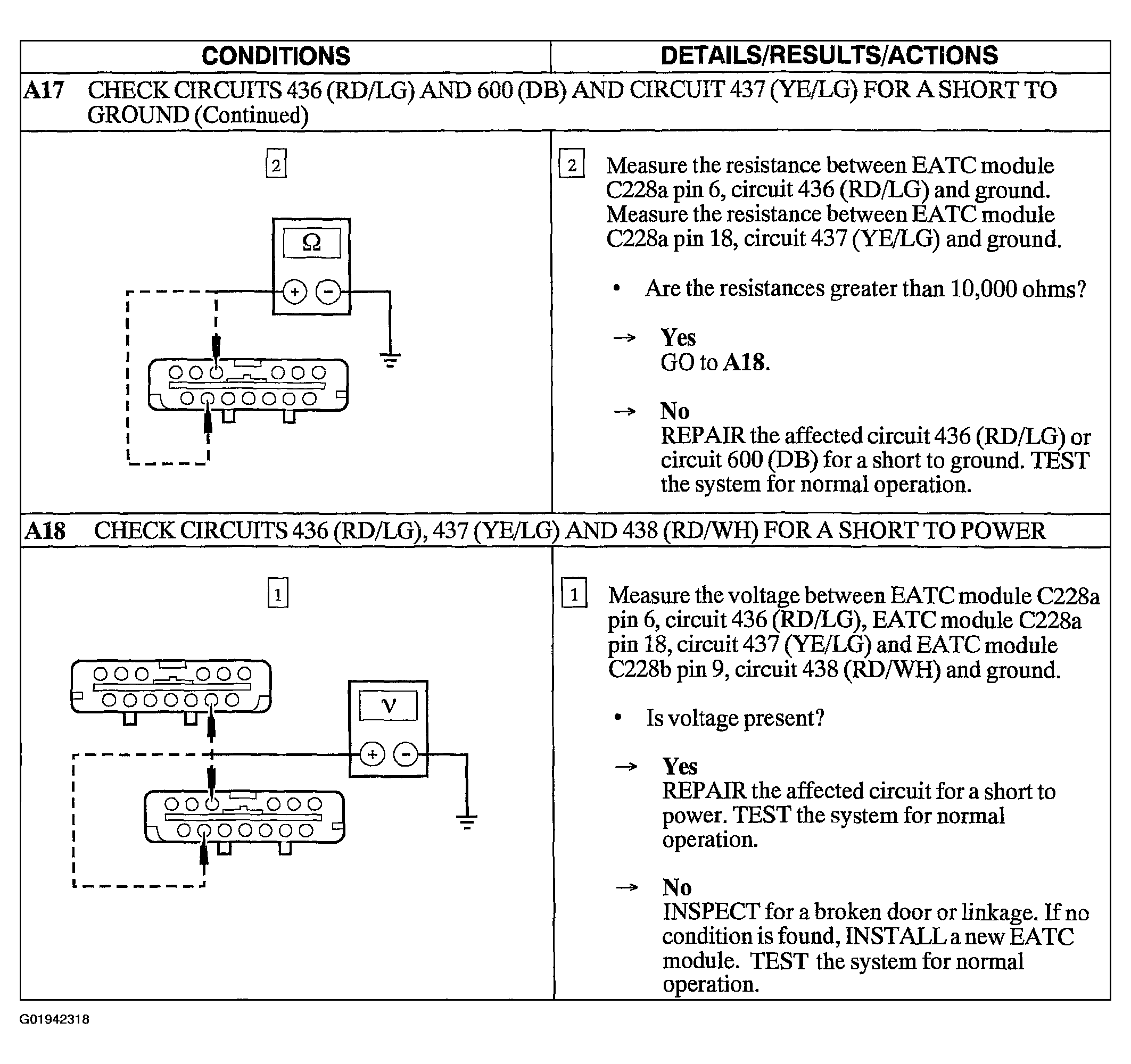

Fig 9: Pinpoint Test A: DTC B1249 - Blend Door Failure Or Short (Steps A17 Cont.-A18)

Courtesy of FORD MOTOR CO.
